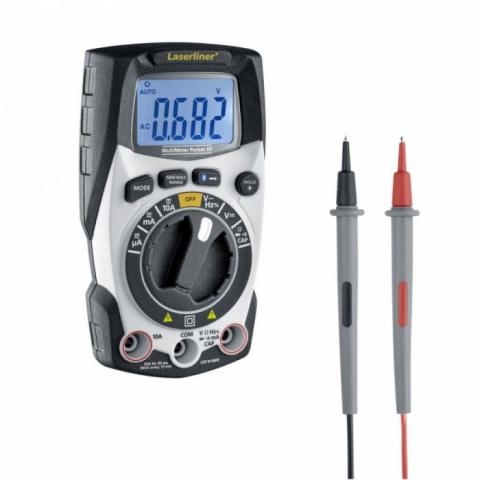

Laserliner MultiMeter Pocket XP - Accurate and robust professional multimeter
The robust, professional multimeter enables accurate measurements of voltage, current, resistance, capacitance, frequency, and sensitivity. The device features automatic range switching and manual range preselection, and is suitable for use in complete building installations. The measured values can be transferred to a smartphone via the digital connection interface.
Special features
- Precise and robust professional multimeter in a compact design with Digital Connection interface
- Accurately measures voltage, current, resistance, capacitance, frequency, and sensitivity
- With automatic switching between and manual preselection of ranges
- Automatic continuity tester
- Diode test for function and polarity determination
- Digital Connection interface for transferring measurement data
- High display resolution of 4000 counts for the precise determination of all measured quantities
- Wide bandwidth for frequency measurement from 10 Hz to 10 kHz
- Min./max. function
- Compact, impact-resistant housing with stand and smooth-running selector switch
- Large, easy-to-read display LC display
Technical data
- Voltage range: V/DC: 400 mV…4…40…400 V / 600 V ± (1.0% / 1.2%) V/AC: 4…40…400 V / 600 V ± (1.0% / 1.2%)
- Current range: A/DC: 400 μA / 4…40…400 mA / 10 A ± (1.0% / 1.5% / 2.5%) A/AC: 400 μA / 4…40…400 mA / 10 A ± (2.0% / 2.5% / 3.0%)
- Resistance range: 400 Ω / 4…40…400 kΩ…4 MΩ / 40 MΩ ± (1.0% / 1.5% / 3.5%)
- Capacity range: 40 nF / 400 nF…4…40 μF / 400 μF / 4000 μF ± (5.0% / 3.0% / 4.0% / 5.0%)
- Frequency range: 10…100…1000 Hz…10 kHz / ± 1.0%
- Protection range: 1.0…99% / ± 1.2%
Supplied as standard
- MultiMeter Pocket XP
- 2 measuring points
- Transport bag
- Batteries
