Laserliner082.078A ThermiVisualizer Pro Thermal Imaging Camera

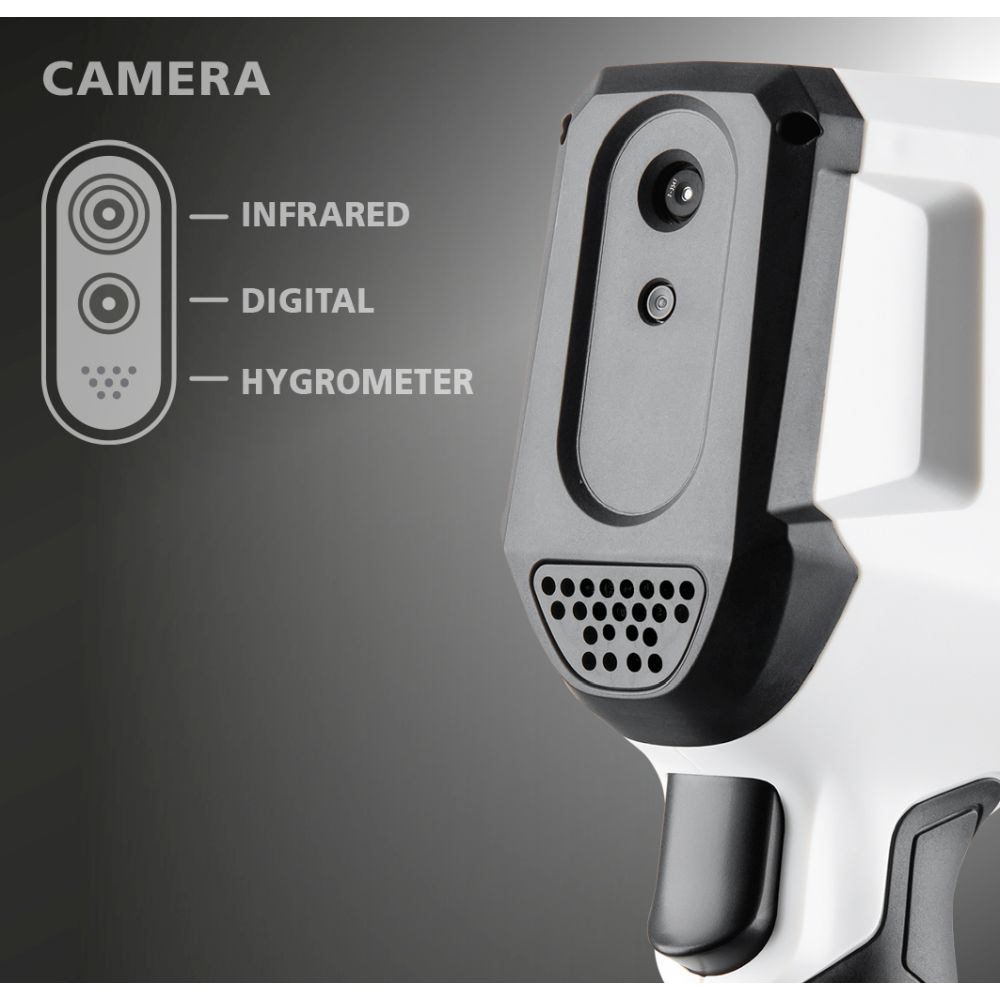

This innovative thermal imaging camera measures surface temperatures, relative humidity, ambient temperature, and dew point. It reliably visualizes temperature curves, thermal bridges, and condensation. Visual dew point measurement is made possible by a combination of a thermal imaging camera, digital camera, and hygrometer. The camera generates reliable thermal images with accurate marking of surfaces that have reached the dew point or have dropped below it, ideal for critical inspections of interior spaces. In addition to building inspections, there are countless application possibilities, such as work on electrical systems, machinery, heating and ventilation systems, and locating heat sources or cold spots.
Special features
- Reliable visualization of temperature curves, energy loss, thermal bridges, and electrical and mechanical overloads.
- Determination of surface temperatures, relative humidity, ambient temperature, and dew point temperature.
- Flexible display with infrared image, digital image, and a combination of both.
- Visual dew point function for accurate marking of surfaces that have reached the dew point or have dropped below it.
- Ideal for critical inspections of interior spaces, for example to detect condensation, and with a clear warning for thermal bridges.
- Versatile: Structural inspections, electrical systems, machinery, heating and ventilation technology, localization of heat sources and cold spots
- Thanks to the compact, ergonomic Thanks to the design, the device fits comfortably in the hand.
- Suitable for mounting on tripods with a 1/4" screw thread.
- IP 54: dust and splash-proof
- High-contrast color display thanks to TFT technology
- Evaluation and documentation using a microSD card and USB-C interface.
- Automatic shutdown
Technical data
- Measurement functions: infrared temperature, relative humidity, ambient temperature, dew point temperature
- Thermal imaging
- Digital imaging
- MIX imaging (thermal/visual)
- Image capture
- Data transfer (USB mass storage)
- Time stamp / real-time clock
- Adjustable emissivity level

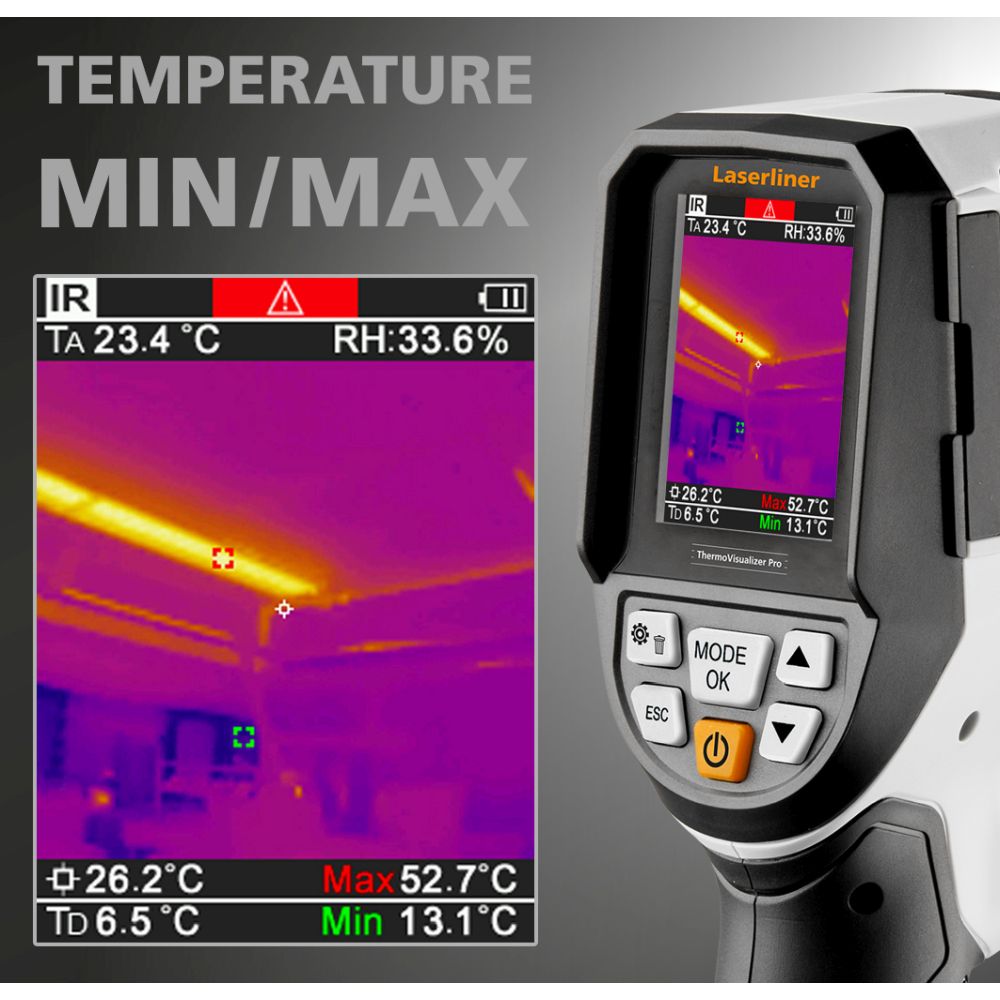

- Min./max. measurement
- Thermal warning bridges
- Dew point analysis
- Screen type: 2.4-inch color TFT screen
- Screen resolution: 320 × 240 pixels
- Sensor type: uncooled microbolometer
- Flash frequency: 9 Hz
- Thermal sensitivity (NETD): 60 mK at 25 °C
- Infrared temperature measurement range: -20 °C to +150 °C and 0 °C to +400 °C
- Infrared temperature measurement accuracy: ± 2 °C (0 °C to +40 °C)
- Infrared temperature measurement accuracy: ± 4 °C or 3 % (≤ 0 °C and > +40 °C)
- Power supply: Li-ion battery pack 3.6 V / 2.55 Ah / 9.18 Wh
- Operating time: approx. 4 hours

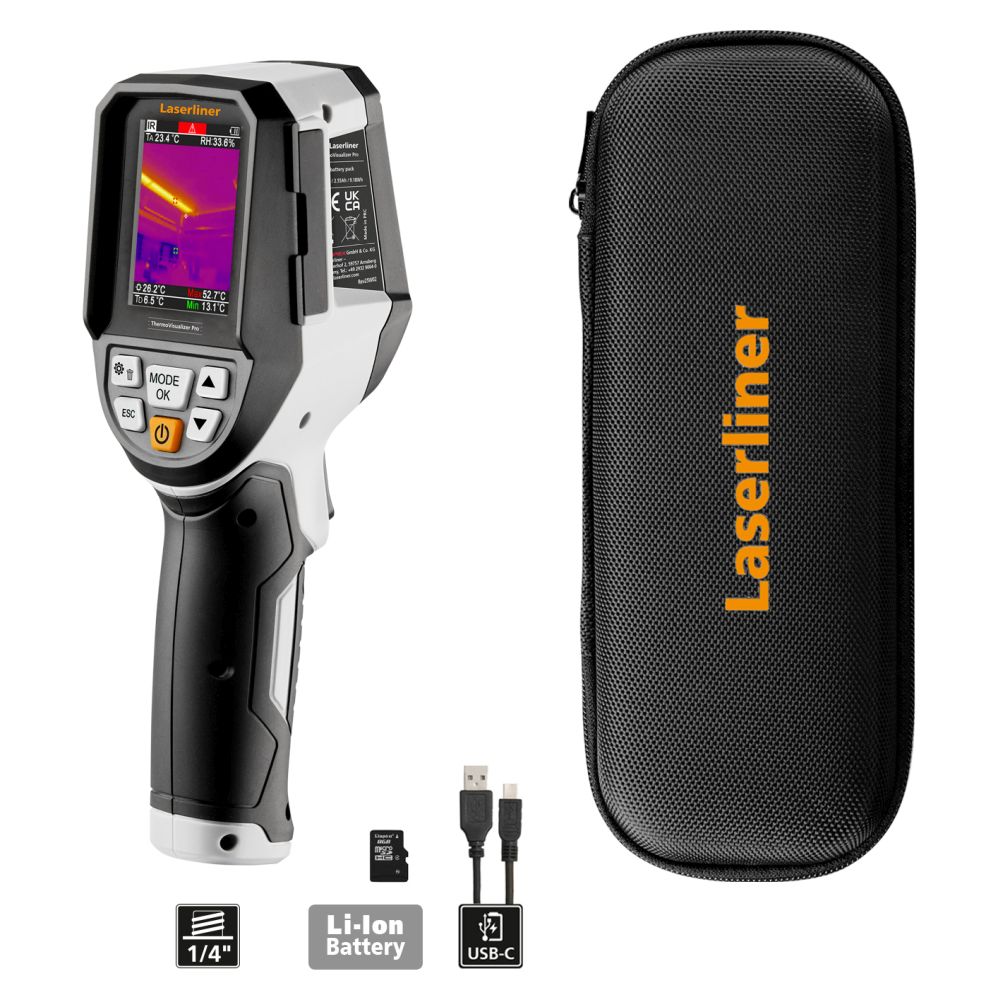

Scope of delivery
- ThermoVisualizer Pro
- micro SD card
- Integrated Li-ion battery pack
- USB-C cable
- Carrying bag
