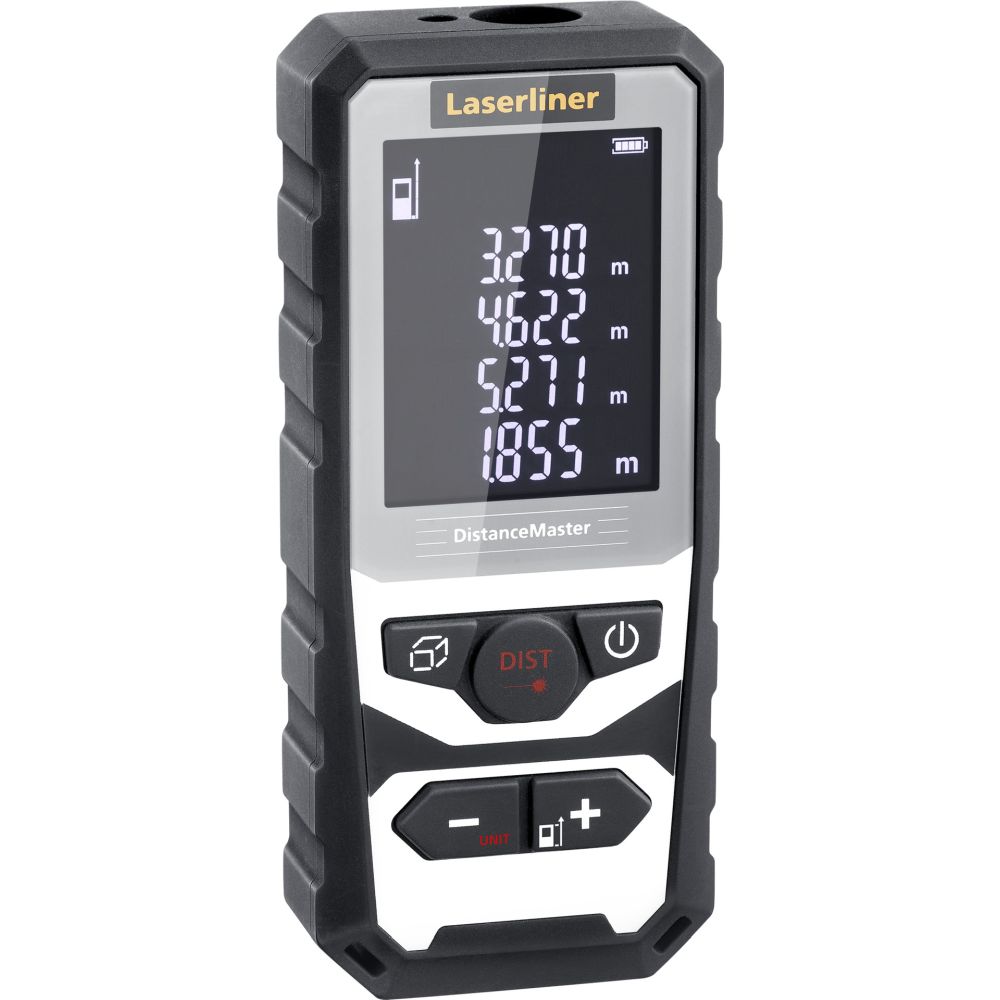

Laserliner080.982A DistanceMaster 50 Laser Distance Meter 50m
This versatile distance meter, with a measuring range of 50 meters, makes it possible to accurately measure, add, and subtract lengths, areas, and volumes. Heights can also be determined indirectly using the Pythagorean angle function. This means that it can also be used in hard-to-reach places. The continuous measurement function simplifies working in situations where continuous distance measurements are required, for example, when the object to be measured is moving. The reference point of the housing can be adjusted to the specific application. There are 50 memory locations available for optimal recording of project results. Energy-saving automatic shut-off function when not in use.
Special features
- Simple measurements, addition and subtraction of lengths, areas and volumes.
- Indirect height determination in hard-to-reach locations using the Pythagorean theorem (1 + 2 + 3)
- Continuous measurement with min/max display
- Automatic addition of wall surfaces of the same height, ideal for painting.

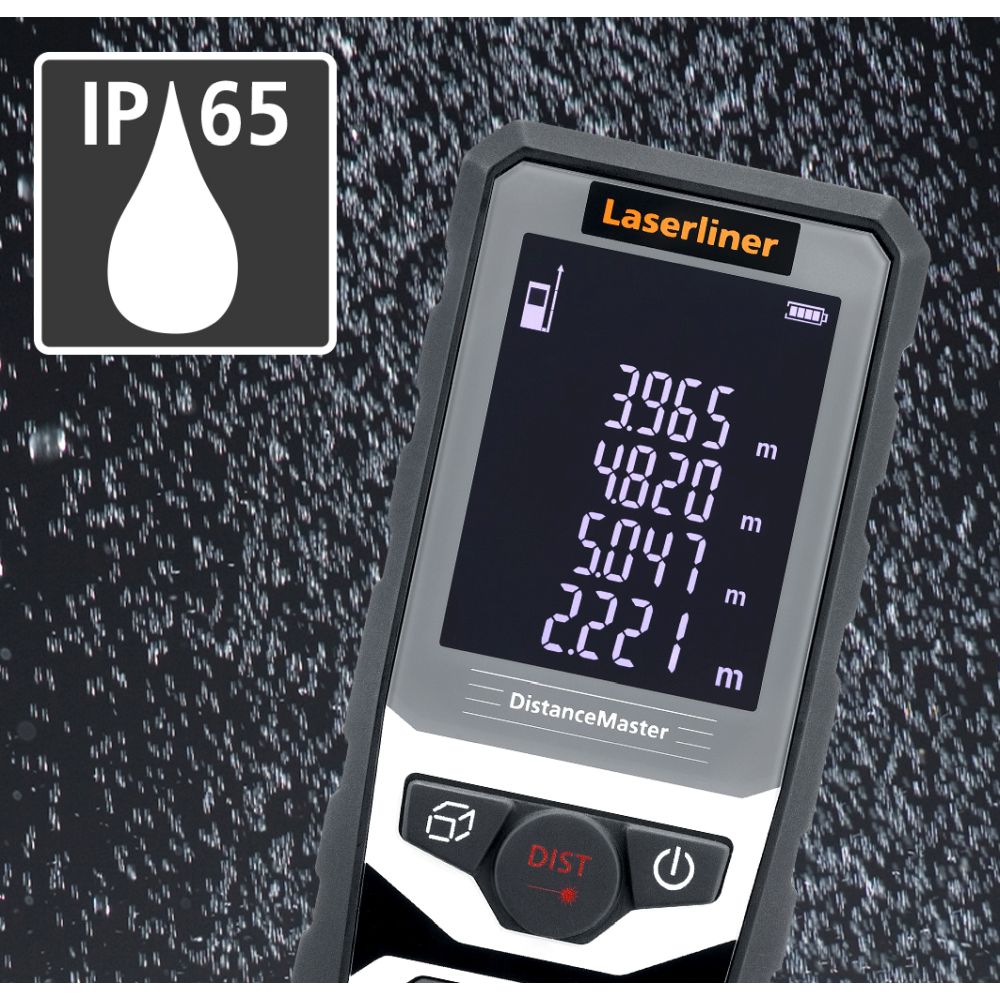

- Robust, dust and waterproof
- Reference point options for the front, rear or tripod housing
- Effective storage of measured values thanks to the memory function with 50 memory locations.
- Energy-saving automatic shut-off function when the device is not in use.
Technical data
- Measurement functions: length, area and volume
- Min./max. measurement: yes
- Continuous measurement: yes
- Indirect length measurement (Pythagoras): yes
- Selectable reference point: yes (for measurements in homes)
- Calculation functions: addition / subtraction
- Wall surface function (decorator function): yes
- Accuracy (typical): ± 1.5 mm
- Measurement range (indoor): 0.05 – 50 m
- Laser wavelength: 635 nm
- Laser class: 2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
- Memory: 50 measurement values
- Measurement units: m / ft / inch / ’ â€
- Power supply: 3 × 1.5 V LR03 (AAA) batteries
- Operating temperature: -10 °C to +40 °C
- Operating humidity: max. 20–85 % rH
- Working altitude: max. 2000 m above sea level (NN)
- Dimensions (W × H × D): 54 × 126 × 27 mm
- Weight: 142 g (incl. batteries)
Scope of delivery
- DistanceMaster Distance Meter
- Batteries
- Carrying case
