Laserliner 053.500A Quadrum Compact 210S Rotary Laser Red
Special features

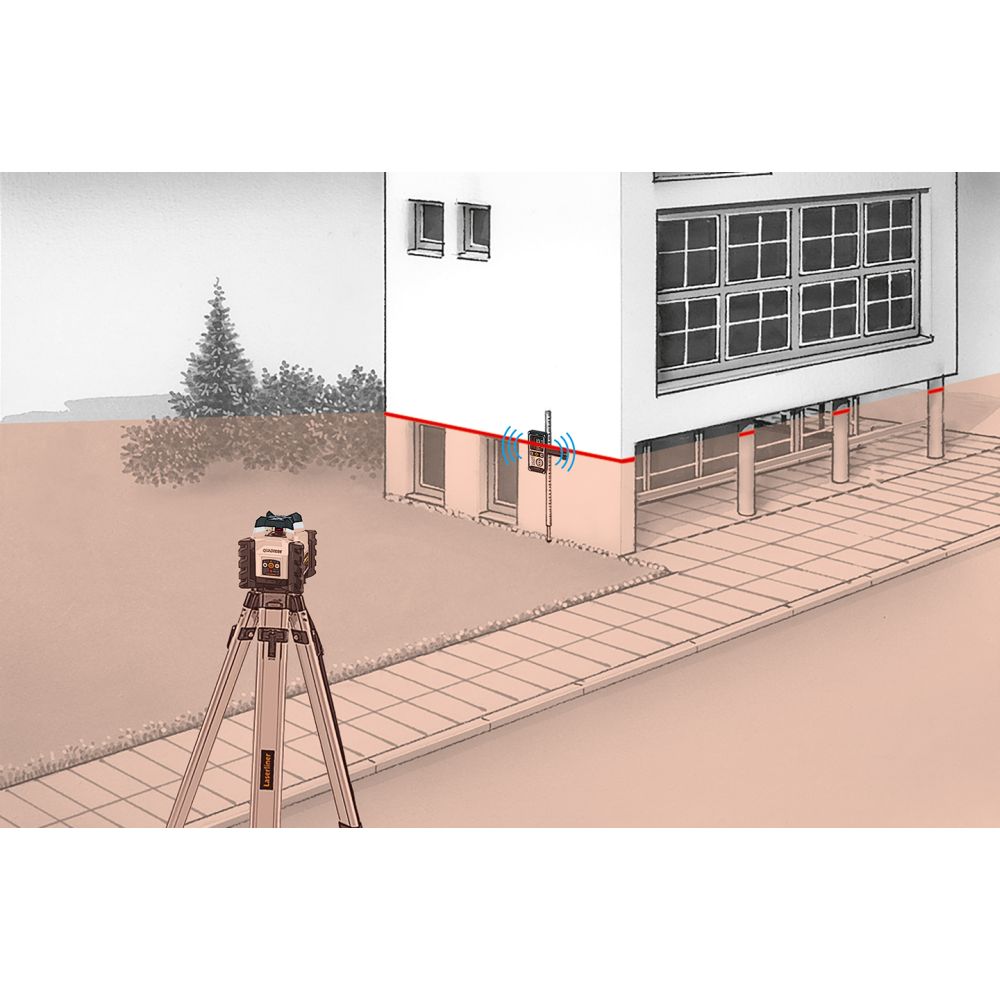

- This fully automatic and extremely user-friendly rotary laser is ideal for precise alignment in the horizontal plane.

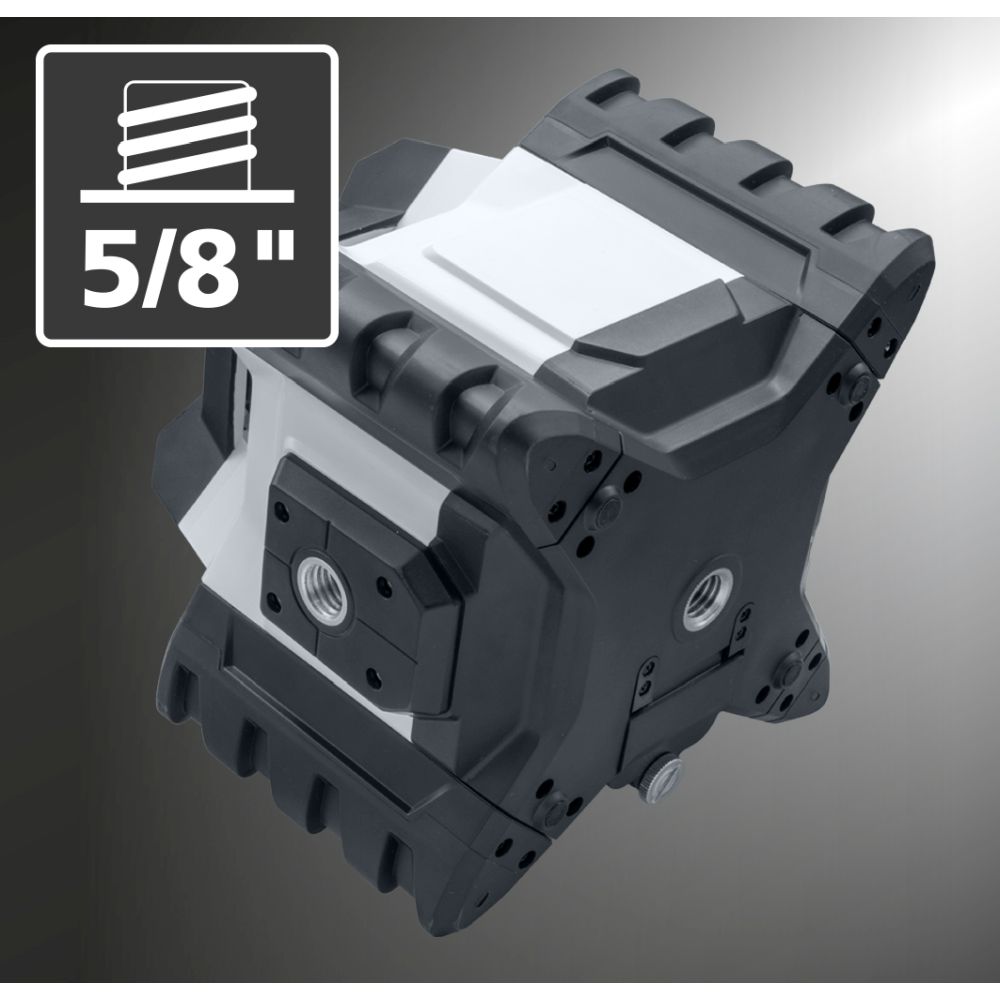

- Thanks to the 5/8" screw thread integrated on the side of the housing for mounting on tripods, the laser can be positioned so that it can also be used for precise vertical alignment.
- The plumb points projected at the top and bottom serve as a reliable reference to ensure the horizontal plane and the plumb line of a foundation.
- All functions can be conveniently controlled from a distance of up to 40 m using the remote control.
- By working in parallel and charging the powerful HighCapacityPack with lithium-ion technology, the user loses no time during work.
- Precise alignment of horizontal lines
- Also suitable for precise vertical alignment work thanks to 5/8" screw thread
- Easy alignment of slopes up to 4° with motorized tilt function and more than 4° with manual tilt function and optional angle plate
- Extremely practical operation with one button for comfortable use
- Extra plumb laser above and below
- Time-saving, fully automatic alignment via 'Sensor-Automatic'
- Long operating time thanks to two powerful high-capacity packs with lithium-ion technology
- All functions can be controlled from a distance of max. 40 m using the remote control
- Measurement safety thanks to automatic shutdown with ADS-tilt
- Thanks to AntiShake, quick setup on vibrating surfaces and in windy conditions
- Strong, waterproof housing with good grip
- Transport LOCK: The device is protected during transport by a special motor brake
- Convenient mounting on rulers, with universal holder
- Switchable, extremely loud piezo buzzer
- Easy application to metal surfaces with head magnet
Technical specifications
- Horizontal/vertical leveling
- Handheld receiver mode
- Scan mode
- Point mode
- Motorized tilt function
- Manual tilt function
- Level leveling with precision sensor
- Battery/mains power
- Anti-Drift System (ADS)
- Battery powered
- Upper plumb laser (90° reference beam)
- Downward plumb laser
- Tilt warning function
- AntiShake
- Self-leveling range ± 4°
- Accuracy ± 0.15 mm / m
- Automatic horizontal / vertical leveling
- Laser wavelength 635 nm
- Laser class 2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
- Laser modes Handheld receiver mode Point mode Rotation mode Scan mode
- Protection class IP 66
- Power supply Li-ion battery pack 7.4V / 2.6Ah / 19.24Wh
- Operating time approx. 25 hours Charging time approx. 4 hours
- Operating conditions -10°C … 50°C, humidity max. 80% rH, non-condensing, working height max. 4000 m above N (Normal null)
- Storage conditions -10°C … 70°C, air permeability max. 80% rH
- Dimensions (W x H x D) 170 mm x 188 mm x 170 mm
- Weight 1575 g #
