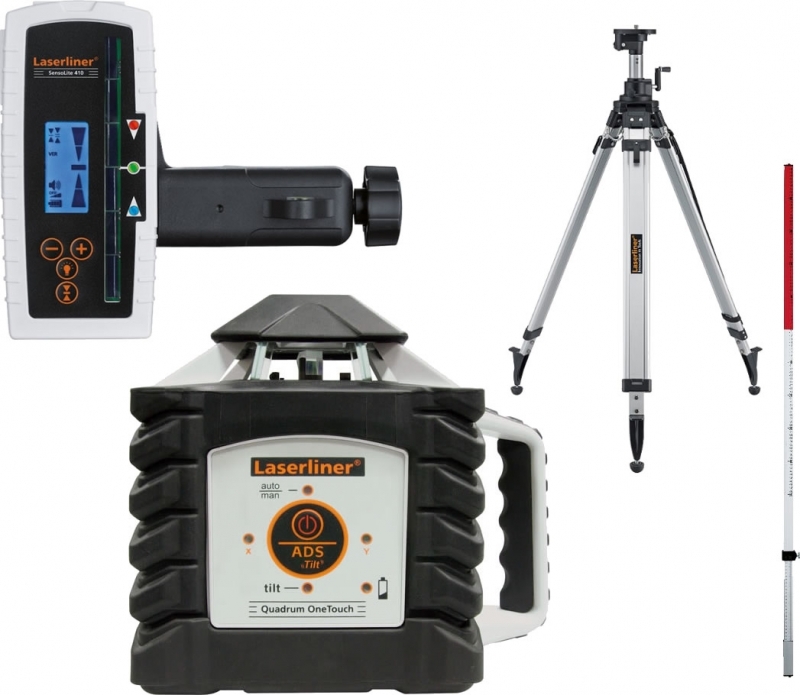

Laserliner Quadrum OneTouch 410 S SET Rotating laser + free Flexi measuring stick + Spindle tripod P260 cm
Rotating laser with one-button operation. For horizontal leveling over very long distances.
Special features
- Strong waterproof housing OneTouch operation: With a single press of a button, the laser switches from alignment mode (AntiShake) to safety mode (ADS-tilt) – very simple operation.
- Sensor-Automatic: Automatic horizontal alignment thanks to electronic servo motors with temperature-stable sensors.
- AntiShake: for fast alignment on moving surfaces and in wind.
- ADS-Tilt: automatic shutdown in case of external influences thanks to ADS (Anti-Drift System).
- The manual tilt mode allows for the creation of slopes up to 5°.
- Thanks to the extra-long receiver unit, the SensoLite 410 can quickly detect the laser beam at a great distance.
- LC display on the front and back, Super bright, three-color signal LEDs as well as acoustic melodies indicate the height of the laser beam.
- Robust, waterproof housing with strong head and side magnets.
- All functions of the rotary laser can be controlled with the remote control.
- Thanks to the 4 IR receiving diodes, the instrument can be operated remotely from any side.
- Transport Lock: a special motor brake protects the instrument during transport.
- Long operating time thanks to effective power supply.
Technical data
- Accuracy 0.75 mm / 10 m
- Self-leveling range + 5°
- Automatic horizontal leveling
- Laser reception range max. 400 m radius
- Laser modes Point, scan, rotation, and manual receiver mode
- Laser wavelength 635 nm
- Laser class 3R, < 5 mW
- Power supply
- High-efficiency batteries 35 hours operating time
- Alkaline batteries 50 hours operating time
- Water and dust protection Quadrum IP 66, SensoLite IP 67
- Weight 2.6 kg
- Dimensions (W x H x D) 215 x 205 x 165 mm
Standard included
- Case
- SensoLite 410
- Universal holder
- High-efficiency battery
- Battery holder
- Remote control
- AC adapter / charger
- Batteries
