Laserliner 036.380L PowerPlane-Laser 3G Multi 18V SET in L-Boxx Cross-line laser excl. battery adapters, battery and charger
Special features
This three-dimensional laser projects one horizontal and two vertical laser circles, optimal for the precise alignment of objects throughout the room. Thanks to green laser technology with the brightness rating PowerGreen++, perfect visibility is provided even in unfavorable lighting conditions. Due to the separately available PowerAdapter, the laser is compatible with the 18V battery systems from well-known manufacturers. This allows the user to perfectly integrate the laser into their existing tools, enabling seamless and efficient use.
- Three extremely bright green laser circles with excellent visibility up to 60 meters

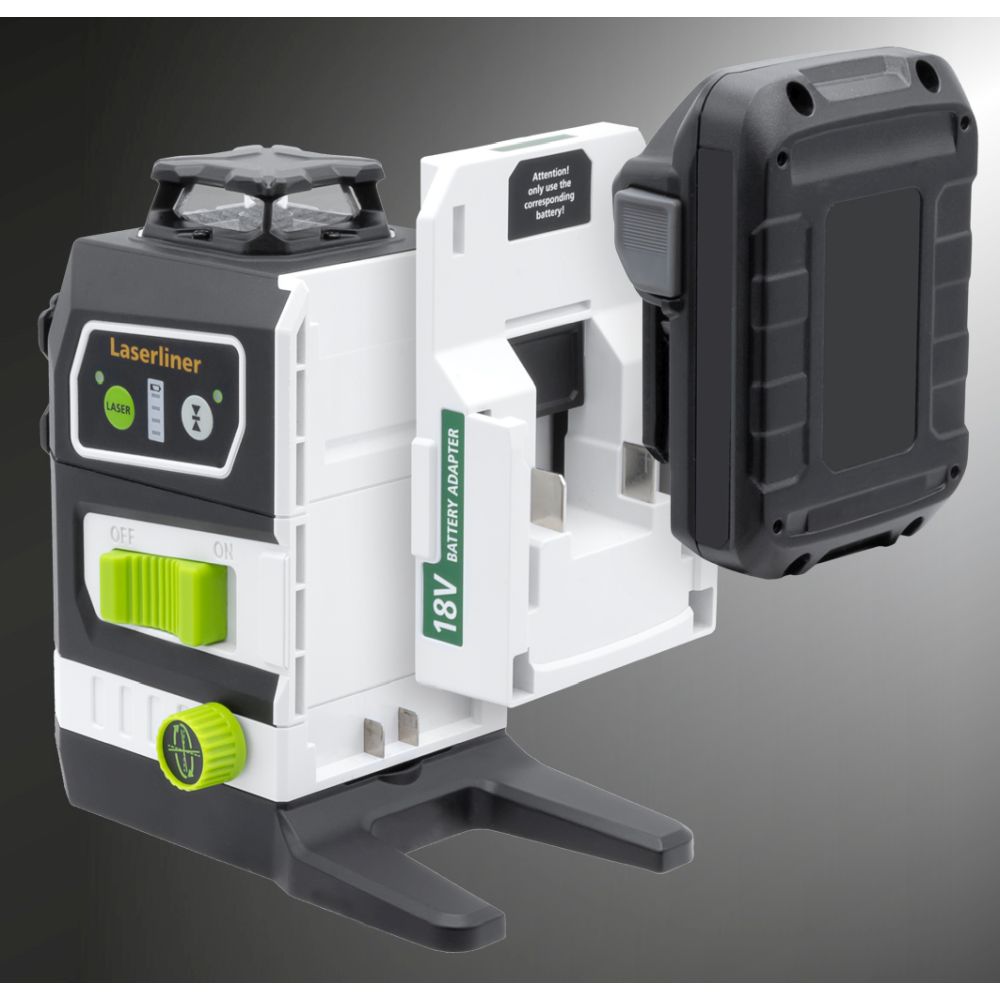

- Compatibility with 18V battery systems: Works with 18V batteries from various well-known manufacturers thanks to separately available PowerAdapters
- Efficient use: thanks to the choice of the appropriate adapter, the laser integrates seamlessly into the customer's existing 18V peripheral system
- Easy slope alignment with manual tilt function
- Individually switchable laser circles
- Plumb function for synchronous work on floor and ceiling
- MicroControl: highly precise adjustment of the vertical laser lines via lateral fine-tuning without having to move the laser itself
- Center: When using the lateral fine-tuning, the positions of the upper and lower lasers remain unchanged Laser crosshairs, forming the plumb bob, unchanged
- Also suitable for mains power
- Solid aluminium base with exemplary stability
- Time-saving automatic alignment
- Integrated manual receiver mode for outdoor applications and long ranges
- Pendulum lock for safe transport
- With 1/4" thread
- With 5/8" thread
- Versatile, material-friendly mounting thanks to magnetic clamp and wall holder
- Ideal for horizontal and vertical mounting on drywall profiles
- Strong adhesive magnets for mounting on metal surfaces
Technical data
- Horizontal/vertical leveling
- Manual tilt function
- Battery/mains power
- Interchangeable rechargeable battery system
- Handheld receiver mode
- Self-leveling range ± 3.5° (horizontal)
- Accuracy ± 0.2 mm / m
- Automatic horizontal / vertical leveling
- Visibility (characteristic)* 60 m
- Laser wavelength 515 nm
- Laser class 2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
- Operating time depending on the battery system used: with 18V system 2 Ah approx. 10 hours with 18V system 4 Ah approx. 20 hours
- Dimensions (W x H x D) 120 mm x 160 mm x 144 mm
- Weight 786 g (without battery)

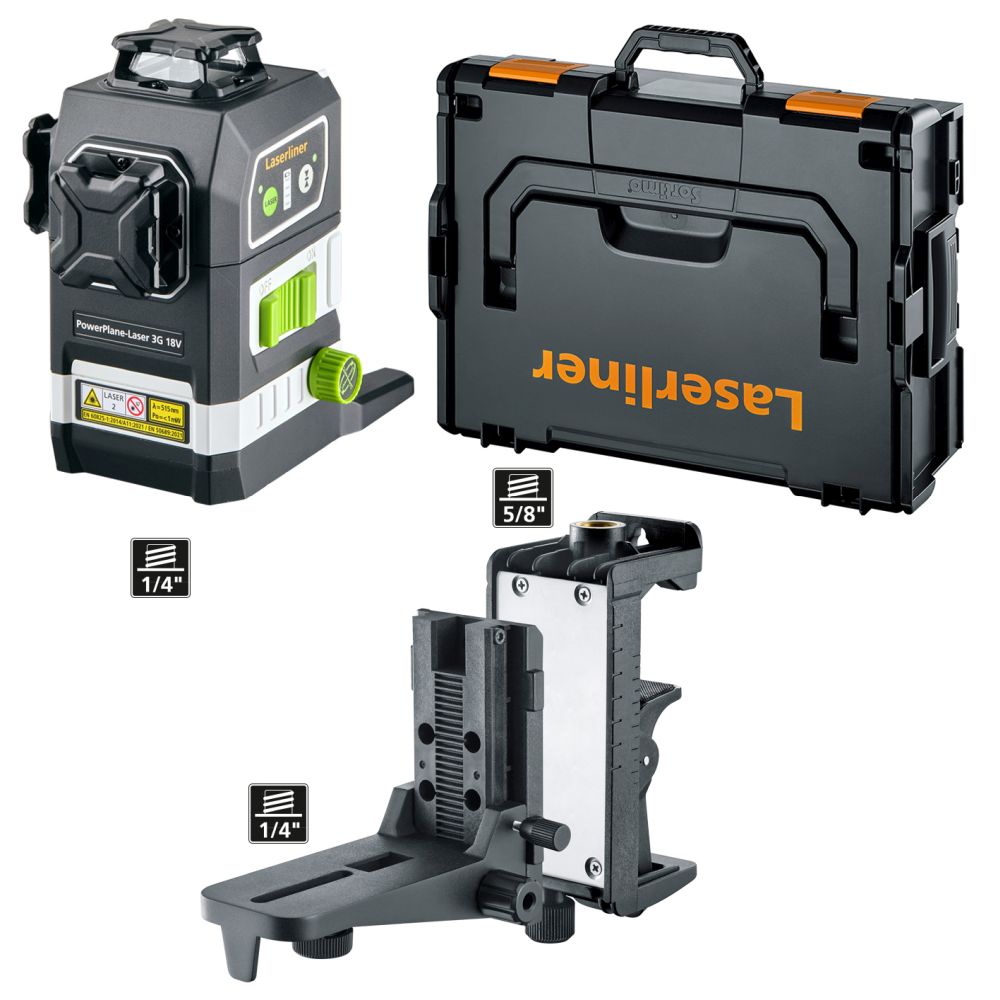

Scope of delivery
- PowerPlane-Laser 3G Multi-18V
- CrossGrip Pro
- Complete in the L-BOXX 136
- Battery not included
- Power Adapter not included in the scope of delivery, only available separately: Bosch (036.380.1), DeWalt (036.380.2), Festool (036.380.3), Hikoki (036.380.4), Makita (036.380.5), Metabo (036.380.6), Milwaukee (036.380.7)
