Laserliner 031.410L MasterPlane Laser 3G Pro
Special features
The three-dimensional, highly visible laser projects one horizontal and two vertical laser circles for the precise alignment of objects. For synchronous work on the floor and ceiling, the two laser crosses form a plumb line function. The laser lines can be switched on individually, and in the event of external influence, the device automatically switches off via the Anti-Drift System (ADS) to prevent measurement errors. With the clamp and wall mount, the laser can be suspended, securely placed on metal surfaces, or mounted on ceiling profiles. The powerful HighCapacityPack with lithium-ion technology ensures a long operating time, which can be doubled with the extra battery.
- Three-dimensional laser with one horizontal and two vertical 360° laser circles
- Precise horizontal and vertical alignment of objects
- Good visibility thanks to green laser technology
- Second battery for long operating time
- Magnetic clamp and wall mounts for hanging, horizontal and vertical clamping on profiles, and fixing on metal surfaces
- MicroControl: Side fine-tuning for the exact, vertical alignment of the laser lines on the edges of objects
- Easy alignment of slopes with manual tilt function
- Plumb function for synchronous work on floor and ceiling
- Measurement safety thanks to automatic shutdown with ADS-tilt
- Individually switchable laser lines
- Time-saving automatic alignment
- Rechargeable via USB-C interface and USB-A to USB-C cable
- Variable mounting on tripods via 1/4" thread on the laser and 5/8" thread on the clamp and wall mount
- Integrated handheld receiver mode for outdoor applications and long ranges
- IP 64: well protected against dust, ideal for use in harsh working conditions
- Safe storage and transport in the L-Boxx, which can be stacked in an instant
Technical data
- Horizontal/vertical leveling: Yes
- Manual tilt function: Yes
- Replaceable battery system: Yes
- Handheld receiver mode: Yes
- Tilt warning function: Yes
- Self-leveling range: ± 3.5° (horizontal)
- Accuracy: ± 0.2 mm / m
- Leveling: automatic
- Visibility (characteristic)*: 55 m
- Working range: (depending on the amount of light) 50 m
- Laser wavelength: 515 nm
- Laser class: 2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
- Receiving unit length: 0 mm
- Power supply: Li-ion battery pack 7.4V / 2.6Ah / 19.24Wh
- Operating time with 3 laser levels: approx. 5 hours
- Operating time with 2 laser levels: approx. 10 hours
- Operating time with 1 laser level: approx. 17 hours
- Operating conditions: 0°C … 50°C, Humidity max. 80% rH, non-condensing, working altitude max. 4000 m above sea level
- Storage conditions: -10°C … 70°C, Humidity max. 80% rH
- Dimensions (W x H x D): 140 mm x 130 mm x 85 mm
- Weight: 636 g (incl. battery pack)

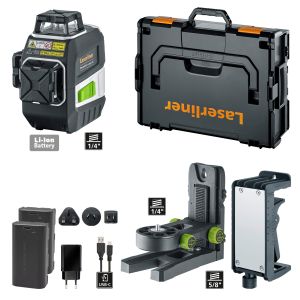

Scope of delivery
- MasterPlane Laser 3G
- CrossGrip Plus
- 2 x HighCapacityPack (Li-Ion)
- mains/charger incl. international adapter
- USB-C cable
- complete in the L-BOXX 136
