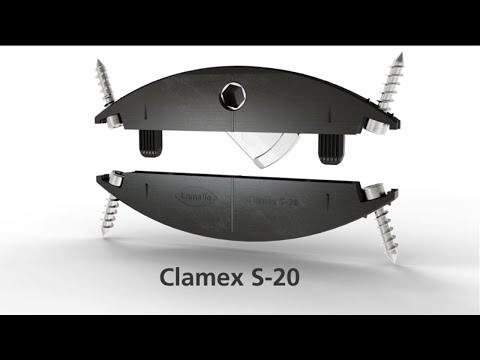

Lamello 145244 Clamex S-20 Furniture Connector, detachable, 80 pieces, incl. screws
Special features
- Detachable connector for the Lamello system from 16 mm material thickness
- Minimalist operating opening of 6 mm diameter, aesthetic and almost completely concealed
- Powerful connection via a lever, comparable to an eccentric connector
- No glue required for joining
- Aesthetic connections possible at all angles
- Ideal for fixed or detachable connections
- Size and connection thickness equal to the original wooden lamella (size 20, 4 mm thick)
- 4 mm grooves can be milled with a grooving machine at almost any angle

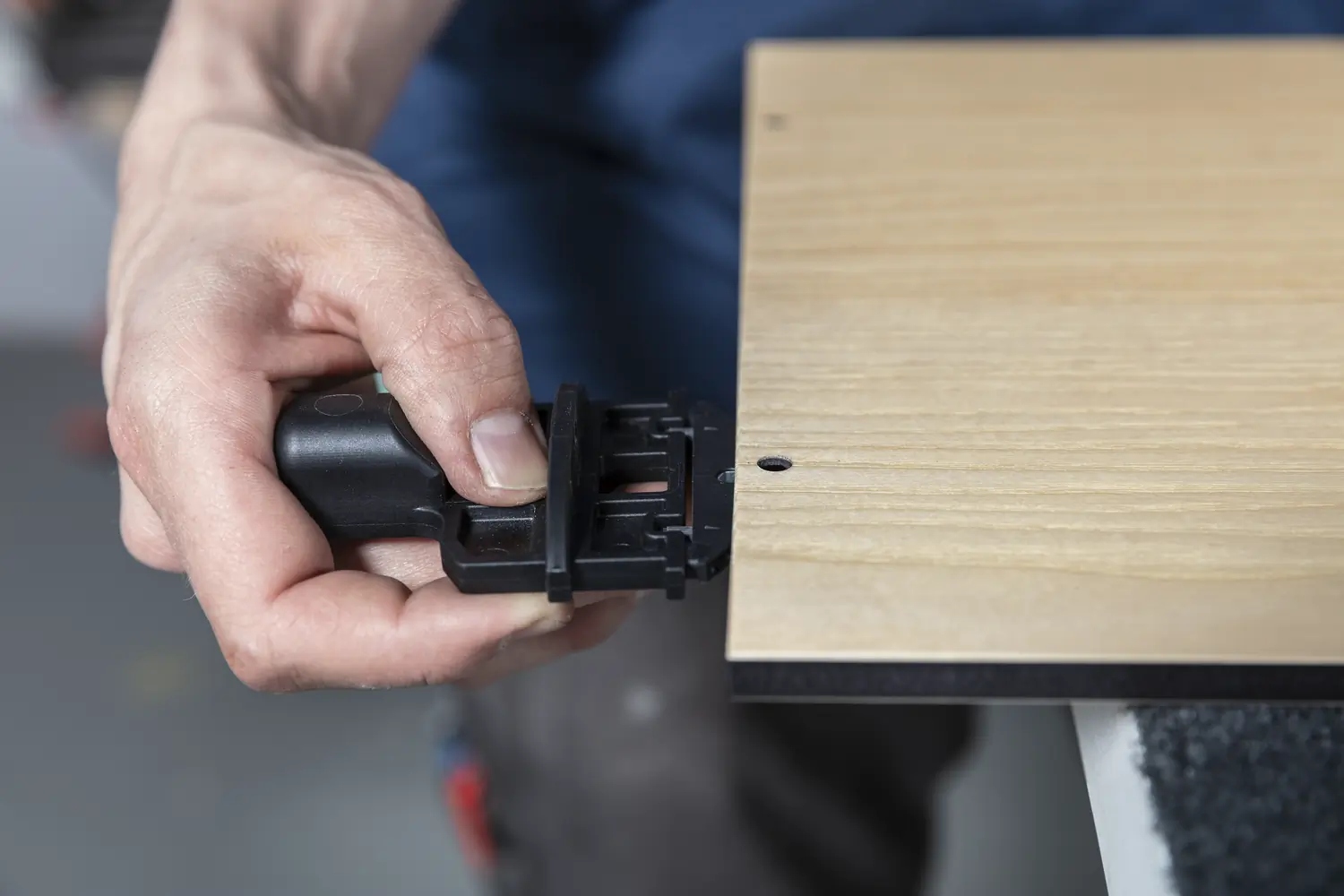

- Drilling template included for drilling holes from 22.5° to 180°
- Connector is secured with two special Clamex S-20 screws
- Workpieces can be processed or shipped immediately, no waiting time for glue
- Flexible use with a Classic X milling machine on site, even when using Clamex P-14 in the workshop
- Visually inconspicuous due to uniform drill hole size
Applications
- Dismountable connections for sheet materials
- Gluing aid for miters and difficult angles
- Suitable for thin materials
- Kitchen construction (open shelves, HPL worktops)
- Interior construction (built-in wardrobes, pitched roofs)
- Furniture construction (high-end furniture, wine racks, bookcases)
Technical data
- Lateral installation tolerance: ± 1 mm
- Radial installation tolerance: ± 0 mm
- Minimum workpiece width: 71 mm
- Minimum material thickness for edge milling: 8 mm
- Minimum material thickness for surface milling: 16 mm
- Minimum material thickness for intermediate wall milling: 32 mm
- Minimum material thickness for angle bisector: 14 mm
- Lamello system setting: 20
- Tensile fracture strength in coated chipboard: 490 N
- Tensile fracture strength in MDF: 680 N
- Tensile fracture strength in beech: 620 N
- Shear strength in coated chipboard: 610 N
- Shear strength in MDF: 890 N
- Shear strength in beech: 1470 N
- Dimensions (LxWxH): 59 x 24 x 3.9 mm
