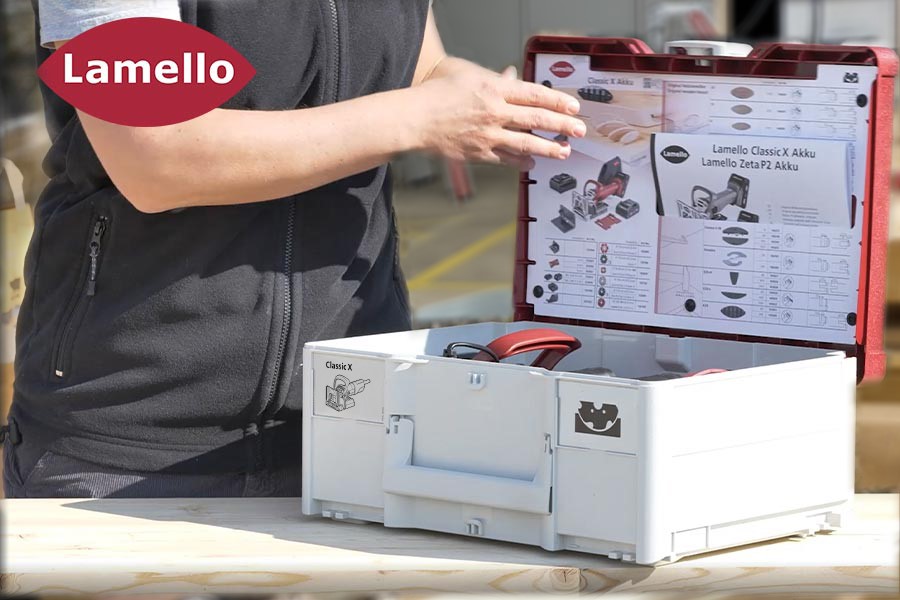

Lamello Zeta P2 with diamond cutter in Systainer + Starter set in Systainer
Now a total of 2 years warranty on Lamello Zeta Machines(*)
(*) In addition to the Lamello factory warranty, you receive an extra 1 year TOOLPLUS warranty from us. ToolNation TOOLPLUS Warranty: 1 year extra Toolplus warranty on power tools.

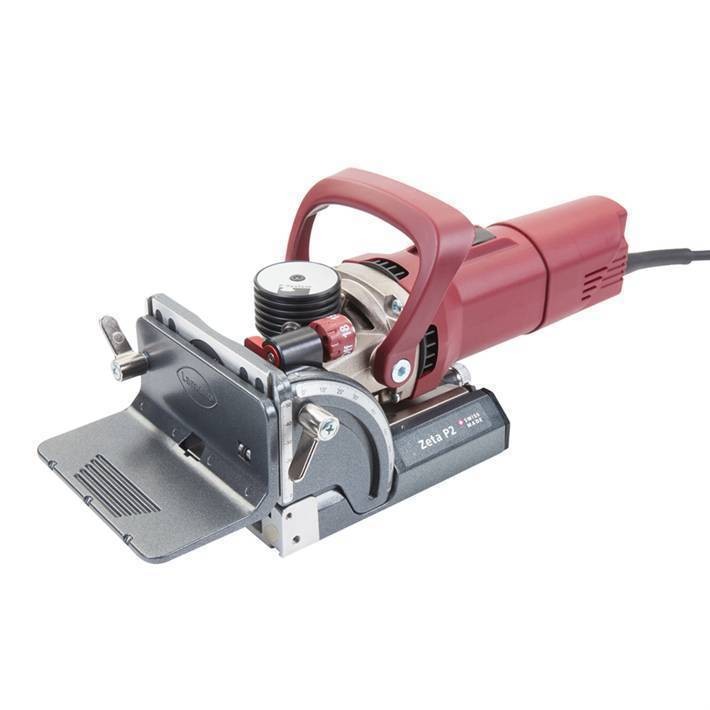

The Zeta P2 is the new groove milling machine that allows you to save time every day and stand out! You no longer have to wait for the glue to dry. No more collets or glue clamps to use. The customer can easily disassemble it for moving. You can easily assemble it by yourself and even let the customer do it.
Special features Zeta P2
- The Zeta P2 is the profile groove milling machine for the P-System anchoring and specifically for the connectors from the ClamexP series. The machine is intended for joining wood materials.
- With the Zeta P2, P-System grooves for connecting fittings with different installation depths can be milled without having to change the cutter. To do this, you only need to turn the depth adjustment of the P-System.
- The milling mechanism integrated into the Zeta P2 on the milling spindle is the heart of the profile groove milling machine. During milling, the milling mechanism automatically performs a lateral movement for the profile groove. All types of connecting fittings can now be slid into this profile groove by hand and anchored quickly and securely.
Advantages and Features Zeta P2
- Extremely fast connection method with power tools
- Fast, simple, and precise work using the well-known Lamello application principle
- Identical processing of the workpieces on both sides, resulting in time savings and reduced risk of errors due to the elimination of depth adjustment
- Time savings during fitting installation thanks to the innovative profile groove technology, which saves significant time and additional fastening material
- 5 different milling depths for various types of connecting fittings
- Suitable for use with wooden lamellas and other 4mm wide fittings
Technical Data Zeta P2
- Power: 1050W
- Mains voltage: 230V
- Speed: 9000 rpm
- Cutter: Diamond profile groove cutter 100 x 7 x 22 mm (much longer service life)
- Teeth Z3
- Max. milling depth: 20 mm
- Weight: 3.7 kg
Standard accessories included:
- Zeta P2 in Systainer
- Diamond profile groove cutter 7 mm
- Right stop
- Dust extraction connection 23 + 36 mm
- Angle disc
- Add-on plate 2 + 4 mm
- Tool set
- P-System drilling jig incl. drill bit
Systainer with compartments:
- 80 pairs Clamex P-14
- 80 pairs Tenso P-14 with pre-tensioning clip
- Assembly screwdriver
Divario P-18 starter set consists of:
- 80 pairs Divario P-18
- Assembly tool
- Marking template with drill
- in Systainer
*Toolnation, as the sole supplier of Lamello, extends the warranty from 1 to 2 years. We take over the warranty provisions after the first year and keep track of them in our computer system.
