Lamello Zeta P2 set with Diamond cutter in Tanos systainer
Now a total of 2 years warranty on Lamello Zeta Machines(*)
(*) In addition to the Lamello factory warranty, you receive an extra 1 year TOOLPLUS warranty from us. ToolNation TOOLPLUS Warranty: 1 year extra toolplus warranty on power tools.
Zeta P2 is the new grooving machine that allows you to save time every day and stand out! You no longer have to wait for the glue to dry. No more collets or glue clamps to use. The customer can easily disassemble it for moving. You can easily assemble it by yourself or even let the customer do it.
Special features Zeta P2
- Profile groove function
- The VMD movement mechanism is the heart of the machine and the key to the P-System, the new profile joining system.
- During the milling movement, the cutter plunges into the material to the preset depth.
- Subsequently, an up-and-down movement occurs to mill the profile.
- Ease of use: the profile milling movement is performed automatically. lightweight due to compact design optical display of the movement process
- Reliable, dependable mechanical, low-wear technology.
- The switchable profile groove function for use as a standard groove milling machine opens up the possibility for 14 additional applications
Advantages and FeaturesZeta P2
- Durable precision guide guarantees accurate parallel grooves for perfectly fitting workpieces
- CNC extremely precise machined stop surfaces – for accurate positioning on the workpiece
- Base plate, adjustable angle stop, and right-angle stop are of equal width on both sides – for efficient positioning of the machine on the workpiece
- Multifunctional right-angle stop
- Mitre joints with panels of different thicknesses can be joined flush on the outside
- Mounting on the base plate increases the support surface
- Adjustable bevel stop with degree scale, with fixed click at 22.5°, 45°, 67.5°, 90°
- Central lock for quick cutter change
- Rotatable depth adjustment with 6 standard depths
- Extra thin anti-slip protection for a good grip
- Strong electronically controlled 1050 Watt motor
- Soft start, speed control, overload protection, safety switch
- Maintenance-friendly, for minimal maintenance and repair costs
Technical data Zeta P2
- Power: 1050W
- Mains voltage: 230V
- Speed: 9000 rpm min
- Butter cutter: Diamond profile groove cutter 100 x 7 x 22 mm (much longer service life)
- Teeth Z3
- Max. milling depth: 20 mm
- Weight: 3.7 kg
Standard included
- Diamond cutter
- Right stop
- Dust extraction connection 23 mm
- Dust extraction connection 36 mm
- Slab insert 4 mm
- Slab insert 2 mm
- Tool set, drilling jig incl. drill for Clamex P

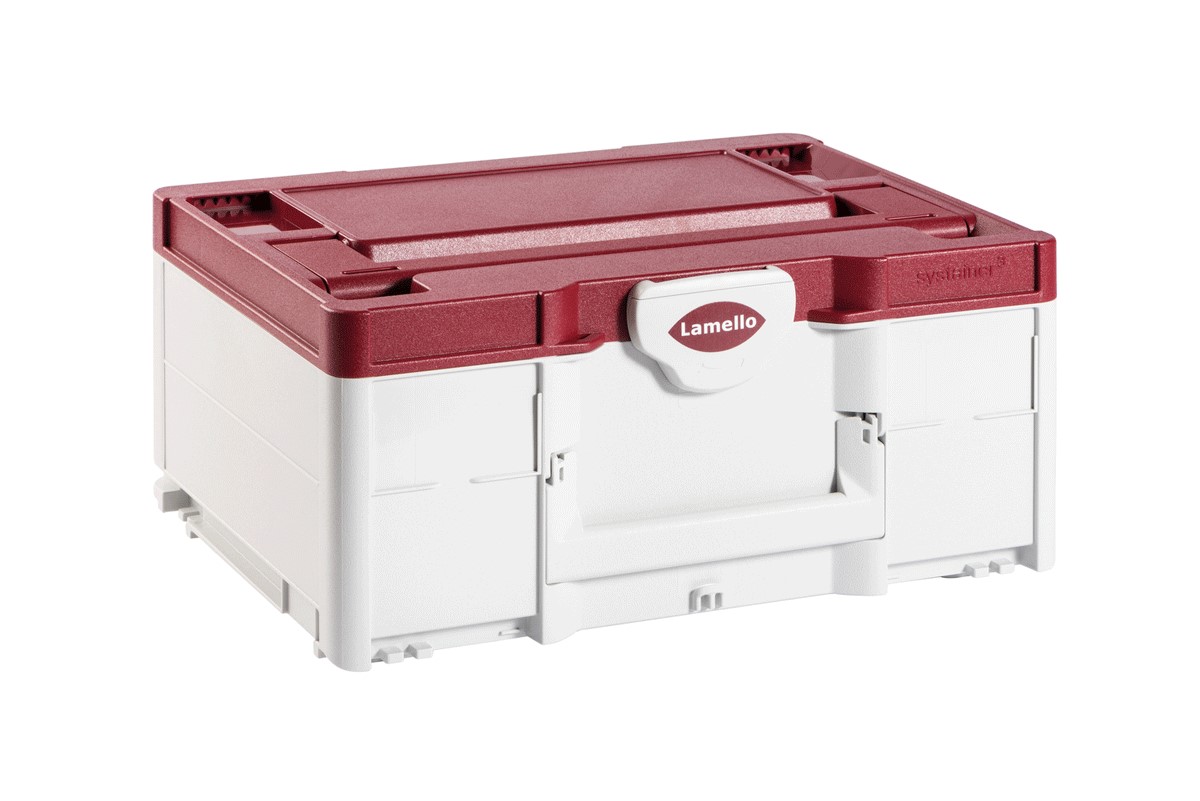

- In Tanos systainer
*Toolnation, as the sole supplier of Lamello, extends the warranty from 1 to 2 years. We assume the warranty provisions after the first year and keep track of them in our computer system.
