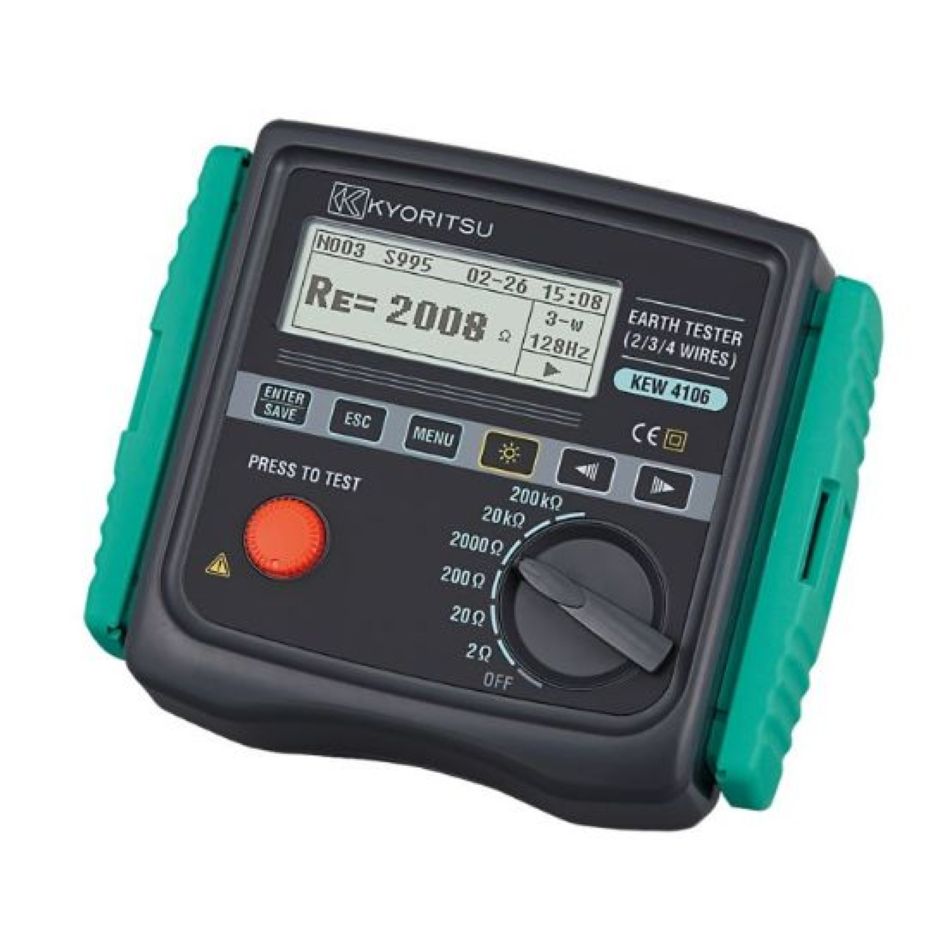

Kyoritsu 041060001A Digital Earth Spreading Resistance Meter, 2/3/4 Wire
The Kyoritsu 4106 is a compact earth spreading resistance meter for measuring earth spreading resistance using the two-, three-, or four-point method. This meter uses an advanced FFT filter and a high test current of 80mA to achieve a high resolution of 0.001¦.
Special features
- Measure ground resistance using the 2-, 3-, or 4-point method
- Six ranges: 0-2¦ / 0-20¦ / 0-200¦ / 0-2000¦ / 0-20k¦ / 0-200k¦
- High test current up to 80mA with a resolution of 0.001¦ on the 2¦ range
- Advanced FFT-based filter for stable results
- Automatic and manual selection of frequency ranges
- Various sub-results can be displayed on the screen: resistance of the auxiliary earth electrodes, the test current frequency, voltage and frequency of the interference (noise), and test lead resistance compensation
- Warning for excessive resistance of the auxiliary earth electrodes
- Memory for 800 measurement results
- Readable via supplied KEW Report PC software
- Safety category: CAT III 300V
- IP54
Technical data
- Indication/display: Digital
- Internal memory: Yes
- Printer output: No
- Integrated printer: No
Standard included
- Kyoritsu 4106 Digital Earth Spreading Resistance Meter
- Precision lead set (7229A)
- Testing lead set (7238A)
- Ground pin set (8032)
- Testing lead reel set (8200-04)
- USB adapter (8212-USB)
- 8 AA batteries (R6)
- Carrying strap
- Carrying bag (9125)
- User manual
- Calibration certificate
