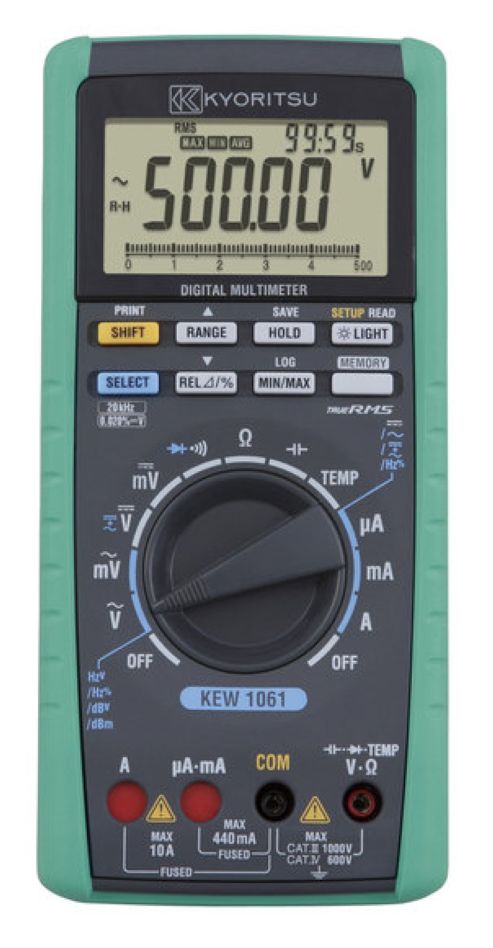

Kyoritsu 010610001B Digital TRMS Multimeter, incl. logging function
The Kyoritsu 1061 is a professional and highly accurate True RMS multimeter with logging function, which is even suitable for laboratory applications. This meter features, among other things, the highest accuracy, the highest safety category, and automatically shut-off sockets, making incorrect connection virtually impossible.
Special features
- Basic accuracy 0.02%
- AC/DC voltage measurement up to 1000V
- AC/DC current measurement up to 10A
- AC + DC measurement
- True RMS
- Resistance measurement up to 50M™ and continuity test
- Capacity test up to 50mF and diode test
- Frequency measurement up to 99.99kHz and Duty Cycle
- Temperature measurement from -200 to 1372°C
- Decibel calculation
- Data Hold, REL function and MIN/MAX/AVG
- Memory and log function
- PC communication
- Low-pass filter for motor drive measurements
- Large illuminated LCD display with 50,000 counts
- Automatic shutdown
- Safety category: CAT IV 600V, CAT III 1000V
Technical data
- Protection degree (IP): Other
- Analog bar indication analog/logarithmic: No
- Capacity measurement: Yes
- Continuity test: No
- Explosion-tested version: No
- Harmonic analysis/power quality: No
- Indication/display: Analog/digital
- Inductance measurement: No
- Interface: Yes
- IR interface: No
- Cable length measurement: No
- Cable symmetry test for 2-wire connections abE: No
- Minimum resolution capacitance: 0.00001 µF
- Minimum resolution frequency: 0.001 Hz
- Minimum resolution DC voltage: 0.001 mV
- Minimum resolution DC current: 0.01 µA
- Minimum resolution temperature: 0.1 °C
- Minimum resolution resistance: 0.01 Ohm
- Minimum resolution AC voltage: 0.001 mV
- Minimum resolution AC current: 0.01 µA
- Max. capacitance measurement range: 1000 Microfarads
- Max. frequency measurement range: 100 Kilohertz
- Max. voltage measurement circuit category: 600 Volts
- Max. voltage range AC: 1000 Volts
- Max. voltage range DC: 1000 Volts
- Max. current measurement range AC: 10 Amperes
- Max. current measurement range DC: 10 Amperes
- Max. temperature measurement range: 1372 Degrees Celsius
- Max. resistance measurement range: 50 Megaohms
- Maximum value memory: Yes
- Multiple indication: Yes
- Measurement range selection: Manual/automatic
- Measurement circuit category: CAT IV
- Measurement value memory: Yes
- With decibel measurement (dB): Yes
- With conductivity measurement: No
- With screen illumination: Yes
- Duty cycle measurements: Yes
- Milliohm measurement with 4-wire technique (Kelvin connection): No
- Minimum value memory: Yes
- Moment value memory (Data Hold): Yes
- Nom. test voltage 10 V: No
- Nom. test voltage 100 V: No
- Nom. test voltage 1000 V: No
- Nom. test voltage 250 V: No
- Nom. test voltage 50 V: No
- Nom. test voltage 500 V: No
- Peak value memory: No
- Relative value measurement: Yes
- Efficiency measurement (TRMS): Yes
- Temperature measurement: Yes
- RTD temperature measurement: No
- TC temperature measurement: Yes
- RPM measurement: No
- Power and energy measurement: No
- Resistance test/diode test: Yes
- Bumper: No
Included with:
- Kyoritsu 1061 Digital TRMS multimeter
- Test leads (7220)
- 4 Batteries (R6)
- 440mA/1000V Fuse (8926)
- 10A/1000V Fuse (8927)
- Calibration Certificate
- English Manual
