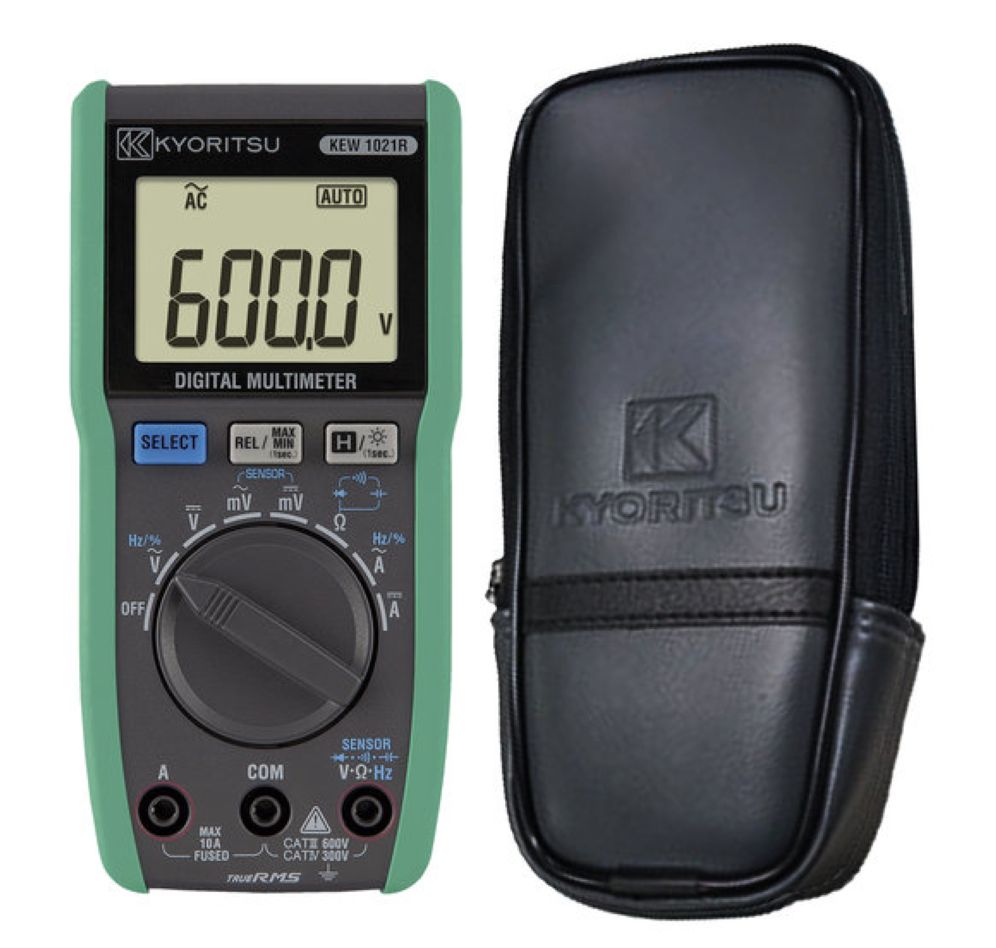

Kyoritsu 01021R080A Digital TRMS Multimeter, supplied with carrying case
The Kyoritsu 1021R is a classic digital TRMS multimeter.
Special features
- AC/DC voltage measurement up to 600V
- AC/DC current measurement up to 10A
- Resistance up to 40M¦
- Capacity up to 1000µF
- Large display
- Automatic shutdown
- Includes extra functions such as relative measurement, MIN/MAX, Data Hold, Duty Cycle, frequency and continuity test
- Safety class: CAT IV 300V / CAT III 600V
Technical data
- Protection degree (IP): Other
- Analog bar indication analog/logarithmic: No
- Capacity measurement: Yes
- Continuity test: Yes
- Explosion-tested version: No
- Harmonic analysis/power quality: No
- Indication/designation: Digital
- Inductance measurement: No
- Interface: No
- IR interface: No
- Cable length measurement: No
- Cable symmetry test for 2-wire connections abE: No
- Minimum resolution capacitance: Other
- Minimum resolution frequency: 0.01 Hz
- Minimum resolution DC voltage: 0.1 mV
- Minimum resolution DC: 1000 µA
- Minimum resolution resistance: 0.1 Ohm
- Minimum resolution AC voltage: 0.1 mV
- Minimum resolution AC: 1000 µA
- Max. capacitance measurement range: 1000 Microfarads
- Max. frequency measurement range: 100 Kilohertz
- Max. voltage measurement circuit category: 300 Volts
- Max. voltage range AC: 600 Volts
- Max. voltage range DC: 600 Volts
- Max. current measurement range AC: 10 Amperes
- Max. current measurement range DC: 10 Amperes
- Max. resistance measurement range: 40 Megaohm
- Maximum value memory: Yes
- Multiple indication: No
- Measurement range selection: Manual/automatic
- Measurement circuit category: CAT IV
- Measurement value memory: No
- With decibel measurement (dB): No
- With conductivity measurement: No
- With screen illumination: Yes
- Duty cycle measurements: Yes
- Milliohm measurement with 4-wire technique (Kelvin connection): No
- Minimum value memory: Yes
- Moment value memory (Data Hold): Yes
- Nom. test voltage 10 V: No
- Nom. test voltage 100 V: No
- Nom. test voltage 1000 V: No
- Nom. Test voltage 250 V: No
- Nominal test voltage 50 V: No
- Nominal test voltage 500 V: No
- Peak value memory: No
- Relative value measurement: Yes
- Efficiency measurement (TRMS): Yes
- Linear bar display scale: No
- Logarithmic bar display scale: No
- Temperature measurement: No
- RTD temperature measurement: No
- TC temperature measurement: No
- Speed measurement: No
- Power and energy measurement: No
- Resistance test/diode test: Yes
- Bumper: No
Included with:
- Kyoritsu 1021R Digital TRMS Multimeter
- Test leads (7066A)
- 10A/600V Ceramic fuse (8919)
- 2 Batteries (R03)
- Carrying case (9097)
- Wing-type and Flat-type holder
- User manual
