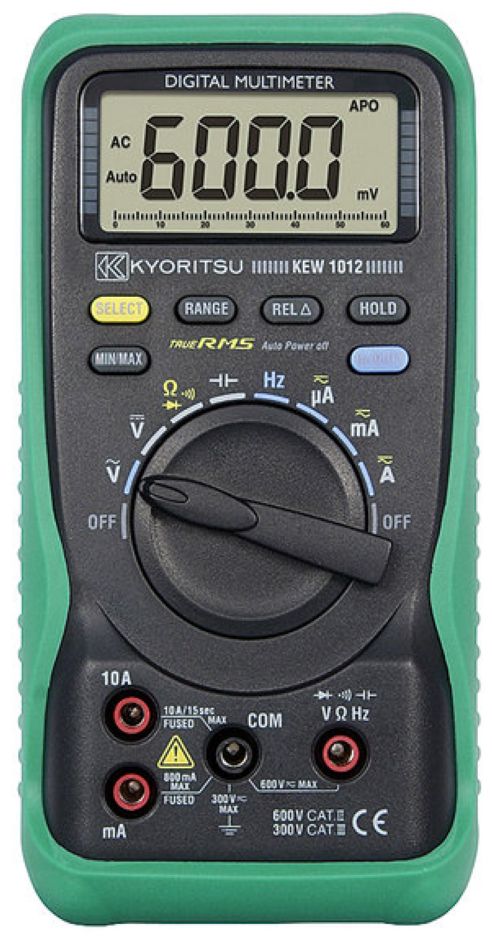

Kyoritsu 010120001A Digital TRMS Multimeter, 0-600VAC/DC, 10A AC/DC
The Kyoritsu 1012 is a simple digital True RMS multimeter. This multimeter includes the most common functions, such as AC/DC voltage and current, resistance, continuity, frequency, and even duty cycle. Furthermore, the meter features a MIN/MAX and REL function.
Thanks to the thick rubber holster, the meter is suitable for harsh environments, and its compact housing makes it easy to carry around. Additionally, the meter features user-friendly controls.
Special features
- True RMS
- Automatic and manual range selection
- AC/DC voltage measurement up to 600V
- AC/DC current measurement up to 10A
- Resistance measurement up to 60 MΩ and continuity test
- Diode test / capacitance test / frequency / Duty Cycle
- Automatic shutdown after 30 minutes
- Data Hold
- Display: 4000 counts
- Sturdy rubber holster
- Safety class: CAT III 300V
Technical data
- Protection degree (IP): Other
- Analog Bar indication analog/logarithmic: No
- Capacity measurement: Yes
- Continuity test: Yes
- Explosion-tested version: No
- Harmonic analysis/power quality: No
- Indication/designation: Analog/digital
- Inductance measurement: No
- Interface: No
- IR interface: No
- Cable length measurement: No
- Cable symmetry test for 2-wire connections abE: No
- Minimum resolution capacitance: 0.00001 µF
- Minimum resolution frequency: 0.01 Hz
- Minimum resolution DC voltage: 0.1 mV
- Minimum resolution DC current: 0.1 µA
- Minimum resolution resistance: 0.1 Ohm
- Minimum resolution AC voltage: 1 mV
- Minimum resolution AC current: 0.1 µA
- Max. capacitance measurement range: 4000 Microfarads
- Max. frequency measurement range: 10000 Kilohertz
- Max. voltage measurement circuit category: 300 Volts
- Max. voltage range: AC 600 Volts
- Max. voltage range: DC 600 Volts
- Max. current measurement range: AC 10 Amperes
- Max. current measurement range: DC 10 Amperes
- Max. resistance measurement range: 60 Megaohms
- Maximum value memory: Yes
- Multiple indication: No
- Measurement range selection: Manual/automatic
- Measurement circuit category: CAT III
- Measurement value memory: No
- With decibel measurement (dB): No
- With conductivity measurement: No
- With screen illumination: No
- Duty cycle measurements: Yes
- Milliohm measurement with 4-wire technique (Kelvin connection): No
- Minimum value memory: Yes
- Moment value memory (Data Hold): Yes
- Nom. test voltage: 10 V No
- Nom. test voltage: 100 V No
- Nom. test voltage: 1000 V No
- Nom. test voltage: 250 V No
- Nom. test voltage: 50 V No
- Nominal test voltage: 500 V No
- Peak value memory: No
- Relative value measurement: Yes
- Efficiency measurement (TRMS): Yes
- Temperature measurement: No
- Temperature measurement RTD: No
- Temperature measurement TC: No
- Speed measurement: No
- Power and energy measurement: No
- Resistance test/diode test: Yes
- Bumper: No
Supplied with:
- Kyoritsu 1012 Digital TRMS multimeter
- Test leads (KTL04)
- 0.8A/600V Fuse (built-in)
- 10A/600V Fuse (built-in)
- 2 Batteries (R6P)
- Manual
