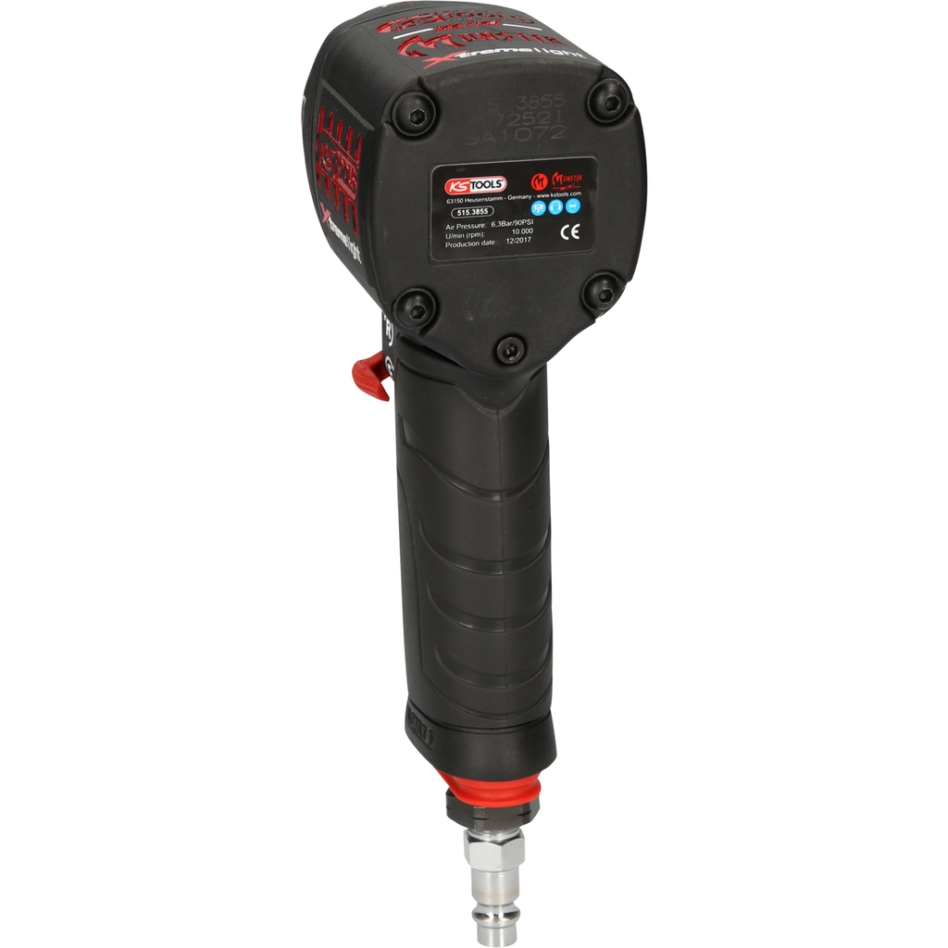

KS Tools 515.3855 3/8 miniMONSTER Xtremelight 1,390 Nm pneumatic impact wrench
Special features
- With non-slip soft-grip handle
- Air discharge downwards through the handle
- With practical one-hand selector switch (left / right)
- Easy operation
- Suitable for left- and right-handed users thanks to the simple switching of the selector lever
- 3-stage adjustable torque
- High-quality industrial Jumbo impact mechanism
- Long service life
- Cold-insulated handle
- Includes 1/4" coupling plug
- Ultralight housing
Technical data
- Thread connection: 1/4"PT
- Run in inches: 3/8
- Schallleistungspegel (dbA): 113
- Noise level (dbA): 102
- Max. tightening torque 3: 3 = 965 Nm
- Max. tightening torque 2: 2 = 640 Nm
- Max. Right-hand drag torque: 1 = 270 Nm
- Max. Loosening torque: 1390 Nm
- Recommended tightening torque: 615 Nm
- Square drive: 3/8
- Width B: 90
- Vibration acceleration: < 9.18 min.
- Hose diameter: 3/8" - 10 mm
- Vibration acceleration measurement uncertainty: 1.24
- Air consumption in l/min: 135
- Idle speed in rpm: 10000
- Idle speed in rpm: 10000
- Total length L in mm: 185.0
- Package contents: 1 Standard: DIN EN ISO 28927-2
- Max. screw size: M 16
- Handle: Non-slip soft-grip handle
- Working pressure in bar: max. 6.3 bar
- Weight in g: 1080/li>
