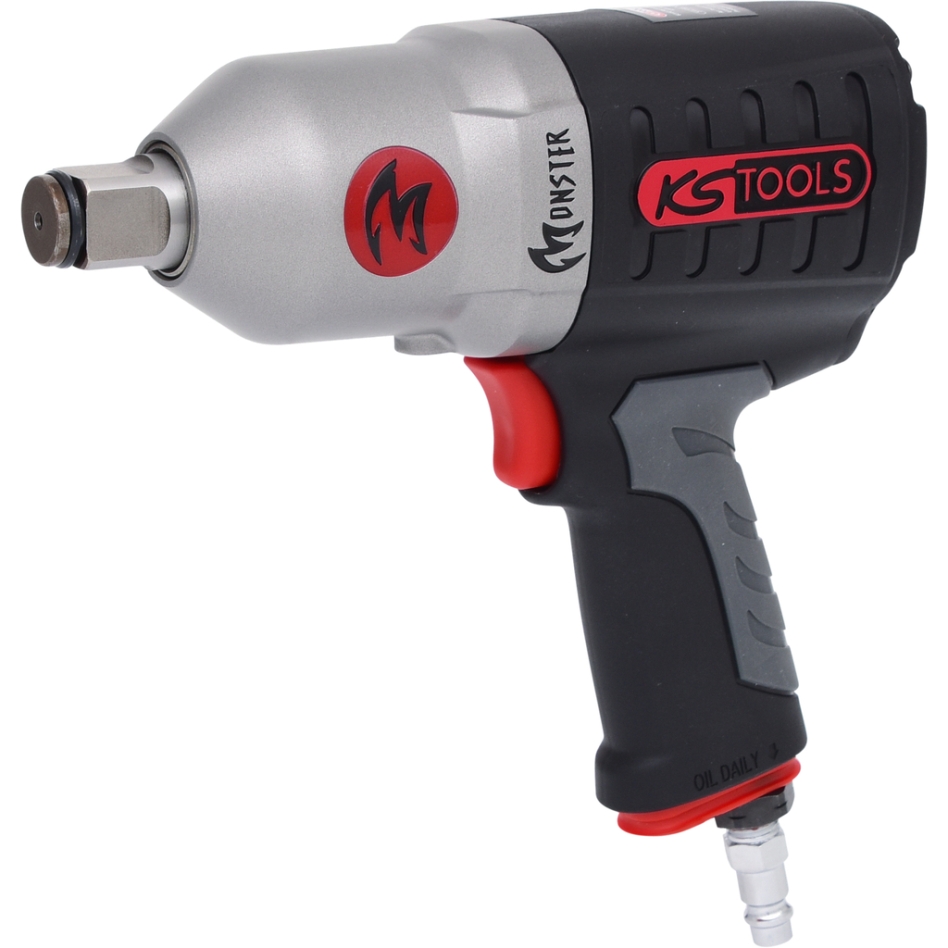

KS Tools 515.3785 3/4 MONSTER powerful pneumatic impact wrench, 1690 Nm
Special features
- with soft-grip handle
- air output downwards through the handle
- with practical reversing lever (left / right)
- easy operation
- 3-way adjustable torque
- high-quality Twin-Hammer-Clutch system
- long service life
- cold-insulated handle
- includes 1/4" quick coupler
- ultralight Aluminium housing
Technical data
- Material1: aluminium
- Square drive: 3/4"
- Noise level (dbA): 104
- Noise level (dbA): 88
- Min. hose diameter: 1/2" - 12.7 mm
- Max. tightening torque3: 3 = 931 Nm
- Max. tightening torque2: 2 = 680 Nm
- Max. Right-hand rotation torque: 1 = 510 Nm
- Max. loosening torque: 1690 Nm
- Recommended tightening torque: 542 Nm
- Vibration acceleration: < 13.56
- Vibration acceleration measurement uncertainty: 1.83
- Air consumption in l/min: 178
- Packaging: Plastic case, extra strong
- Idle speed in rpm: 7930
- Operating mode: Pneumatic
- Width B: 175.0
- Run in inch: 3/4 Package contents: 1
- Total length L in mm: 200.0
- Standard: DIN EN ISO 28927-2
- Max. screw size: M 16
- Handle: Non-slip soft-grip handle
- Working pressure in bar: max. 6.3 bar
- Thread connection: 1/4"PT
- Weight in g: 2200
