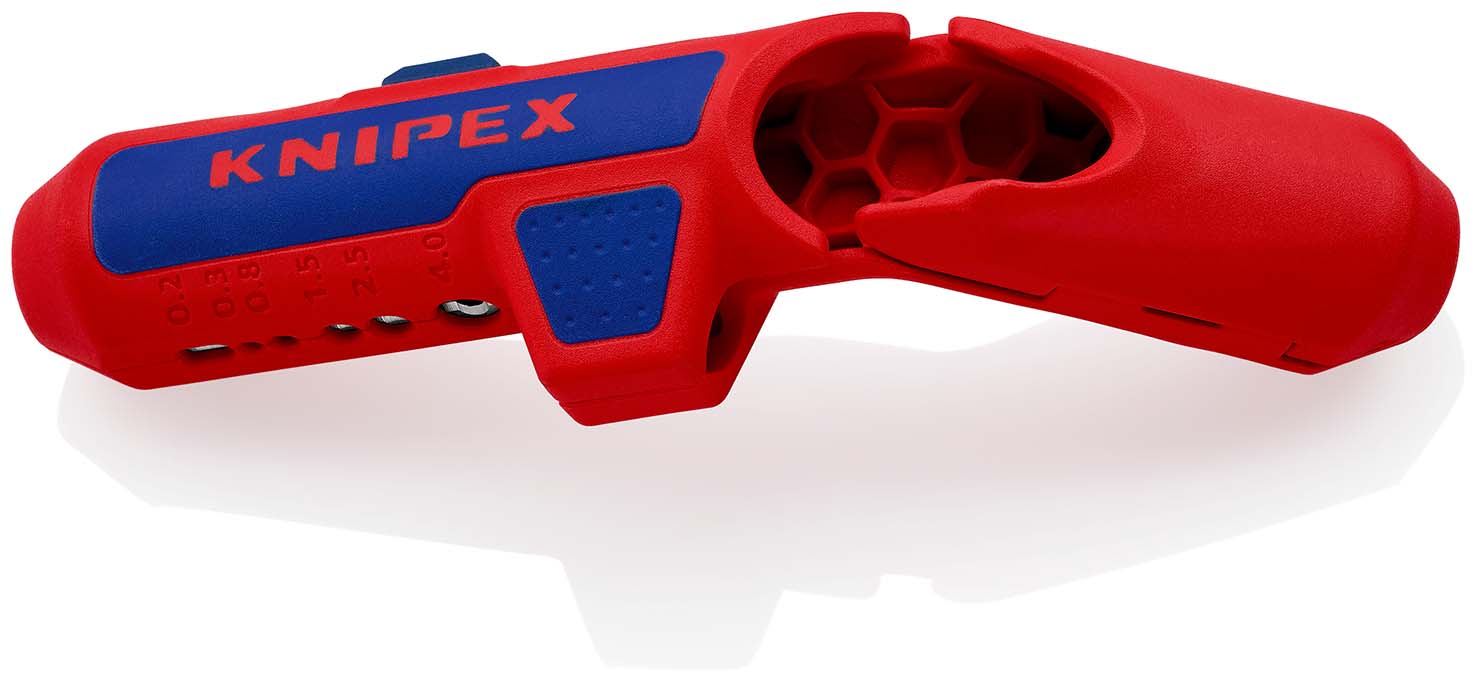

Knipex 169501SB ErgoStrip® Universal Stripping Tool
Special Features
- Fast and precise stripping of all common round cables, moisture-resistant cables (NYM 3x1.5 mm² to 5x2.5 mm²), data and coaxial cables
- Innovative ergonomic pistol grip design for easy scoring, stripping, and longitudinal cutting
- Conical tapered tool for access to narrow spaces
- Stripping options for diameters: 0.2 / 0.3 / 0.8 / 1.5 / 2.5 / 4 mm²
- Easy insertion of conductors thanks to positioners during stripping
- Handy extras: opening spring and locking mechanism for ease of use
- Comfortable insertion of coax- and data cables thanks to opening aid
- Multi-component design with soft plastic zones for extra grip and comfort
- For stripping:
- Round cables: Ø 8–13 mm
- Conductor/wire: 0.2–4.0 mm²
- Coaxial cables: Ø 4.8–7.5 mm
- Data cables: CAT 5 - 7, Twisted Pair (UTP/STP)
Technical data
- Length: 245 mm
- Width: 85 mm
- Height: 37 mm
- Weight: 75 g
- Strip capacity (diameter): 8 - 13 mm
- Strip capacity in mm: 20.2 - 4 mm²
- Strip capacity for round cable (diameter): 8 - 13 mm
- Strip capacity for coaxial cable (diameter): 4.8 - 7.5 mm
- Cable strip value for data cable: CAT 5 - 7, Twisted Pair (UTP/STP)
