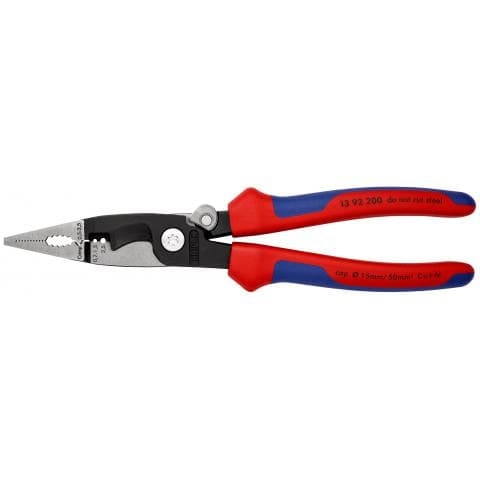

Knipex 1392200 Electrical installation pliers 200 mm
Special features
- 6 functions in one pair of pliers. Multifunctional pliers for electrical installation; for gripping, bending, deburring, cutting cables, stripping and crimping ferrules on flat and round materials
- Smooth gripping surfaces at the tip for damage-free gripping of wires; profiled gripping surfaces and burner hole for gripping flat and round material
- Distinctive outer edge along the gripping surfaces for working on flush-mounted boxes and deburring cable entry holes
- Stripping notches for cables 0.75 to 1.5 mm² and 2.5 mm²
- Crimping position for ferrules 0.5 - 2.5 mm²
- Cable cutter with precision cutting edges (inductively hardened) for Cu and Al cables up to 5 x 2.5 mm² / Ø 15 mm
- Slim design for good accessibility
- Precise, smooth-running screwed hinge.
- In models with an opening spring integrated into the hinge, the activated locking latch keeps the blades closed while retaining other functions remain.
- With the intelligent locking mechanism, you can "grip" without opening the pliers
- The blade remains closed and protected.
Technical data
- Cutting capacity copper cable, multi-stranded: Ø 15 mm
- Cutting capacity copper cable, multi-stranded: 50 mm²
- Stripping capacity for conductors: 0.75—1.5 mm²/2.5 mm²
- Capacity per square millimeter: 0.5—2.5 mm²
- AWG: 1/0
