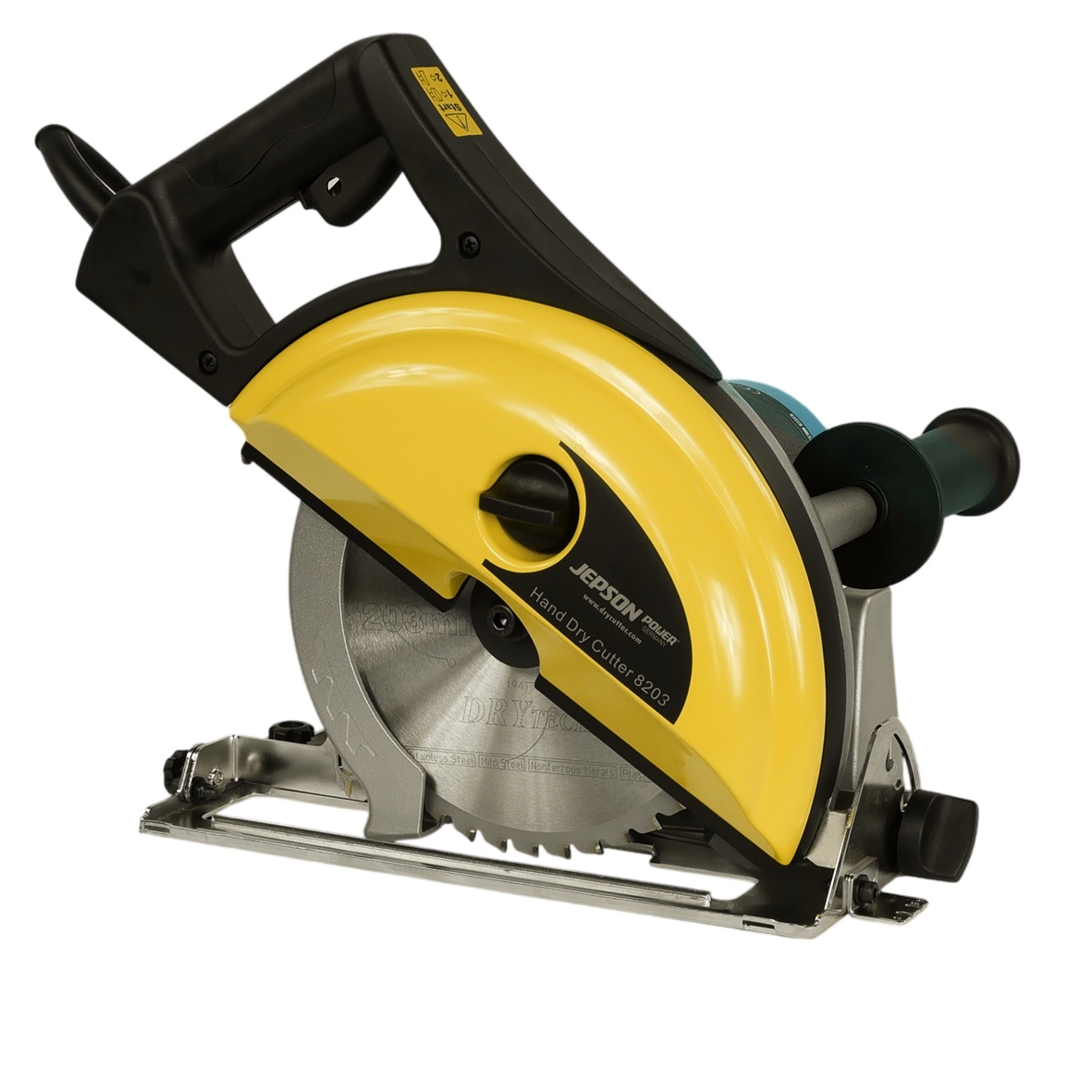

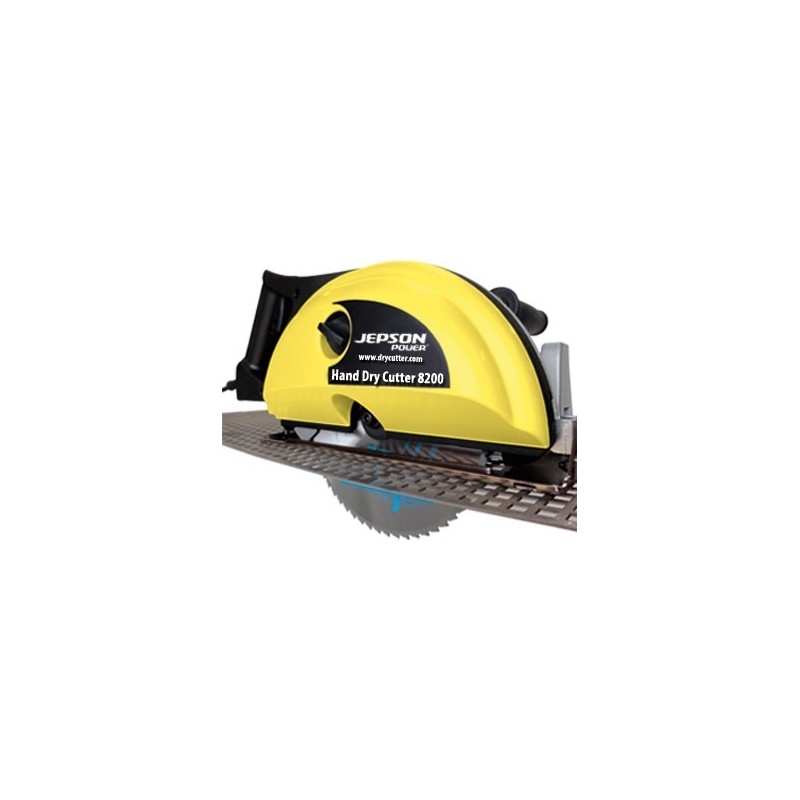

Jepson 8200 Hand Dry Cutter Metal Circular Saw 200 mm
Ideal for cutting steel, sheets, sandwich panels, tubes, profiles, non-ferrous materials, and composite materials.
Special features
- Ideal for cutting steel, sheet metal, sandwich panels, metal sheets, tubes, and profiles made of steel, non-ferrous materials, and composites (optionally with impact-resistant LBS saw blade)
- The JEPSON HAND DRY CUTTER 8200 saw is ideal for cutting steels, sheets, sandwich panels, tubes and profiles, non-ferrous steels, and composite materials.
- As a base, this machine is equipped with a resharpenable blade with a diameter of 200 mm / 42 teeth that is perfect for cutting steel and stainless steel.
- The maximum cutting depth is 67 millimeters at 90 °, 42 millimeters by 45° for a maximum thickness of 10 millimeters.
- For a very solid construction, this saw is quite light as it weighs only 6.3 kilos. It is equipped with a chip collection tray for clean and tidy work.
Technical data
- Power input: 1,700 W.
- Voltage: 230V / 50Hz
- No-load speed: 3,700 min-1
- Net weight: 6.3 kg
- Saw blade size: 200 mm
- Cable length: 5 m
- Max. Cutting depth working area 67 mm 90° cut 42 mm 45° miter cut
- Max. Angle working area 67 x 10 mm 90° saw 42 x 8 mm 45° miter saw
- Max. Working area Square 67 x 5 mm 90° saw 42 x 4 mm 45° miter saw
- Max. Working area round 67 x 5 mm 90° saw 42 x 4 mm 45° chamfer saw
- Max. Working area plan 10 mm 90° saw 8 mm 45° chamfer saw
Scope of delivery
- 48T HM saw blade Ø 200 for steel
- Case
- Manual
