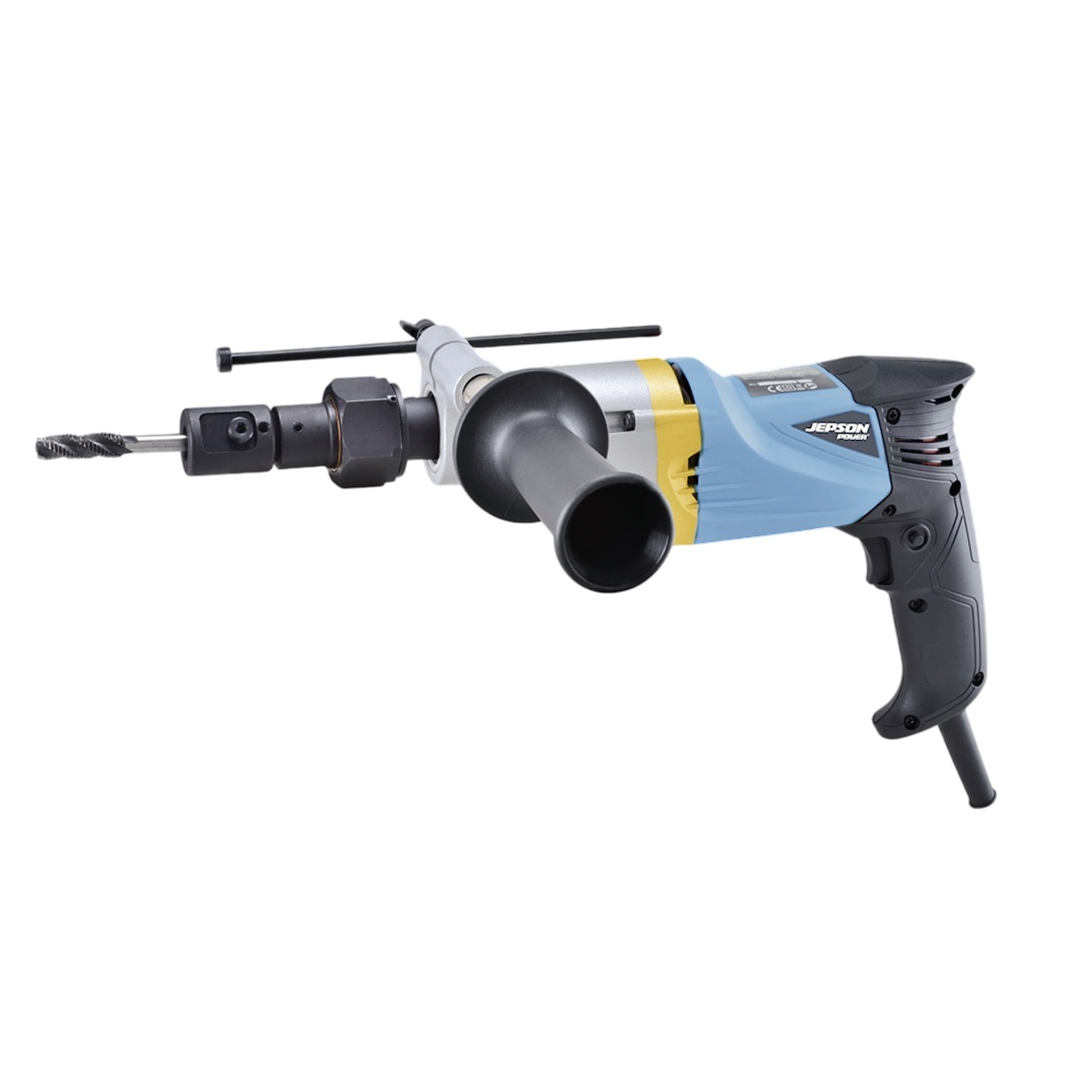

Jepson 495090GSMPRO M18 Electric Tapper
With the GSMPRO M18 tap, you can quickly and easily tap threads in a range of holes. Thanks to the special gear mechanism, the user has precise control.
Special features
- Fast and easy thread cutting in multiple holes
- Special gear design for highly precise operation
- No movement without pressure on the spindle for maximum control
- Right-hand rotation at low speed (280 min™) by applying pressure to the spindle
- Right-hand rotation at higher speed (680 min™) by pulling the spindle
- Specially developed motor with high torque, low speed, and high concentricity accuracy
- Optimal power control for thread cutting in a single operation
- Universal chuck suitable for standard thread cutters M6–M18
- Reliable protection against material and tool breakage
- Ergonomic handle for a straight and stable grip working
- Extra side handle to compensate for lever forces
- Equipped with depth stop for safe threading in blind holes
Technical data
- Cable length: 3 m
- Power consumption: 450 W
- Operating voltage: 230 V
- No-load speed: right: 280, left: 680 min-1
- Insulation protection class: 1 earth conductor
- Overload protection: integrated
- Dimensions: 400 x 80 x 200 mm
- Thread cutter chuck: m6 - m18
- Max. thread cutter capacity: steel: 18 mm, aluminium: 16 mm
Scope of delivery
- 1x Plastic case
- Safety coupling,
- Side handle
- Depth stop
- Tools!
