ITAMAC Panthera S7 table saw 230V 254mm + extra saw blade from Systemi Klein
Special features
- HW110SE table saws have proven for years that they are one of the highest quality table saws worldwide, with over 30,000 satisfied customers.
- The table saws feature state-of-the-art design and engineering, precision-ground cast iron work tables, heavy-duty dovetail housing, and a powerful poly-belt drive system.
- Radiant appearance and finish, extraordinary accuracy and stability, smooth operation, and user-friendly features.
- This series includes a classic 3HP (S7) left-tilting table saw with an advanced splitting wedge changing system.
- All these models are designed for use with the Dado system (adjustable grooving blades for, among other things, dove cutting). of backs)
Features
- Precision-ground cast iron work tables
- Powerful 2.2KW 3HP TEFC induction motor
- Heavy-duty dovetail suspension SE50
- Industrial powerful Poly-belt belt drive
- Quick-system removable splitting wedge

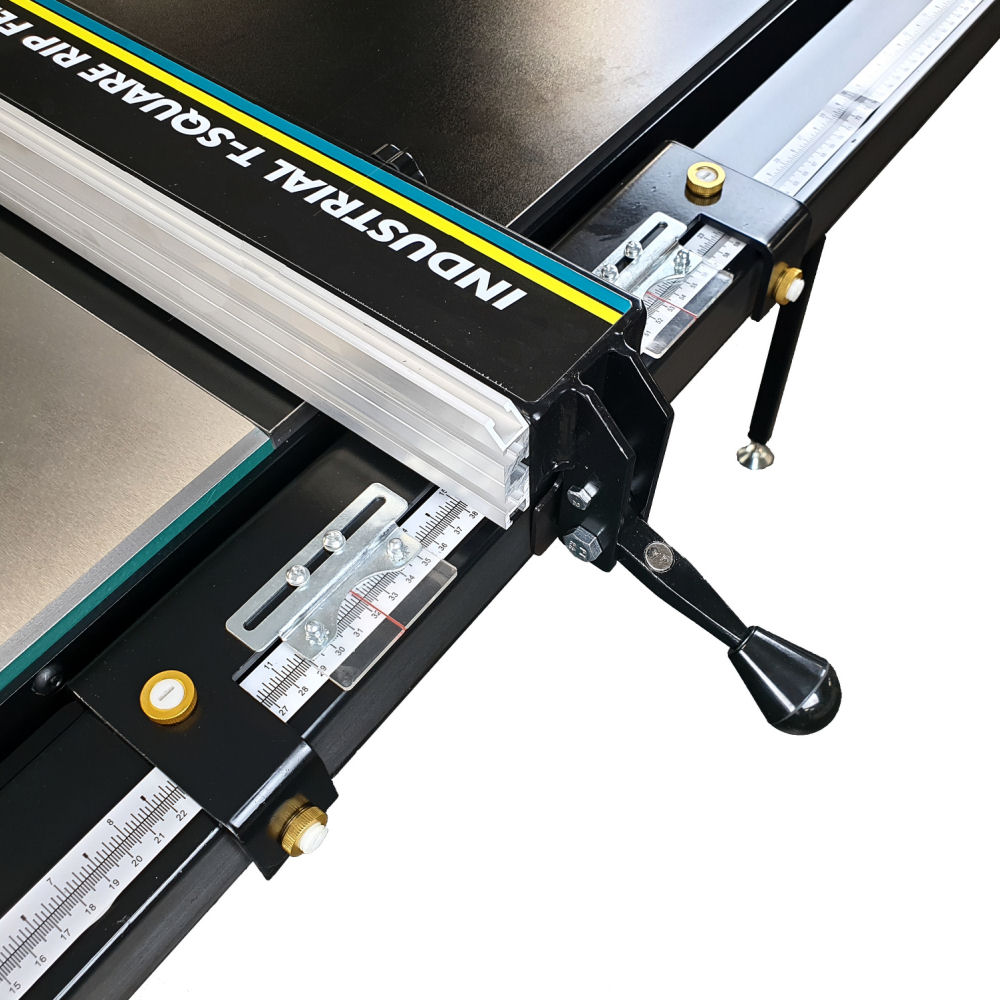

- Deluxe width guide “Master-rip Industrial T-square” for
- accuracy and reliability
- Chrome handwheels with locking mechanism
- Magnetic safety switch with thermal protection

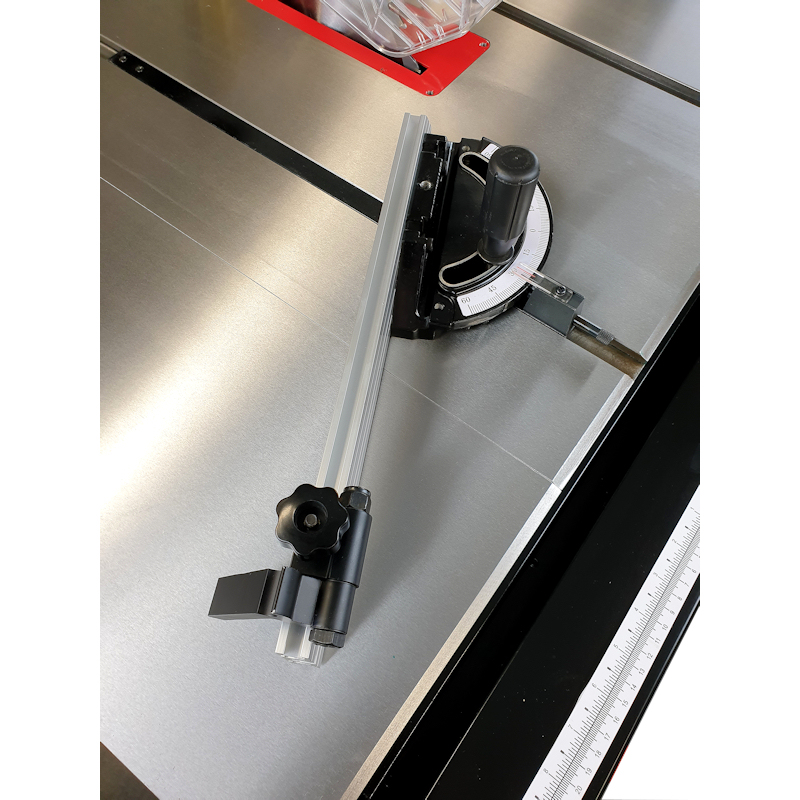

- Mitre guide with high stop and flip-stop
- Precision T-slots left and right along the saw blade
- Standard and dado insert plates insert plate with height adjustment
- Equipped for mounting dado
Technical data
- Table surface 508x686mm
- Saw blade diameter 254x15.875x2.8mm 40T
- Motor TEFC 2.2kw - 3PK induction motor
- Speed 3550RPM
- Miter left 45°
- Max. cutting depth at 0° 80mm
- Max. cutting depth at 45° 55mm
- Max. cutting width (blade right) 750mm
- Max. Sawing width (blade left) 305mm
- Dado diameter 203x15.875mm(optional)
- Dado max. width 20.6mm
- Arbor hole 15.875mm + 30mm
- T slots (2) 19.05*9.5mm
- Dust extraction diameter 100mm
- Electro magnetic switch
- Work table height 875mm
- Work table surface 1321x686mm
- Machine weight 125 kg
Standard included

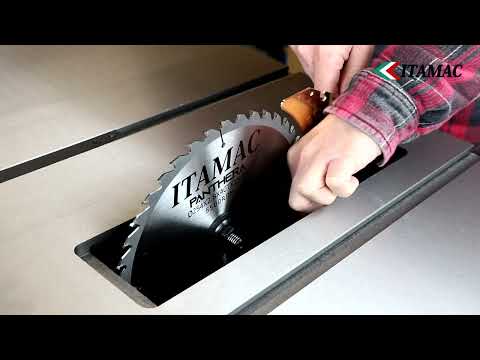

- Saw blade Itamac (reciprocating saw blade)
- Sistemi Klein finishing saw blade (Made in Italy
- BOW Feather Pro compression spring
- deluxe width guide
- miter guide
