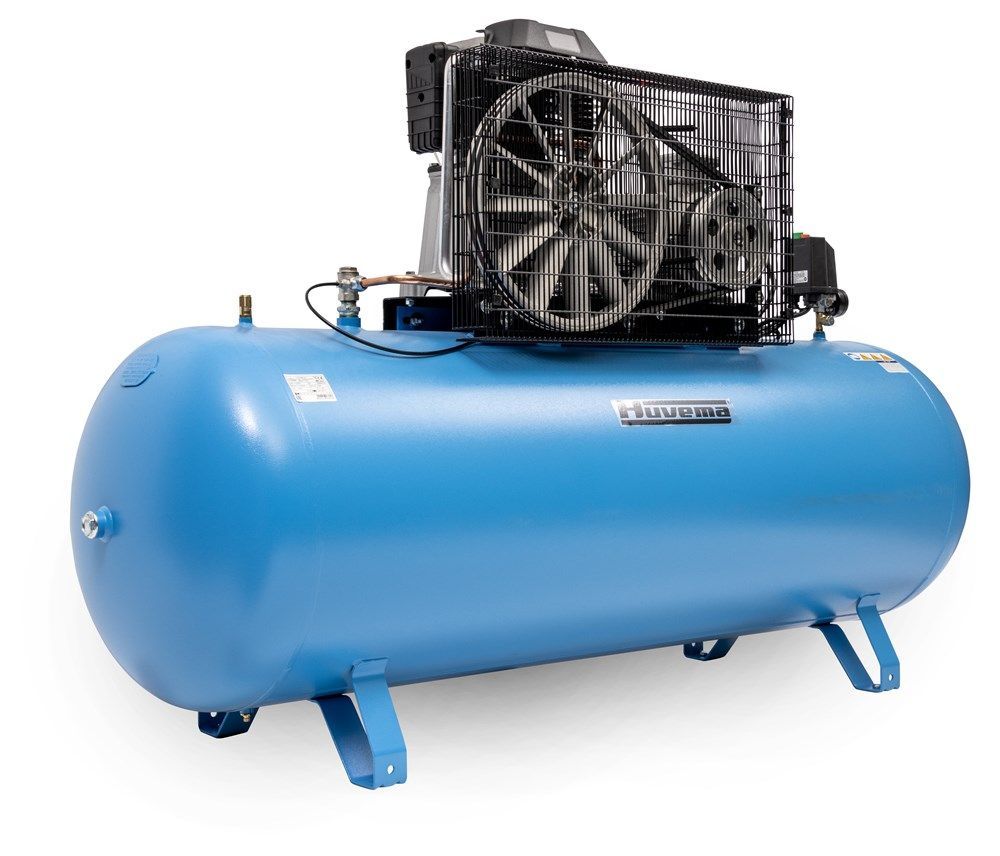

Huvema 21293 V-belt driven piston compressor with oil lubrication 400 V - 500 liters - 5.5 kW
Special features
- The Huvema HU 500/858 belt-driven piston compressor is designed for professionals
- However, thanks to features such as reliability, stability, and robustness, it is also a perfect choice for hobbyists.
- The Huvema HU 500/858 is a perfect solution for occasional or frequent use and is ideal for inflating, blowing clean, nailing and stapling, professional grinding, compressed air painting, hammering, punching, screwing, using impact wrenches, and much more.
- This belt-driven piston compressor features a slow-rotating compressor block for a long service life
- This user-friendly, solid compressor has a high reliability.
- The Huvema HU 500/858 compressor has a low sound pressure LPA of 74 dB (A) at a distance of 4 m (according to the 79/113 EWG standard). During the development of this compressor, special attention was paid to maintenance and service.
- Thanks to the oil-injected operation, you can perform basic maintenance work efficiently and quickly, keeping your maintenance costs low.
Technical data
- Air output: 830 ltr/min
- Tank capacity: 500 ltr
- Maximum pressure: 10 bar
- Rotational speed: 1280 rpm
- Drive: V-belt
- Number of cylinders: 2 pieces
- Number of pistons: 2 pieces
- Lubrication: oil
- Filter reducer: no
- Ball valve: yes
- Front wheel diameter: n/a mm
- Rear wheel diameter: n/a mm
- Condensate drain: yes, manual
- Weight: 255 kg
- Dimensions WxHxD: 1970 x 590 x 1300 mm
- Color: RAL 5015
- Motor power: 5.5 kW
- Voltage: 400 V
- Frequency: 50 Hz
- Phase: 3
- Max. Current: 9.0 A
- Plug: not included
- Protection class: IP54
Scope of delivery
- 1 piece
