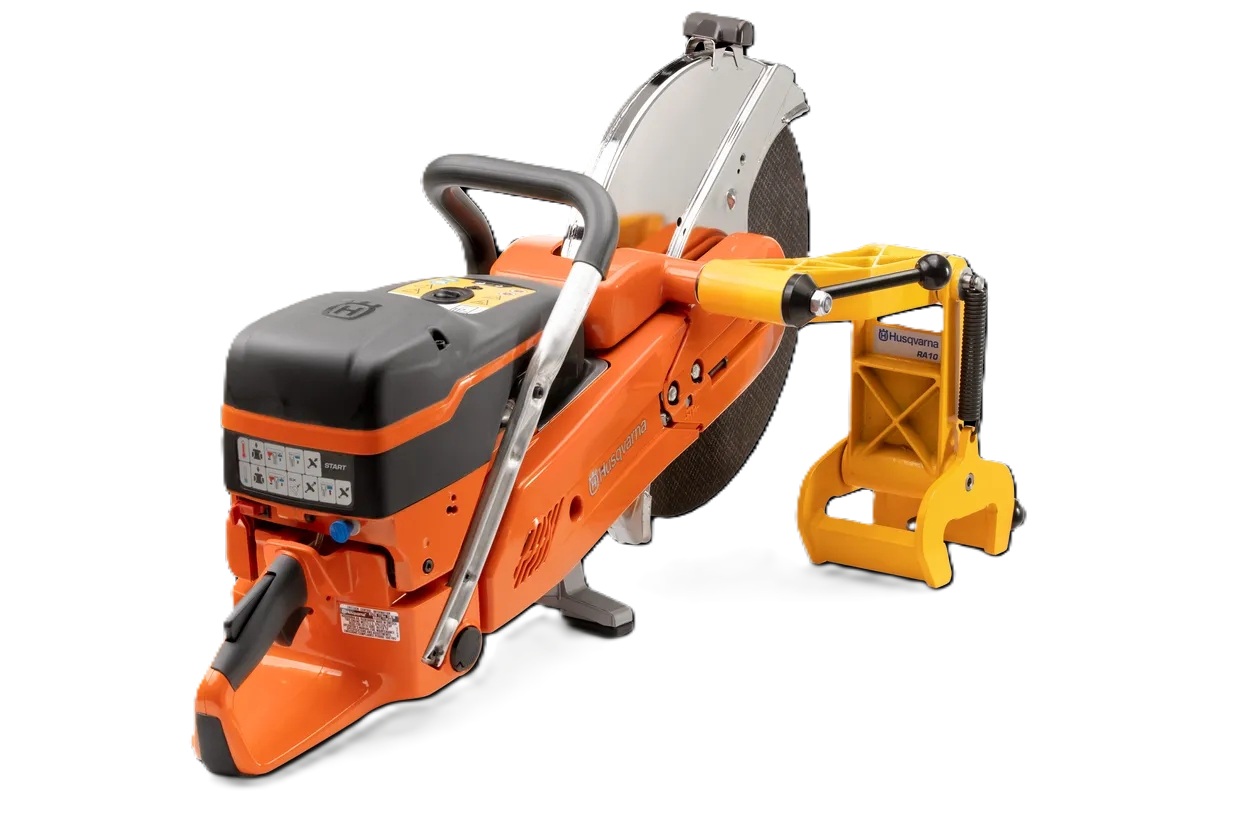

Husqvarna 967981901 K1270 Rail 14" RA10 Motorized Cut-off Cutter 350 mm
Special features
- Cutting rails requires power, precision, and speed.
- The K1270 Rail is the most powerful cut-off cutter on the market, specially designed for railway, tram, and metro rails.
- Cuts quickly and straight. The clamp can be quickly attached to the rails, and thanks to the double rail clamp mounts, you can cut from both sides.
Benefits
- Light and strong: A light, compact, and strong machine with a superior power-to-weight ratio.
- Easy to start: The unique design of the carburetor, cylinder, and digital ignition system, combined with Air Purge and the decompression valve, guarantees an easy start.
- Less Wear: Thanks to the drive belt with fully enclosed drive, which keeps sawdust out.
- Maintenance-free air filter: The only time the filter needs to be checked and replaced is when you notice a lack of power.
- Perfect right-angle cuts: The RA 10 unit is attached to the rail to guarantee a perfect right-angle cut.
- Sawing from both sides: The RA 10 unit is included as standard and enables sawing from both sides of the rail.
- Fast, stable mounting: Quick, stable attachment to the rail.
Technical data
- Output power 5.8 kW
- Maximum engine rpm 9,300 rpm
- Maximum speed 8,400 rpm
- Cylinders 1
- 2 or 4-stroke Two-stroke engine
- Exhaust emissions (CO2 EU V) 726 g/kWh
- Drive Petrol
- Max cutting depth 118 mm
- Blade diameter 350 mm
- Arbor diameter 25.4/20 mm
- Blade thickness, max 5 mm
- Peripheral speed, max 90 m/s
- Type Dry
- Track type Vignole-Rails
- Clamp switch No
- Head width 85 mm
- Product dimensions, length 742 mm
- Product dimensions, width 241 mm
- Product dimensions, height 439 mm
- Weight 15.3 kg
- Packaging length 975 mm
- Packaging width 350 mm
- Packaging height 500 mm
- Item gross weight 35.4 g
- Sound pressure level (LWA) 117 dB(A)
- Sound pressure level at user's ear 104 dB(A)
- Vibrations
- Vibrations on left handle 3.4 m/s²
- Vibrations on right handle 3.5 m/s²
Standard included
- Combination wrench
- Instruction manual
- RA10
- Cutting disc
