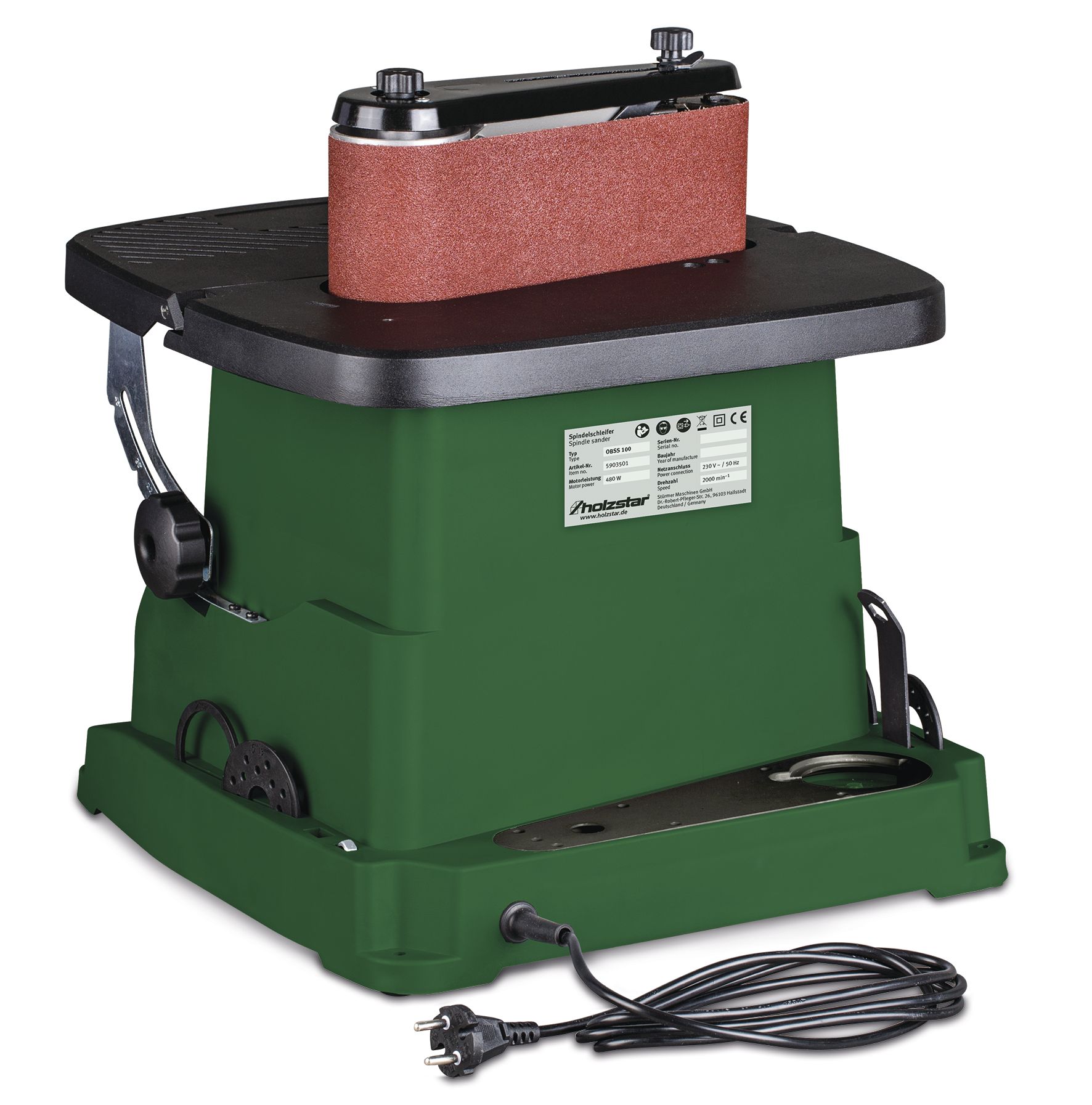

Holzstar OBSS100 Oscillating spindle and belt sander 230V
Special Features
- Compact oscillating spindle and belt sander.
- Belt and spindle sanding can be easily and quickly switched in one device
- High precision and stability thanks to the robust cast iron table
- Continuously tilting table from 0° to 45°
- Powerful motor for all wood types
- Safe and clean working thanks to the built-in dust extraction system (connectable to a dust extractor)
- Built-in storage space for all accessories
- Easy to move and store
Strong Points
- Electric motor with belt drive
- Ball-bearing, permanently smooth-running sheet metal Sliding table
- Stable and torsion-resistant steel frame
- Robust and powerful 5.2 kW motor
- Rotating movement of the wood is stopped by stamped barbs in the tumbler
- Safe and smooth operation, even at full capacity, thanks to a movable handle that secures the wood in the tray.
Applications
- Ideal for the craftsman, hobbyist, and training centers
Technical data
- Voltage V 230
- Power kW 0.45
- Sanding belt dimensions mm 610x100
- Cast iron work table mm 430x410
- Work table angle ° 0-45
- Oscillation rpm 58
- Diameter extraction nozzle mm 38
- Weight kg 12.00
- Dimensions (lxwxh) mm 530x480 x480
- Spindle diameter: 12.7 mm
- Oscillation stroke: 16 mm
- Max. sanding height: 98 mm
- Sanding length: 220 mm
- Sanding width: 100 mm

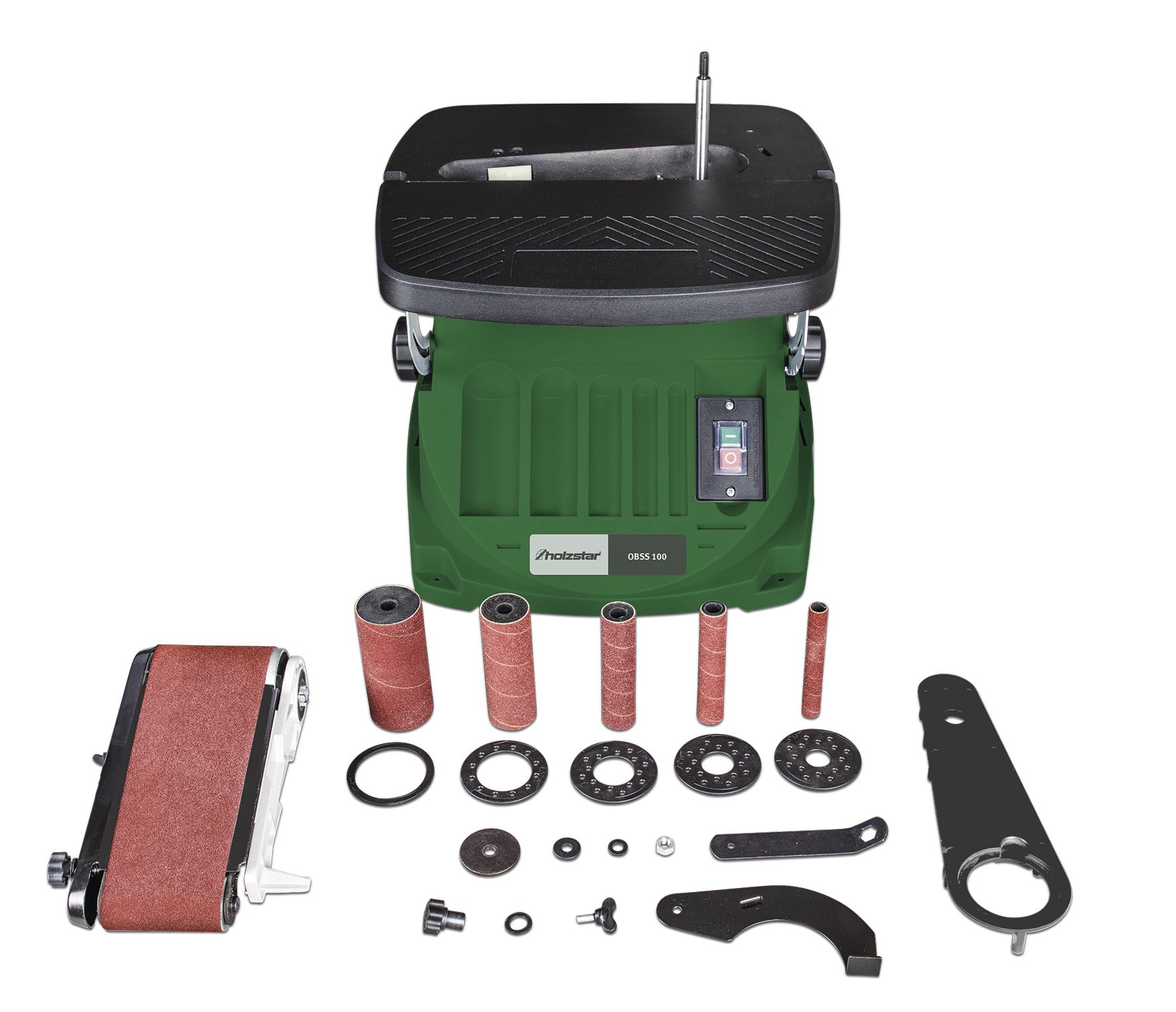

Scope of delivery
- 5 sanding sleeves K80 - Ø 13 / 19 / 26 / 38 / 51 mm
- 4 rubber sanding rollers, length 115 mm - Ø 19 / 26 / 38 / 51 mm
- 5 table brackets - Ø 13 / 19 / 26 / 38 / 51 mm
- 3 spindle discs - Ø 16 / 22 / 44 mm
- Sanding belt mount with cover
- Workpiece stop
- Mounting tools
