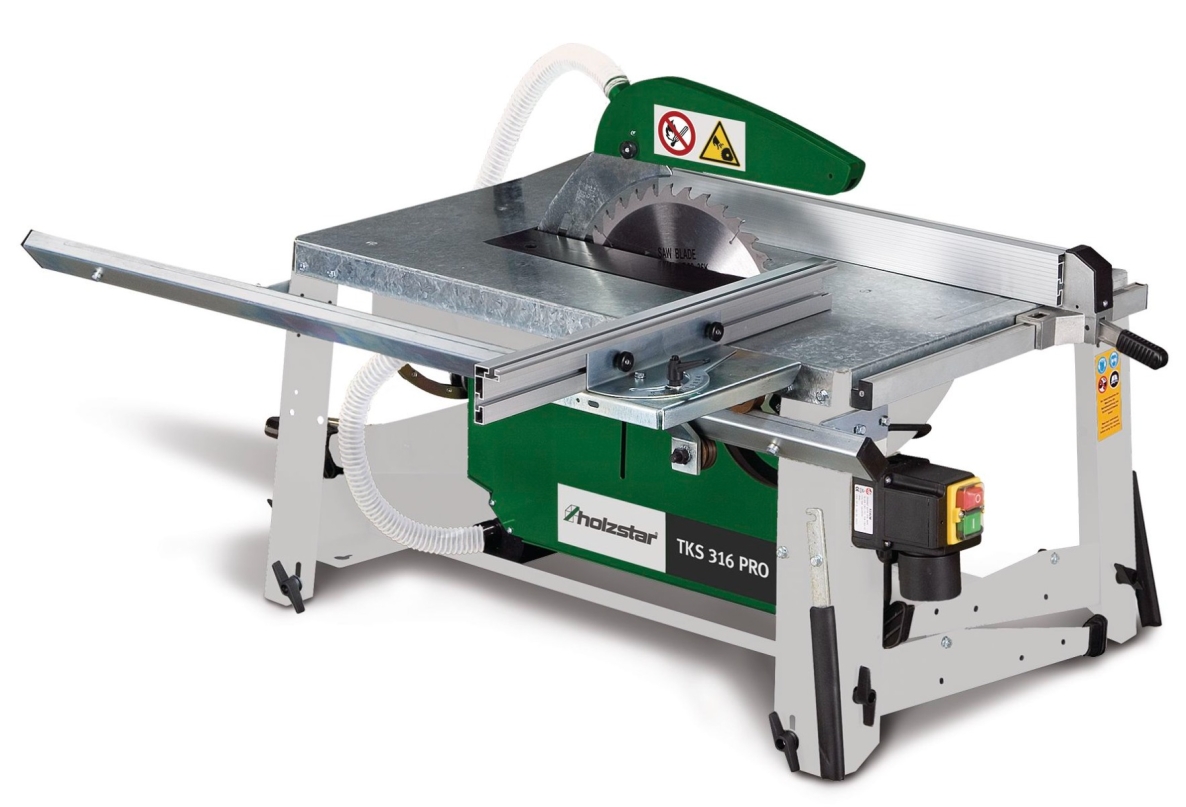

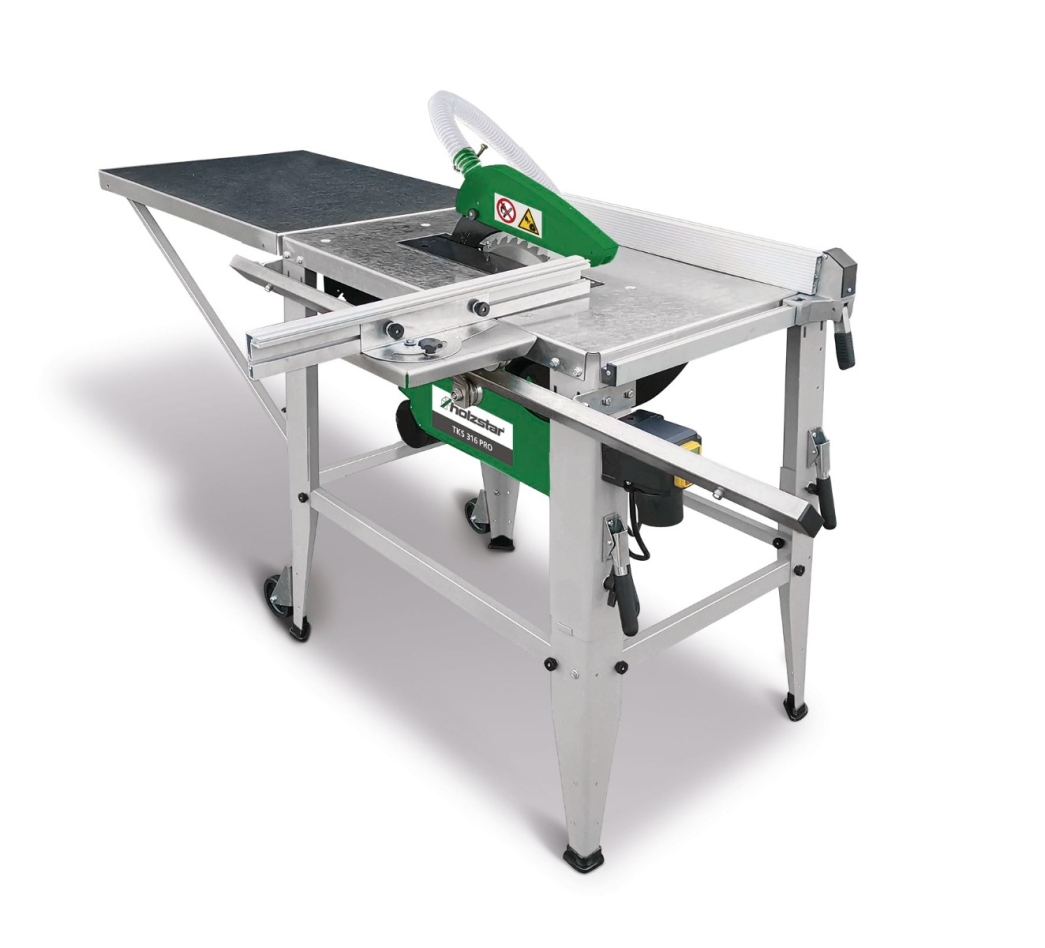

Holzstar TKS316PRO230V Table Saw 230V
Universal precision table saw for the professional
Special Features
- Large-dimensioned steel work table, galvanized against corrosion
- Table extensions can also be mounted on the right as a cross extension
- The saw blade is tiltable from 90 to 45°, can be precisely and easily adjusted to within 1° accuracy
- thanks to handwheel and scale
- Large central extraction nozzle of Ø 100 mm
- Height adjustment of the saw blade thanks to handwheel on the operator's side
- The stable saw unit allows for precise cuts
- Powerful industrial motor with brake, designed for continuous working
- Saw blade guard with extraction hose
- Parallel fence with eccentric quick-release lever
- Sliding carriage with ball bearings adjustable from -45° to +45° with quick-release lever
- Easy to move thanks to base with integrated transport wheels and handles
Technical data
- Voltage V230
- Power kW2.2
- Motor type electric
- Saw blade diameter mm315
- Speed rpm2800
- Maximum miter angle saw blade°90 - 45
- Dimensions Work table (LxW)mm 800 x 550
- Working heightmm 850
- ø extraction (top)mm 38
- ø extraction (bottom)mm 100
- Maximum cutting depthmm 90/50
- Weightkg 60.00
- Dimensions (LxWxH)mm 1,350x1,250x1,000
Scope of delivery
- Base
- Table extension
- Parallel stop
- Length stop without aluminium profile
- Carbide saw blade ø 315 mm T36
