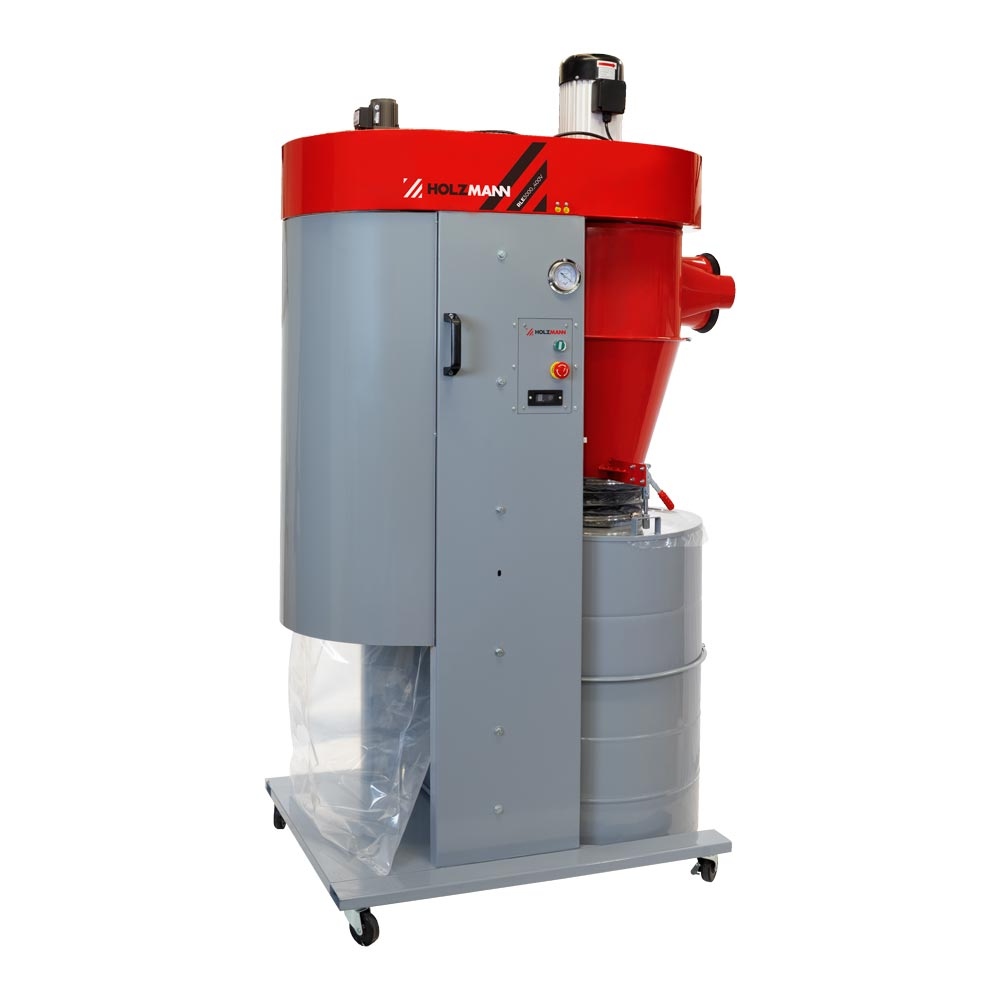

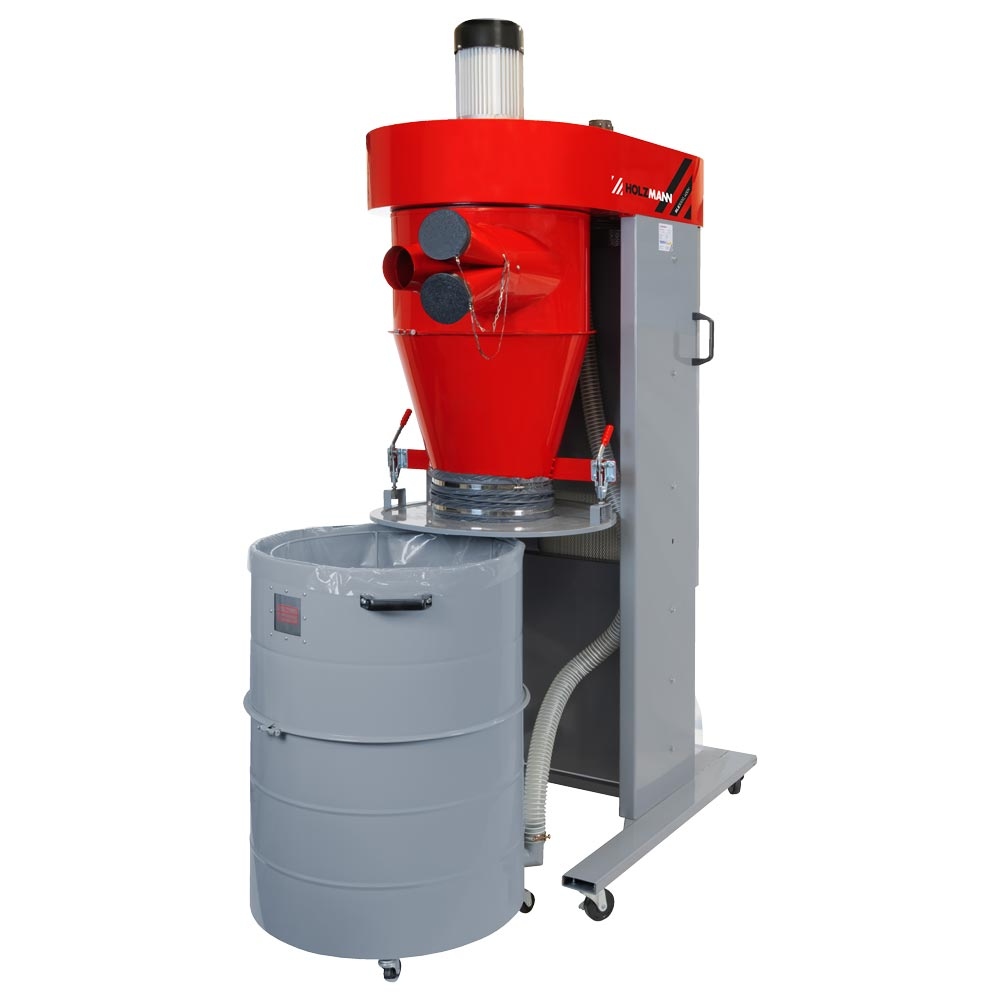

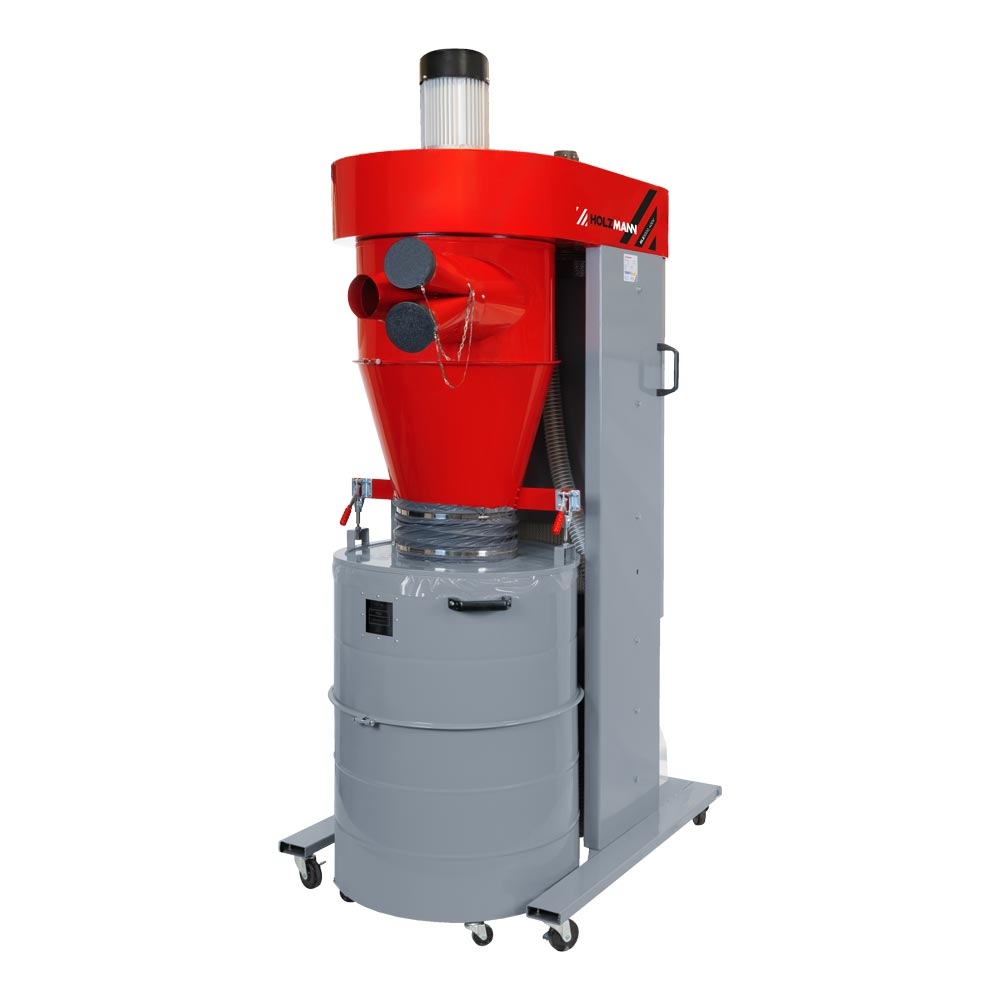

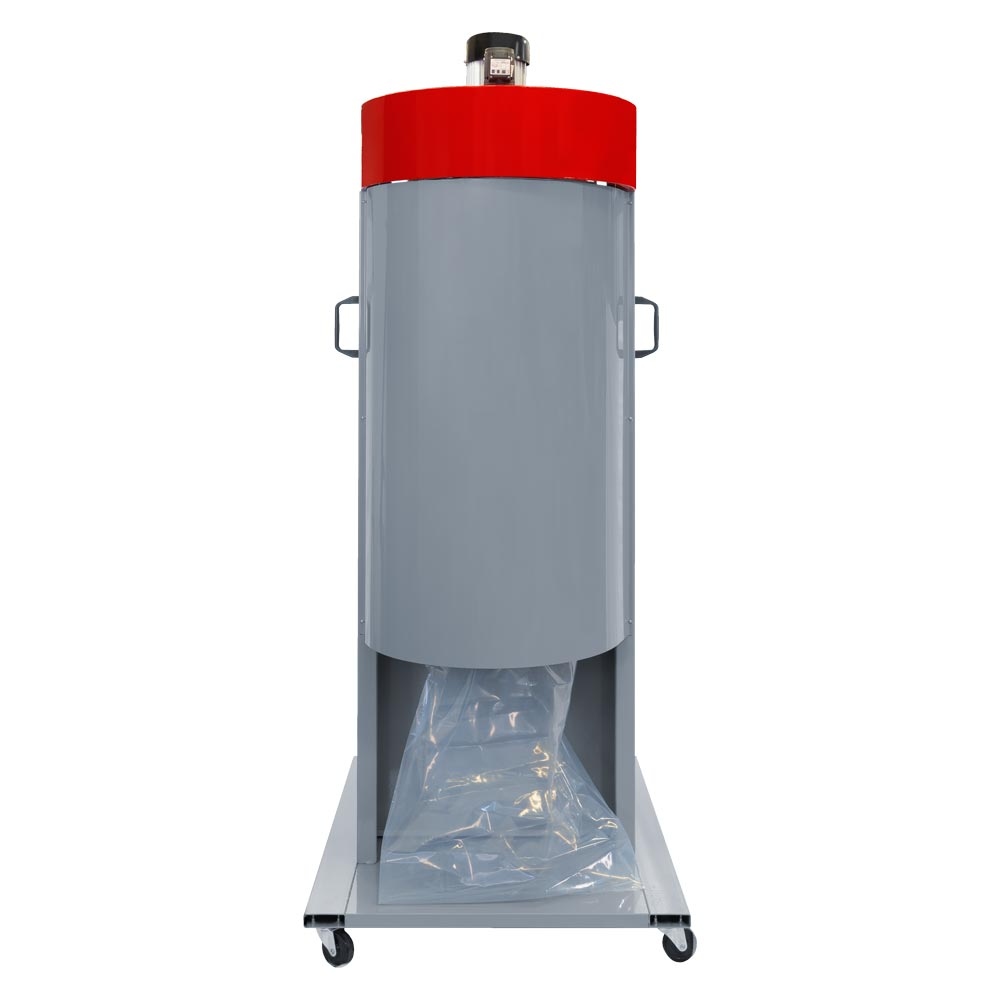

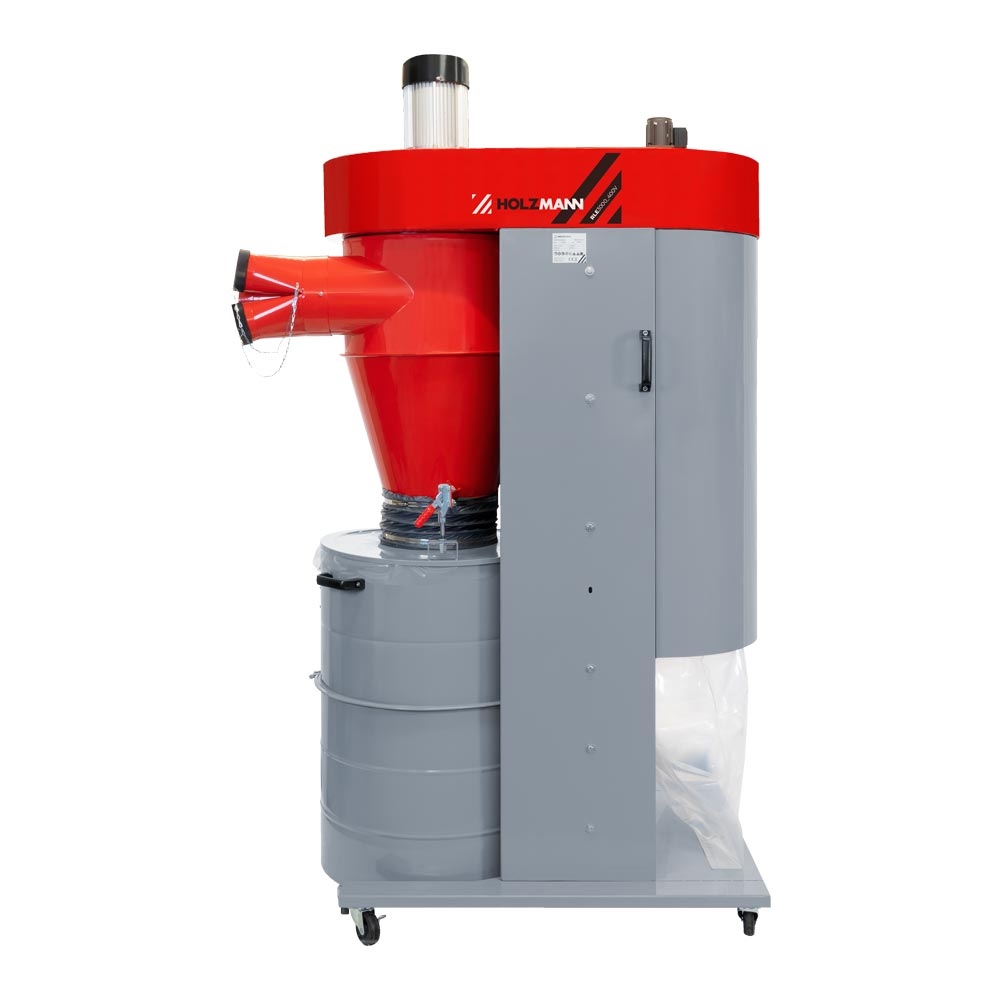

Holzmann RLE3000_400V Cyclone Dust Extractor 400V
Special Features
- The HOLZMANN RLE3000_400V cyclone dust extractor with remote control, static vacuum pressure gauge, cyclone separator, and filter cartridge is the ideal dust extraction system for your woodworking machines.
Benefits
- Separation into cyclone separator with filter cartridge
- Inlet adapter for connecting up to 3 woodworking machines
- Remote control to start/stop the dust extractor
- Incl. transport device (wheels)
- Display of machine running time
- Automatic cleaning of the filter cartridge after switching off the dust extractor, to ensure consistent operation of the dust extractor (incl. collection filter bag).
- Collection bin with wheels and sight glass for checking the fill level of the collected wood chips/dust
Technical data
- Motor power s1 in W 3000
- Voltage 400 V / 50 Hz
- Dust extraction port in mm 1x Ø200 | 3x Ø100
- Total dimensions in mm 1320 x 900 x 2190
- Suction capacity in m³/h 3200
- Fan wheel diameter in mm Ø 400
- Hypotension in Pa 2470
- Chip bag capacity in l 327 | 80
- Sound power level in dB(A) 87
- Sound pressure level in dB(A) 74
- Gross weight in kg 197
- Net weight in kg 153
- Packaging width in mm 760
- Packaging length in mm 1,240
- Packaging height in mm 1,160
Scope of delivery
- On pallet
