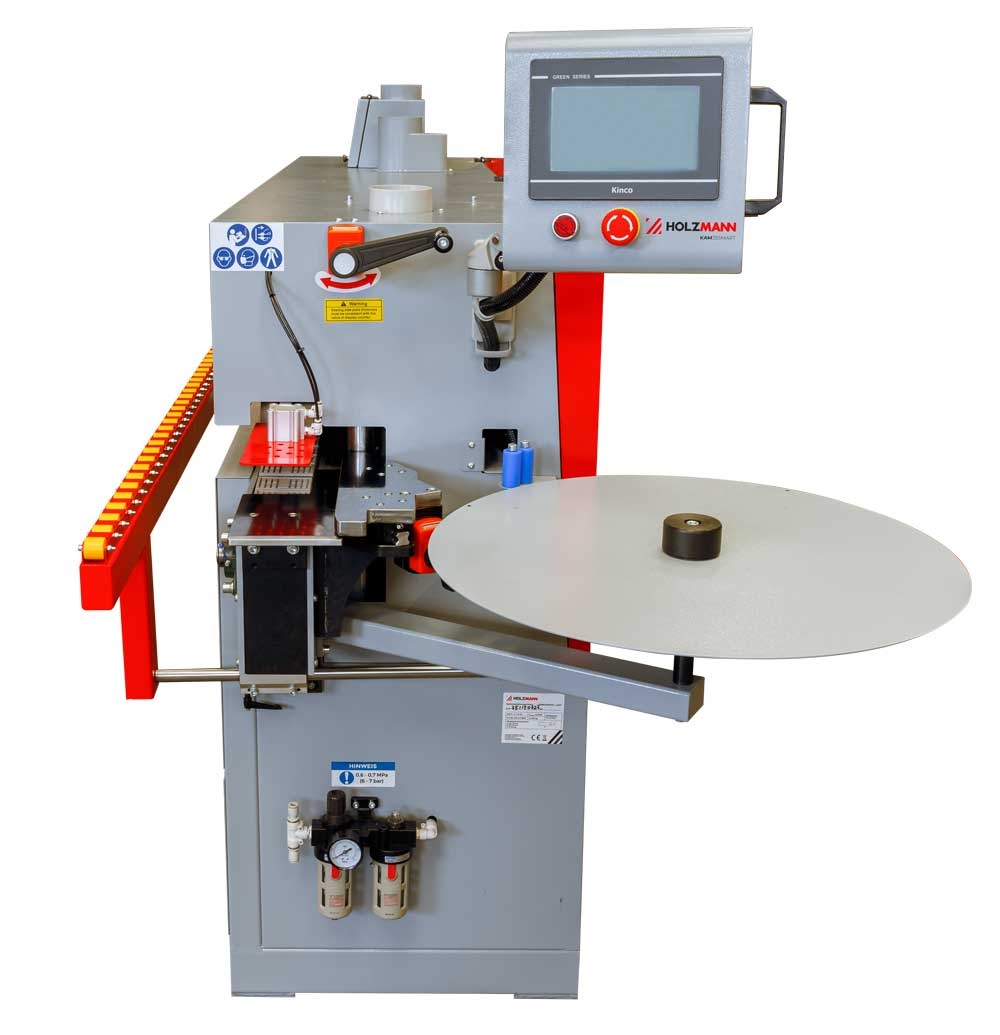

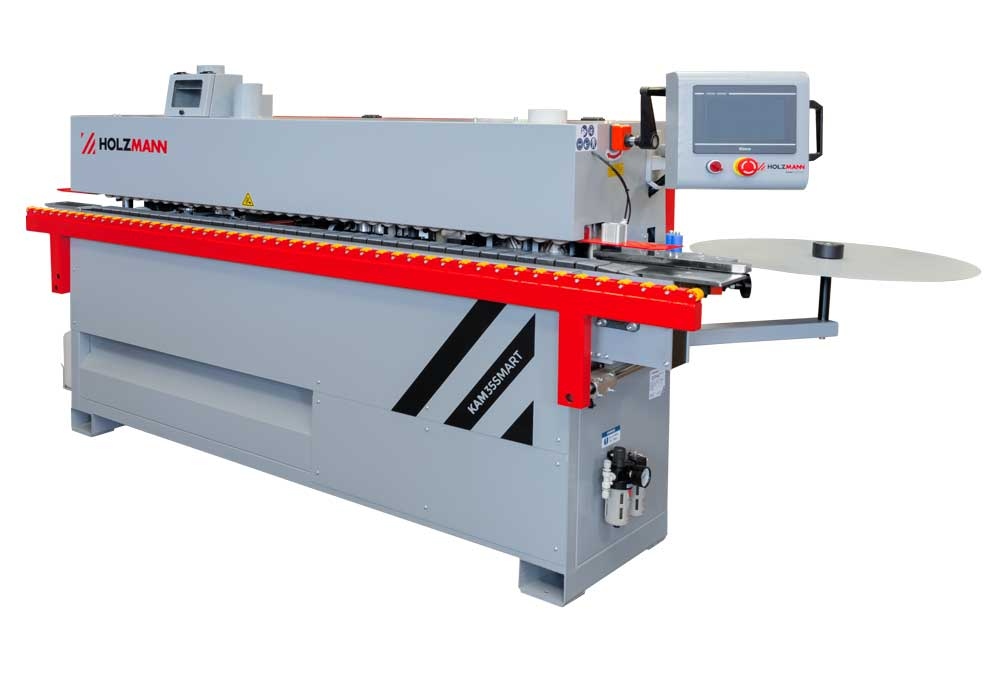

Holzmann KAM35SMART_400V Edge Banding Machine
Special Features
- HOLZMANN Edge Banding Machine KAM35SMART_400V – Efficient edge processing in a compact format
- The KAM35SMART_400V from the HOLZMANN KAM35 series is the ideal solution for precise and economical edge banding – perfectly suited for small to medium-sized businesses.

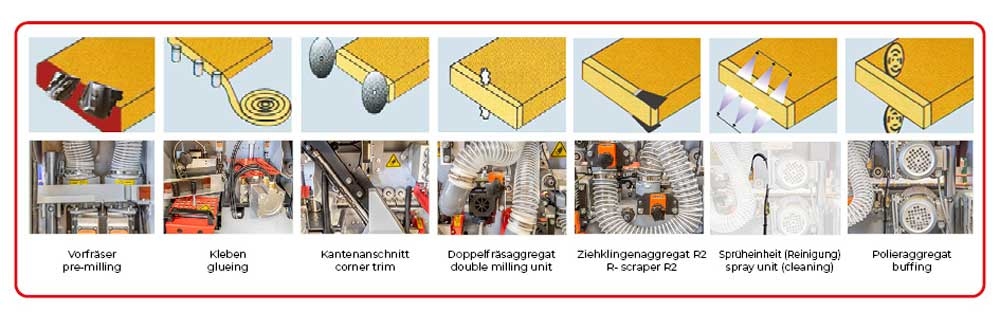

- Equipped with a joint milling unit for perfect edge preparation, a gluing system for clean and uniform bonding, edge pressing and trimming for precise finishing, a milling and scraping unit, and a spraying and polishing unit for a precise finish.
- Thanks to its compact design, the machine occupies minimal workshop space and delivers professional results of industrial quality.
- The extensive range of models in the KAM35 series enables you to select exactly the machine that meets your company's specific requirements.
Strong points
- Touchscreen display
- Single-sided automatic edge banding machine with
- Joining unit (double cutter rotating left/right) equipped with Ø80 mm cutters, a 1.1 kW motor per unit, and a cutter speed of 12,000 rpm.
- Glue tank with temperature control and direct glue dispensing for straight workpieces.
- Miter saw unit for cutting the edge to length (one unit for front and back edge) 0.37 kW motor and 12,000 min-1 (saw blade speed)
- Double milling unit for milling off edge protrusions on the workpiece (top/bottom), 0.37 kW motor per unit and 12000 min-1
- Scraper blade R2 (top/bottom) (can be activated or deactivated via a switch)
- Spray unit for applying a cleaning agent before the polishing unit.
- Polishing unit (top/bottom) 0.18 kW per unit and 1400 min-1
- Automatic and constant plate feed thanks to chain drive and powerful motor.
- The adhesive temperature can be adjusted electronically via the touchscreen.
- Edge band support table
Technical data
- Motor power S1 in W 6160
- Voltage 400 V / 50 Hz
- Feed speed 8 m/min
- Table height in mm 850
- Extraction port in mm Ø 100
- Installation dimensions in mm 2790 x 1320 x 1380
- Minimum workpiece length in mm 70
- Minimum workpiece width in mm 80
- Minimum workpiece thickness in mm 12
- Maximum workpiece thickness in mm 45
- Edge width in mm 15-48
- Edge thickness in mm 0.4 - 3
- Working pressure in bar 6-7
- Sound pressure level in dB(A) 78
- Gross weight in kg 745
- Net weight in kg 655
- Package width in mm 725
- Package length in mm 2,625
- Packaging height in mm 1,250
Scope of delivery
- 2x joint cutters (ø80xø20x55 mm)
- 2x saw blades (ø104xø22x3 mm)
- 2x polishing discs (ø150 mm)
- 2x scrapers
- 2x cutters for double cutter unit
