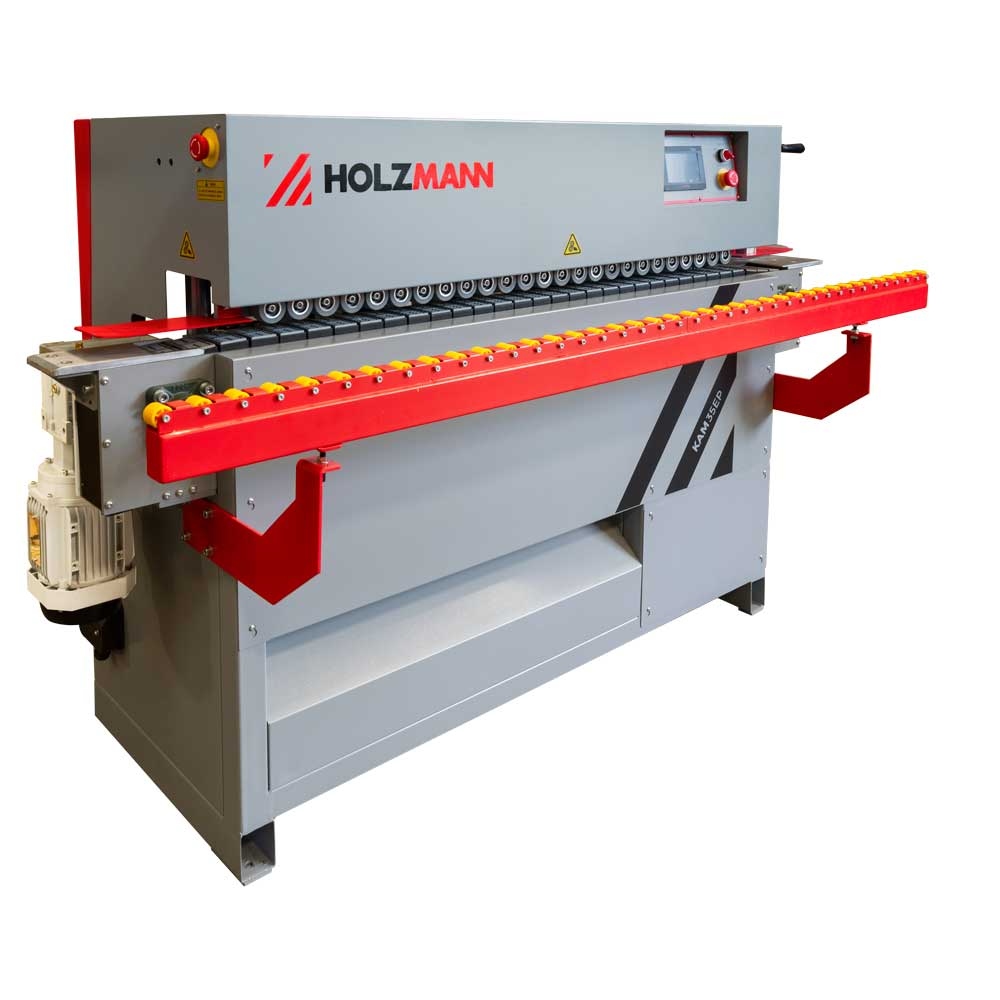

Holzmann KAM35EP_400V Edge Banding Machine
Special Features

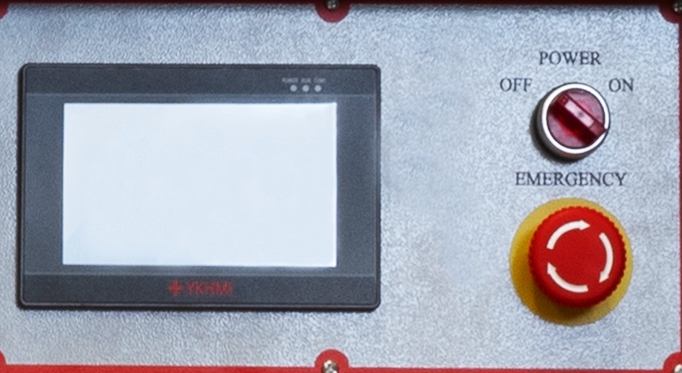

- Touchscreen display
- single-sided automatic edge banding machine with
- Glue tank with temperature control and direct glue dispensing for straight workpieces.

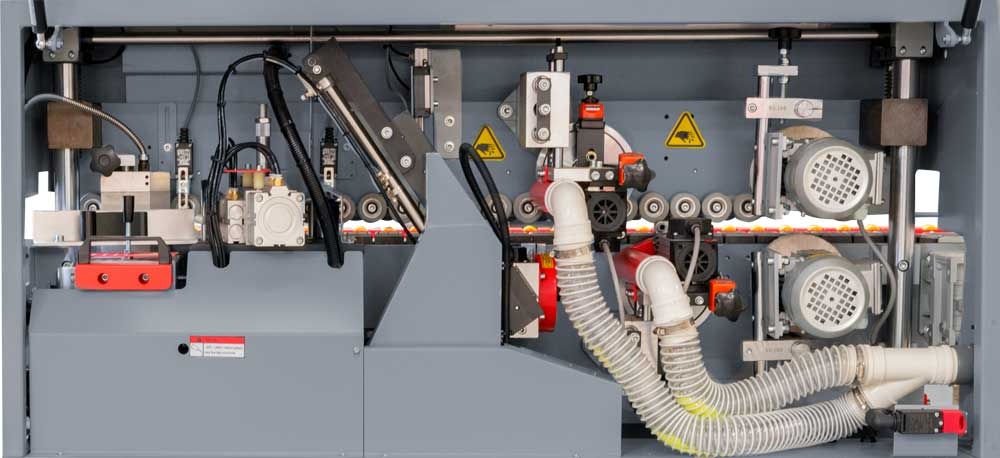

- Miter saw unit for cutting the edge to length (one unit for front and rear edge) 0.37 kW motor and 1380 min-1 (saw blade speed)
- Double milling unit for milling off edge protrusions on the workpiece (top/bottom), 0.37 kW motor per unit and 12000 min-1
- Polishing unit (top/bottom) 0.18 kW per unit and 1400 min-1
- Automatic and constant panel feed thanks to chain drive and powerful motor.
- The adhesive temperature can be adjusted electronically via the touchscreen.
- Edge banding support table
Technical data
- Motor power S1 in W 3960
- Voltage 400 V / 50 Hz
- Feed speed 8 m/min
- Table height in mm 850
- Extraction port in mm 1 x Ø 50
- Installation dimensions in mm 2350 x 1050 x 1320
- Minimum workpiece length in mm 70
- Minimum workpiece width in mm 80
- Minimum workpiece thickness in mm 12
- Maximum workpiece thickness in mm 45
- Edge width in mm 15 - 48
- Edge thickness in mm 0.4 - 3
- Working pressure in bar 6
- Sound pressure level in dB(A) 78
- Gross weight in kg 560
- Net weight in kg 495
- Packaging width in mm 645
- Packaging length in mm 2,000
- Packaging height in mm 1,235
Scope of delivery
- 2x saw blades (ø104xø22x3)
- 2x polishing discs (�¸150mm)
- 2x milling tools for double milling unit
