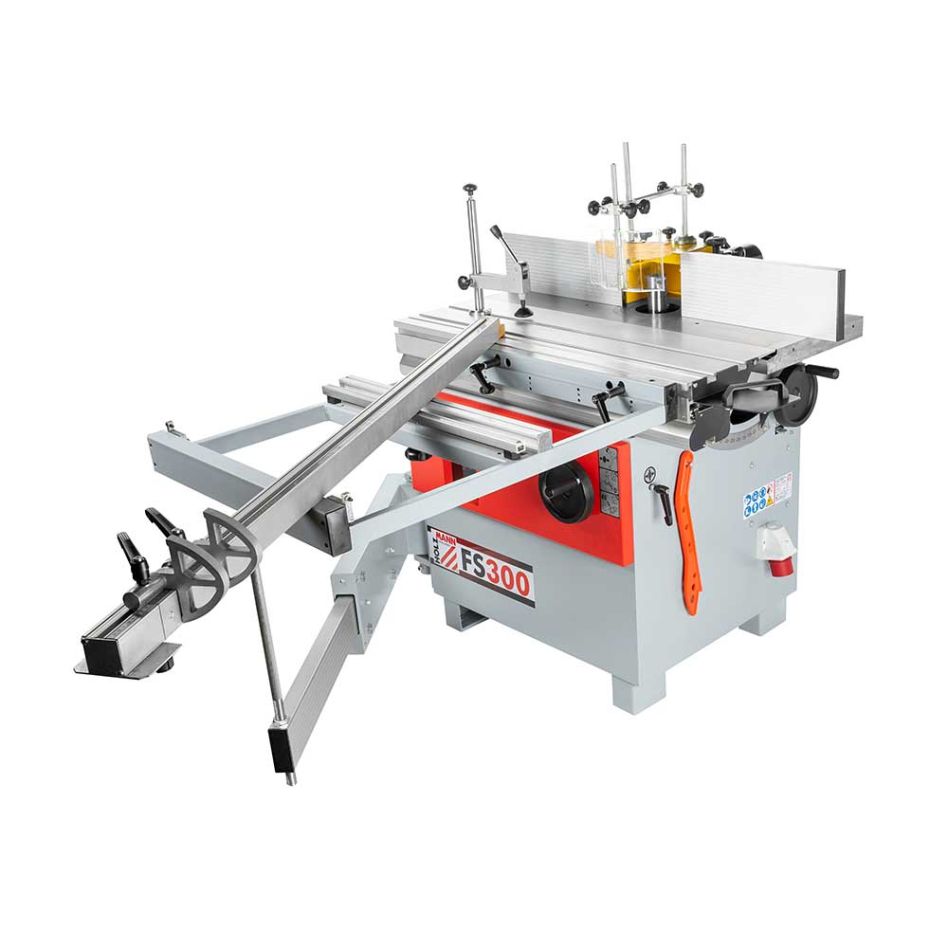

Holzmann FS300_400V Milling Machine 400V
Description
- Tilting spindle table milling machine with sliding table and support table
- Heavy-duty, very high-quality overall design
- High-quality milling fence with hold-down system and fine adjustment
- 4 milling speeds
- Swivel spindle standard,
- Standard with under-table extraction
- Installation dimensions (L x W x H):
- 2155 x 990 x 1430 without sliding table dimensions
- 2155 x 2400 (+1150) x 1430 with sliding table format
Technical specifications
- Motor power S1: 3000
- Motor power S6: 4000
- Voltage: 400V / 3 / 50Hz
- Table dimensions in mm: 1000 x 350
- Table height in mm: 890
- Trolley dimensions in mm: 1000 x 310
- Suction connection in mm: 100
- Sound power level in dB(A): 96.8
- Sound pressure level in dB(A): 80.7
- Milling spindle diameter in mm: 30
- Milling spindle speed in min-1: 1400 / 3500 / 6000 / 8000
- Spindle stroke in mm: 130
- max. cutter diameter in mm: 175
- Cutter spindle tilt: (-5)0-45°
- max. clamping height in mm: 140
- Table opening in mm: 178
- max. retractable tool diameter in mm: 170 (90°), 100 (45°)
- max. tool diameter over table in mm: 200
- Milling fence in mm: 450 x 160 (L + R)
- package: x
- Weight 280 kg
Scope of delivery
- Panel saw table including telescopic fence with 2 stop flaps and pressure device
- Blade guard
