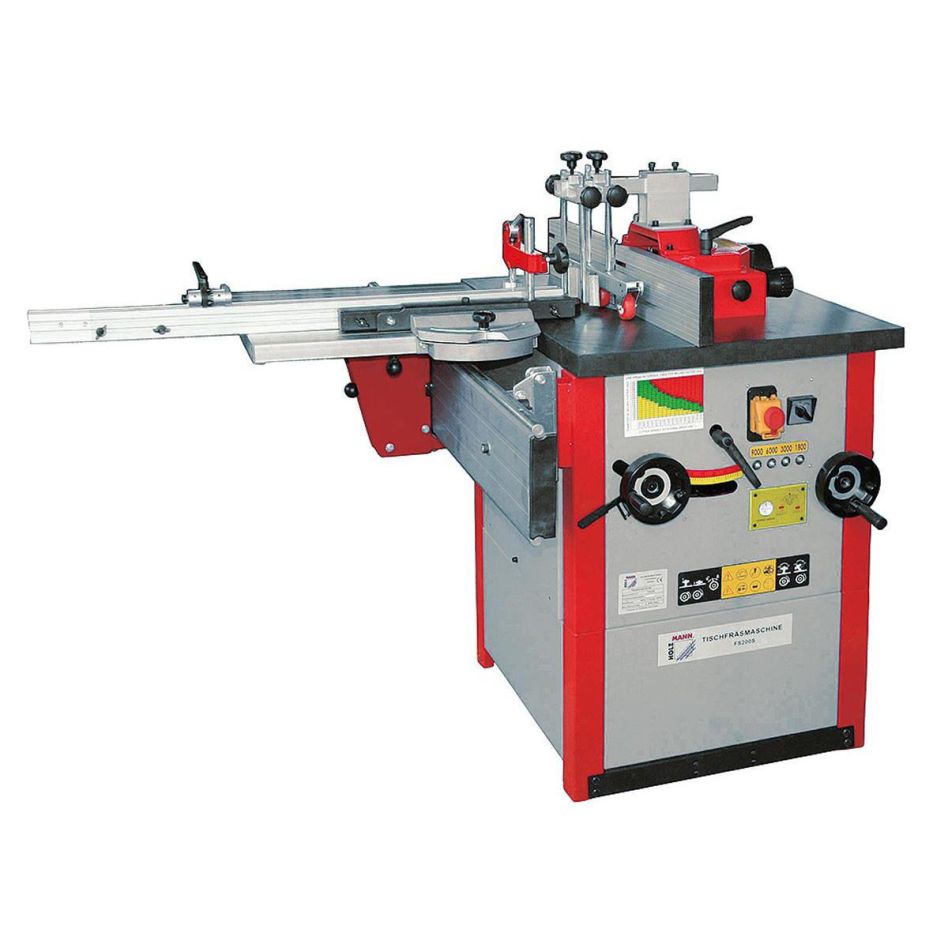

Holzmann FS200S_400V Milling Machine 400V
Description
- Swiveling milling spindle standard (-5° - +30°)
- Sturdy and torsion-free cast iron table
- High-quality milling stop with hold-down system and fine adjustment
- Standard 4 milling speeds
- Maximum cutting diameter 200 mm
- Large handwheels for spindle adjustment
- Speed readable via LED display
- Sliding table available as an option and can be retrofitted
- Includes sanding roller
Technical specifications
- Motor power S1: 2800
- Motor power S6: 3750
- Voltage: 400V
- Table size in mm: 710x640
- Table height in mm: 900
- Suction connection in mm: 100
- Milling spindle diameter in mm: 30
- Milling spindle speed in rpm: 1800/3000/6000/9000
- Spindle stroke in mm: 100
- Cutter spindle tilt: -5° +30°
- max. clamping height in mm: 105
- Table opening in mm: 200
- Maximum tool diameter retractable in mm: 190
- max. tool diameter above table in mm: 190
- Milling stop in mm: 360x120
- Weight 170kg
Scope of delivery
- Grinding attachment
- Circuit cover according to CE including aluminium stops
- Pressure clamp
- Milling cutter protection
