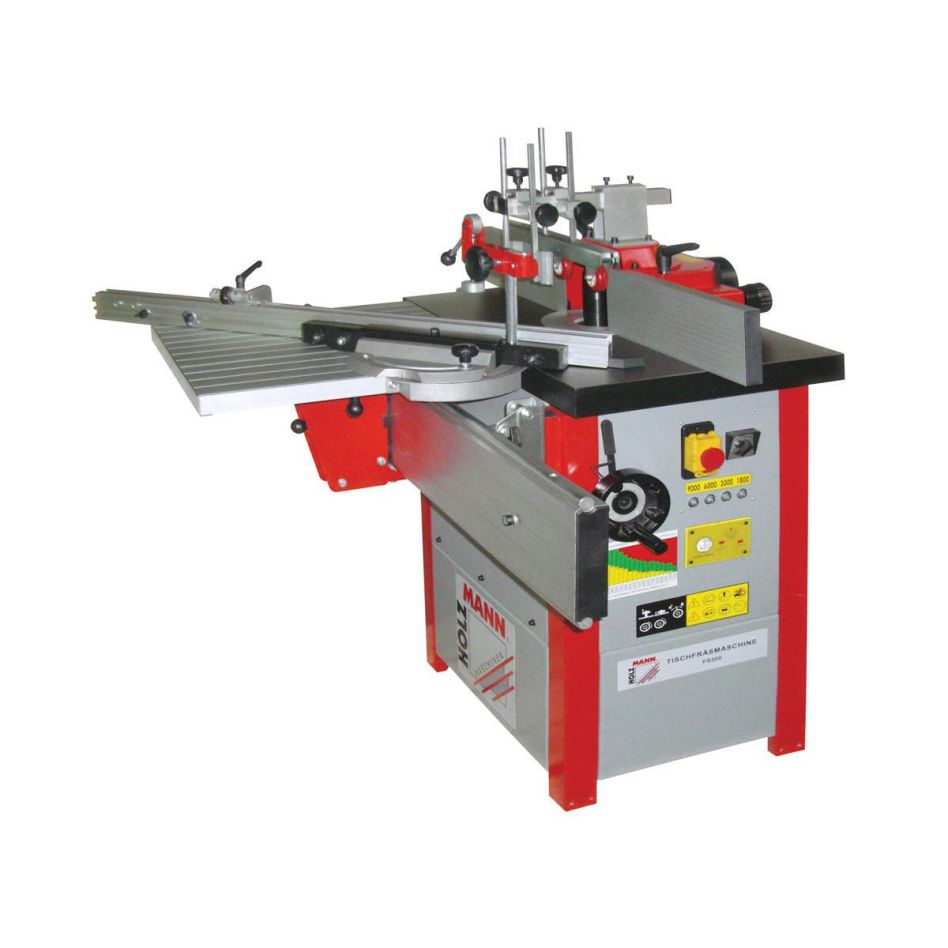

Holzmann FS200_230V milling machine 230V
Description
- Solid and torsion-free cast iron table
- High-quality milling fence with holding system and fine adjustment
- Standard 4 milling speeds
- Maximum cutting diameter 200 mm
- Speed readable via LED display
- Large handwheels for spindle adjustment
- Sliding table available as an option and can be retrofitted
- Grinding attachment included
Technical specifications
- Motor power S1: 2800
- Motor power S6: 3750
- Voltage: 230V
- Table dimensions in mm: 690x480
- Table height in mm: 900
- Suction connection in mm: 100
- Milling spindle diameter in mm: 30
- Milling spindle speed in rpm: 1800/3000/6000/9000
- Spindle stroke in mm: 100
- max. clamping height in mm: 105
- Table opening in mm: 200
- max. retractable tool diameter in mm: 190
- max. tool diameter above table in mm: 190
- Milling stop in mm: 360x120
Scope of delivery
- Grinding jig
- CE-compliant router bit including aluminium stops
- Pressure clamp
- Roller bit protection
