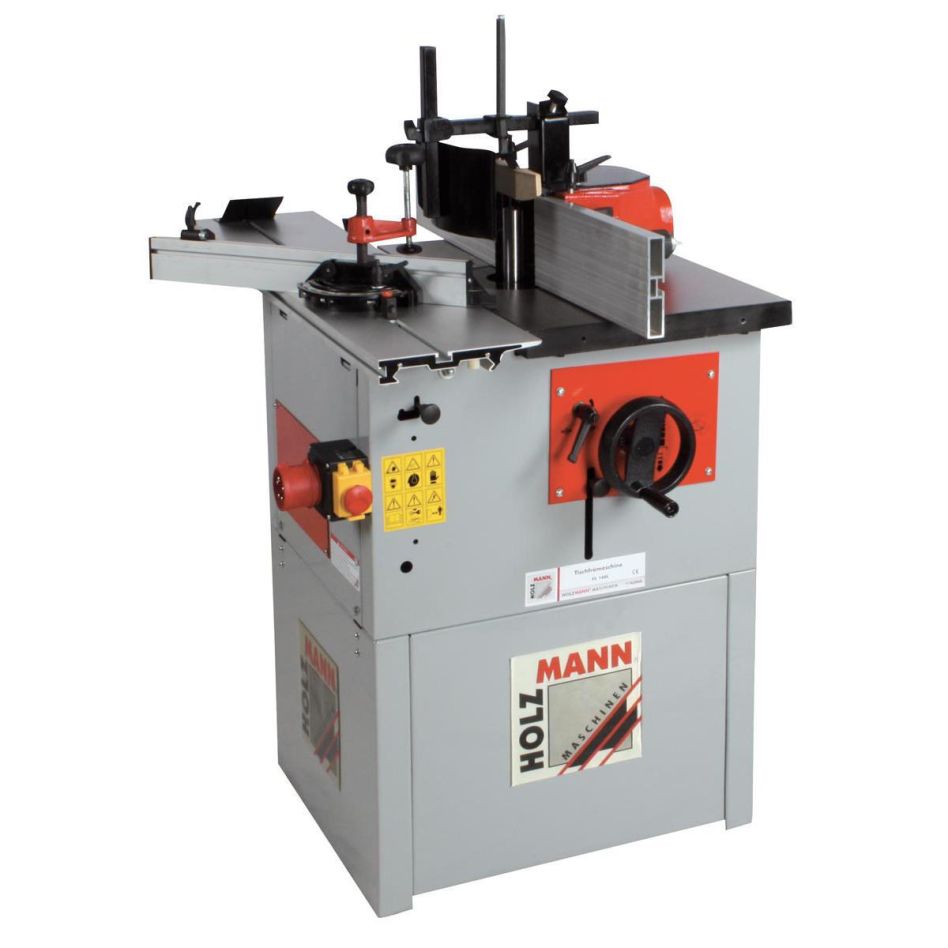

Holzmann FS160L_230V milling machine 230V
Thanks to the sliding table and extra interchangeable spindle, the HOLZMANN FS160L_230V is a reliable and versatile milling machine, even for complex applications, despite its compact design.
Description
- Table milling machine with solid, torsion-free cast iron table and aluminium format sliding table (1000 x 215 mm)
- extra interchangeable spindle with holder for end mills standard
- Mitre stop swiveling up to 60° on both sides incl. folding stop
- Pressure device for mitre and cross milling
- many possible applications despite the compact design and the small required space
- dynamically balanced milling spindle for precise turning
- safe operation thanks to standard milling guard according to CE, equipped with height-adjustable guide rail, protective plate as well as safety switch and emergency stop
- interchangeable spindle with collet (Ø 12 mm), miter stop, clamp, fastening tool
Technical specifications
- Motor power S1: 1500
- Motor power S6: 2100
- Voltage: 230V
- Table dimensions in mm: 600x400
- Table height in mm: 850
- Sliding table size in mm: 1000x220
- Suction connection in mm: 100
- Milling spindle diameter in mm: 30
- Milling spindle speed in rpm: 1400/4000/6000/9000
- Spindle stroke in mm: 110
- max. clamping height in mm: 105
- Table opening in mm: 170
- max. retractable tool diameter in mm: 150
- max. tool diameter above table in mm: 170
- Milling stop in mm: 350x125
- collie: x
- Weight 108kg
Scope of delivery
- Blade guard
- Miter stop
- Interchangeable spindle
