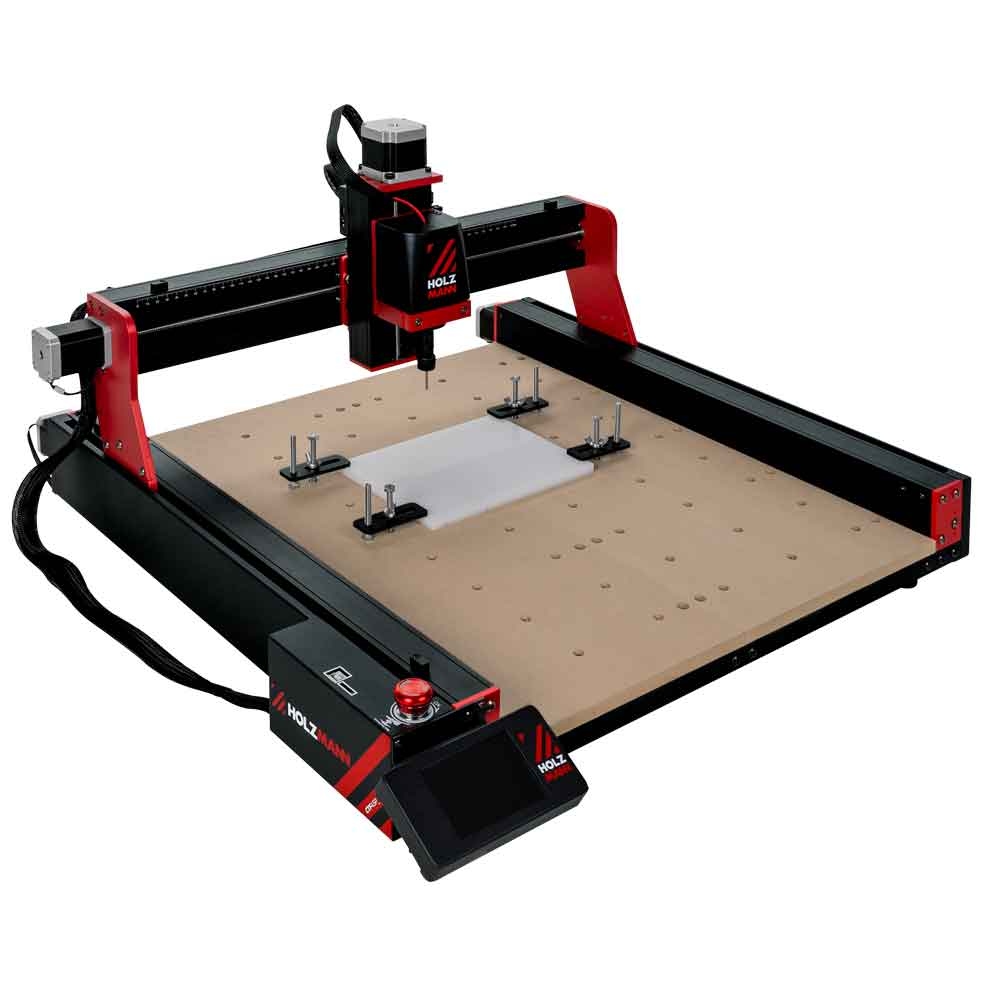

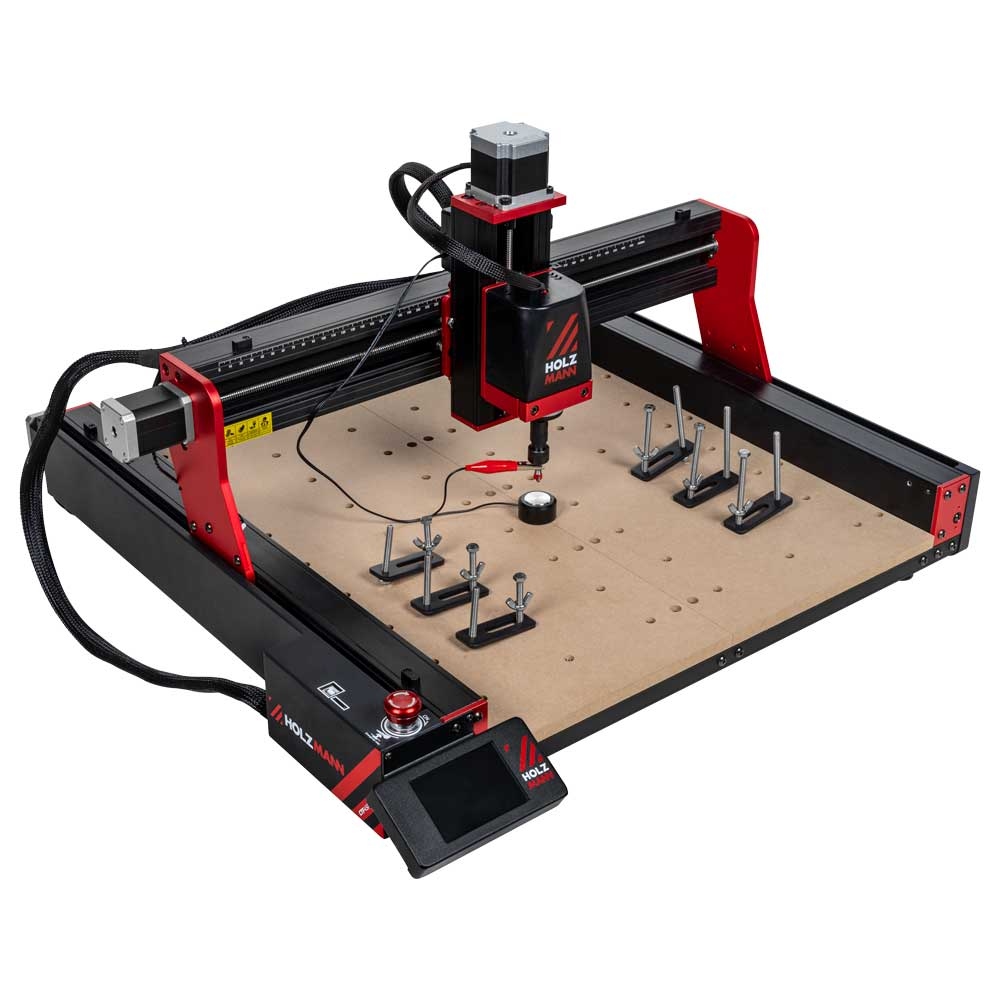

Holzmann CTF45P_230V CNC Table Milling Machine 460x460 mm
Special features
- The HOLZMANN CNC table milling machine CTF45P is versatile and easy to operate.
- With its 460 x 460 mm working surface and versatile optional accessories, this is the perfect machine if you want to shape/process wood, plastic, or even aluminum.
Strong Points
- The plug-in module design allows for simple and quick completion of the machine
- Working area: 460 x 460 x 80 mm (L x W x H)
- Maximum milling diameter of 10 mm
- Maximum continuous working time: 6 hours
- Maximum feed rate: 800 mm/min
- XY-axis positioning accuracy: 0.05 mm
- Supported CAM software: Candle, Carveco, Artcam, Easel
- Selectable operating languages: DE, EN, ES, FR, PT
- USB interface, Wi-Fi connection, SD card reader (+ TF card 4GB)
- 80 W motor spindle up to 8000 min -1
Technical data
- Motor power S1 in W 80
- Voltage 100 - 240 V / 50 - 60 Hz
- Installation dimensions in mm 742x689x413
- Sound power level in dB(A) 105
- Sound pressure level in dB(A) 85
- Gross weight in kg 20.60
- Net weight in kg 15.80
- Packaging width in mm 740
- Packaging length in mm 760
- Packaging height in mm 213
