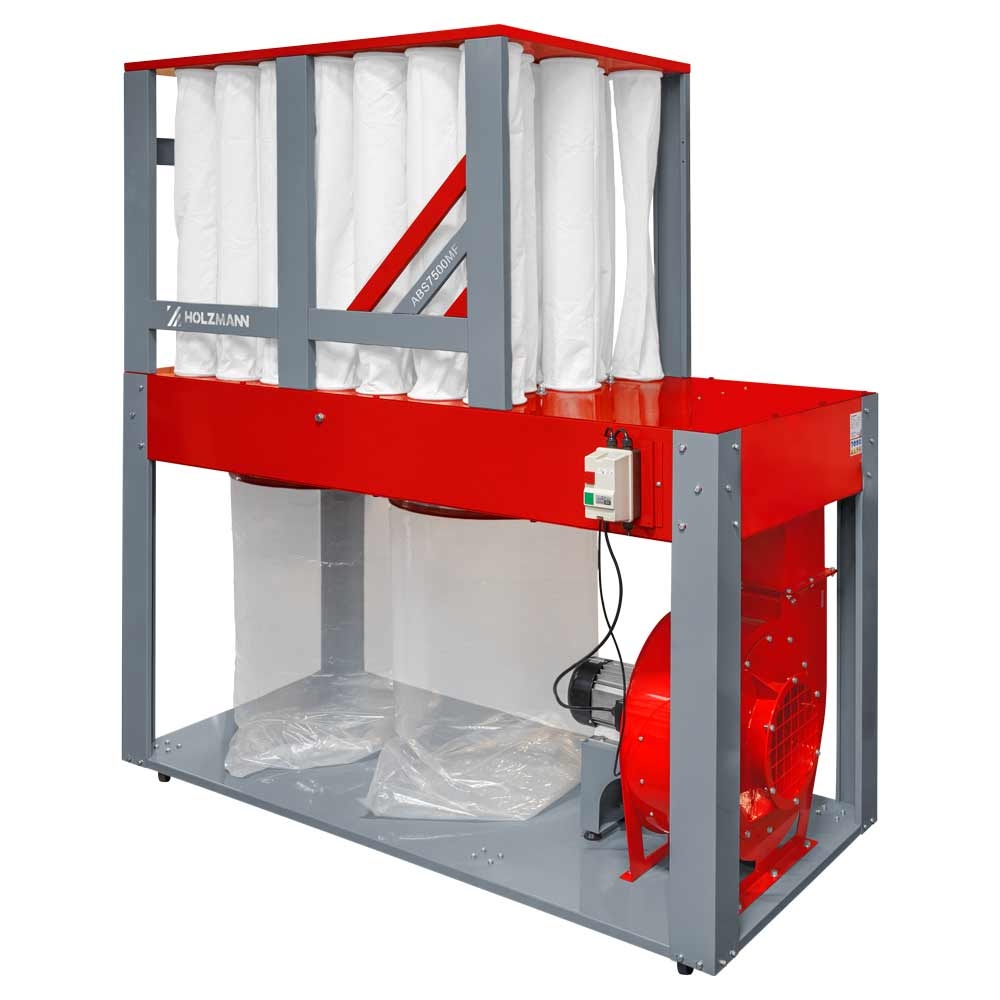

Holzmann ABS7500MF_400V Extraction System 400V
Special Features
- Holzmann ABS7500MF_400V Dust Extraction System – Powerful dust extraction technology for your workshop.
- The Holzmann ABS7500MF_400V is the ideal solution for anyone who relies on efficient and powerful dust extraction in woodworking.
- With an impressive extraction capacity of 7500 m³/h and a negative pressure of 3835 Pa, this dust extraction system offers sufficient power to reliably remove wood chips from your woodworking machines.
- Equipped with 35 filter bags and a total filter surface area of 16.45 m², it guarantees excellent filtration performance. This robust system is ideally suited for simultaneous use with multiple woodworking machines.
Highlights
- The solid sheet metal construction ensures ideal airflow conditions.
- resilient wind turbine
- Constant suction power, even during continuous use.
- good suction power (filter dimensions: ø160 x 945 mm x 35 = multi-filter)
- Integrated drive mechanism for easy maneuvering.
Technical data
- Motor power S1 in W 5500
- Voltage 400 V / 50 Hz
- Suction port in mm 280
- Installation dimensions in mm 2110 x 1140 x 2260
- Suction capacity in m³/h 7500
- Contents of a bag of chips in liters 265
- Diameter of the chip bag in mm 610
- Length of the chip bag in mm 900
- Diameter of the fan wheel in mm 460
- Negative pressure in Pa 3835
- Sound power level in dB(A) 99.8
- Sound pressure level in dB(A) 88.8
- Gross weight in kg 320
- Net weight in kg 243
- Packaging width in mm 1,040
- Packaging length in mm 2,150
- Packaging height in mm 630
Scope of delivery
- Chassis, 36 filter bags and 2 collection bags
