Holzstar KGZ3050 VARIO Professional miter saw 305 mm 1.6 kW 230V
Special Features
- Professional miter and crosscut saw with pull function, laser line, and variable cutting speeds. Includes circular saw blade.

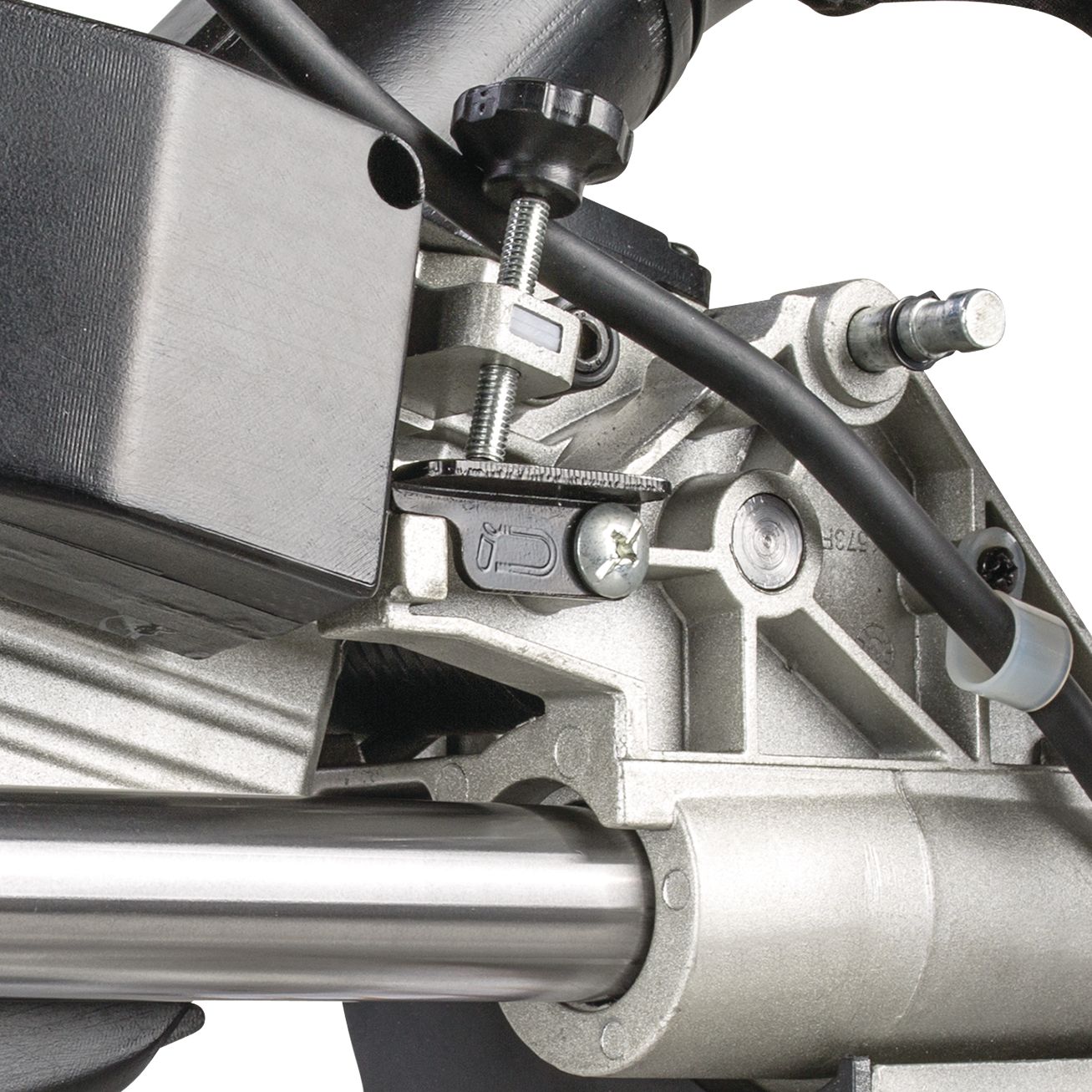

- Pull function with double stable guide for precise cutting of wide workpieces
- Speed range 2000 - 4000 rpm
- Powerful 1.6kW motor
- Sawing capacity up to 100x305mm
- Miter left/right 45° and bevel 45° left/right
- Miter fixed adjustable to 0°/15°/22.5°/31.6°/45°/60° (60° right single)
- Miter fixed adjustable to 31.6° for cutting decorative moldings and mouldings
- Miter setting adjustable with fine adjustment

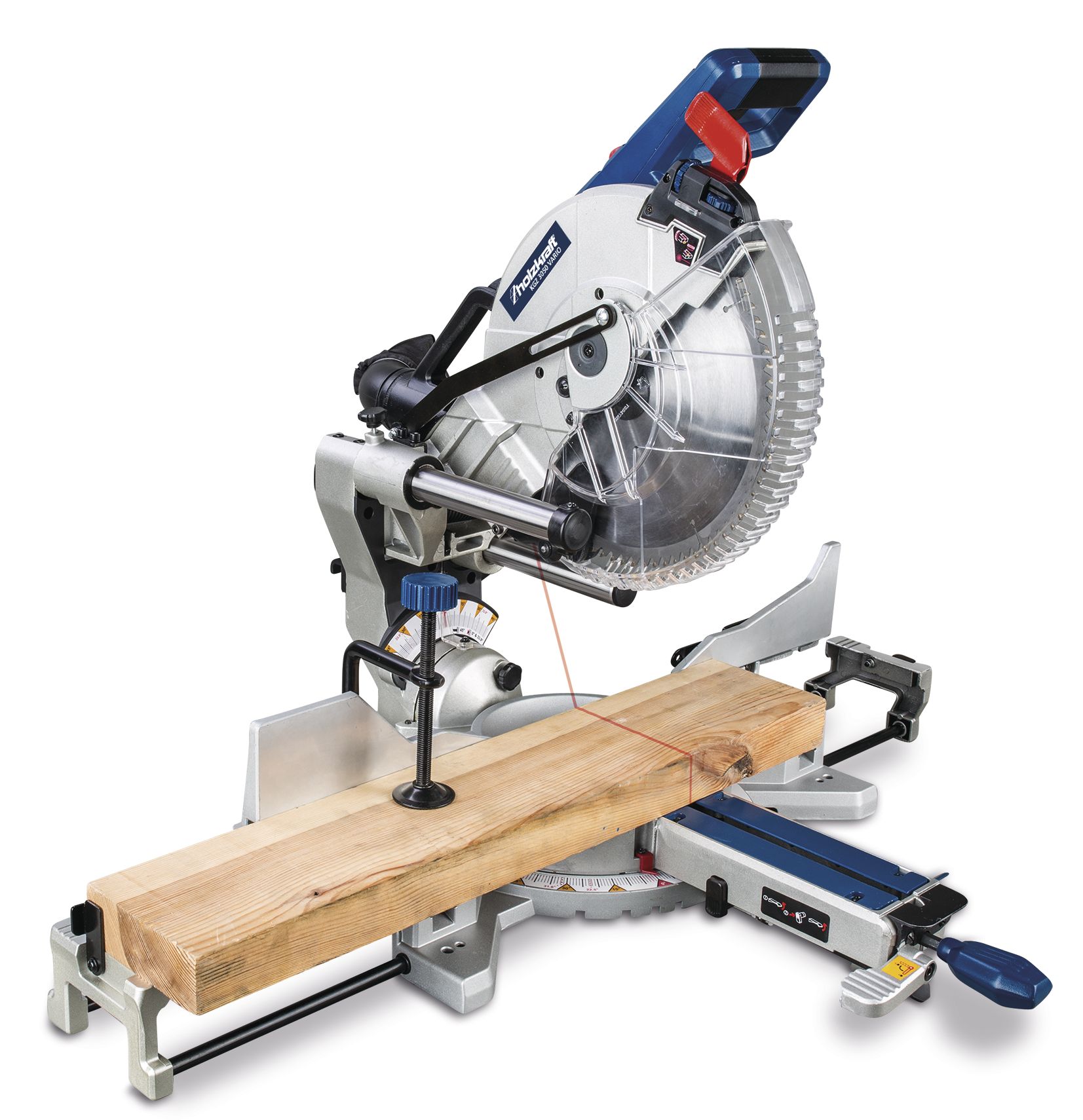

- Laser line illuminates the cutting line and enables fast and precise sawing child's play
- Robust cast aluminium base plate
- Even more compact and portable (can be placed against a wall)
- Large side stop with left and right extendable side extensions (workpiece support) for long workpieces
- Adjustable depth stop for sawing grooves
- Workpiece clamp
- With clamping clamp for securing to workbench
- Extraction nozzle for supplied dust bag or connection of external dust extraction
Applications
- Sawing crown mouldings, decorative mouldings and moldings
- Sawing parquet and laminate
- Sawing skirting boards and beams
Technical data
- Inclination 0°/Mitre 0° mm 100 x 305
- Inclination 45°/Miter 0° left mm 64 x 305
- Inclination 45°/Miter 0° right mm 44 x 305
- Inclination 0°/Miter 45° left mm 100 x 215
- ø saw blade mm 305
- Power kW 1.6
- Voltage V 230
- Speed rpm 4000
- Weight kg 21.60
- Dimensions (lxwxh) mm 1015x800x710
Scope of delivery
- Circular saw blade 305 x 2.6 x 1.8 x 30 mm
- Material clamp
- Dust bag
