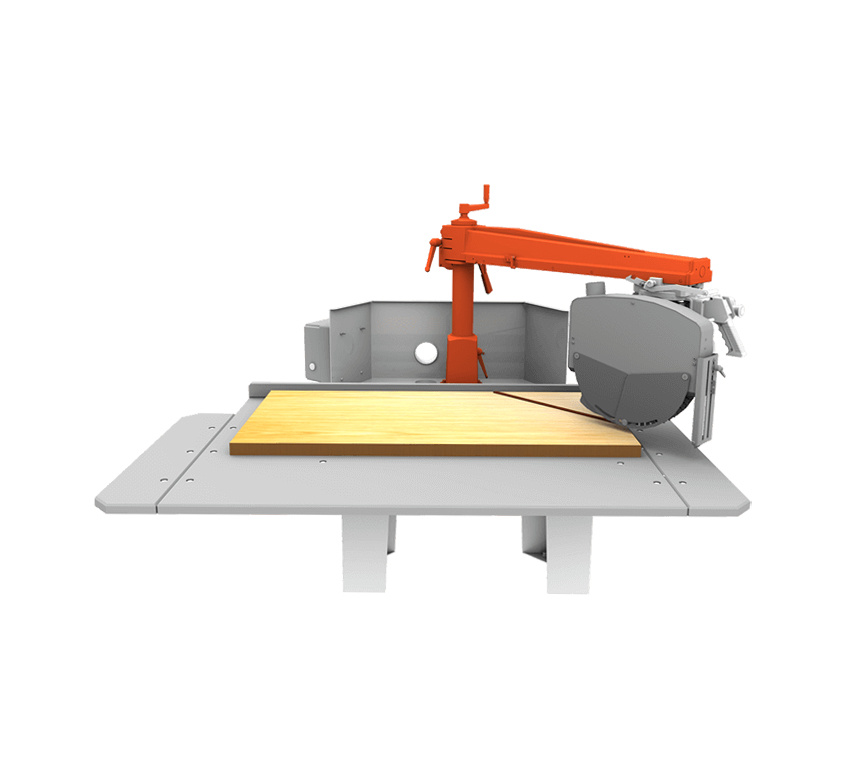

Holzkraft RAS90 Radial Saw 400 mm 3 kW 400V
Special Features
- Radial saw for sawing and cutting floorboards.
- Quick switching between double miter sawing or cutting to length
- Robust cast iron swivel arm with replaceable square guides
- Movable saw unit with return spring
- Saw unit can be swiveled 45 degrees to one side
- Motor with mechanical brake
- Made in Italy
Advantages
- Separate emergency stop on the trigger handle
- Solid saw blade guard
- Lockable main switch
Applications
- Long cutting lengths, e.g. in kitchen construction or for flooring
- Workshops
- Construction
Technical data
- Voltage V 400
- Power kW 3
- Saw blade diameter mm 400
- Speed rpm 2800
- Maximum miter saw blade ° -45
- Max. cutting height saw arm + 45° mm 350x125
- Max. cutting height saw arm - 45° mm 565x125
- Max. cutting height saw blade inclination 0°/45° mm 125 / 80
- Max. cross-section mm 865x20
- Work table dimensions (LxW) mm 1970x1285
- Working height mm 800
- Suction nozzle diameter mm 60
- Swivel angle adjustment saw arm ° -45 / +45
- Weight kg 298.00
Scope of delivery
- Saw blade dia. 400x3.8x30 mm with carbide teeth 60T
- Dutch manual, markings, CE mark, and CE certificate in accordance with Machinery Directive 2006/42/CE, and EMC Directive 2014/30/CE
