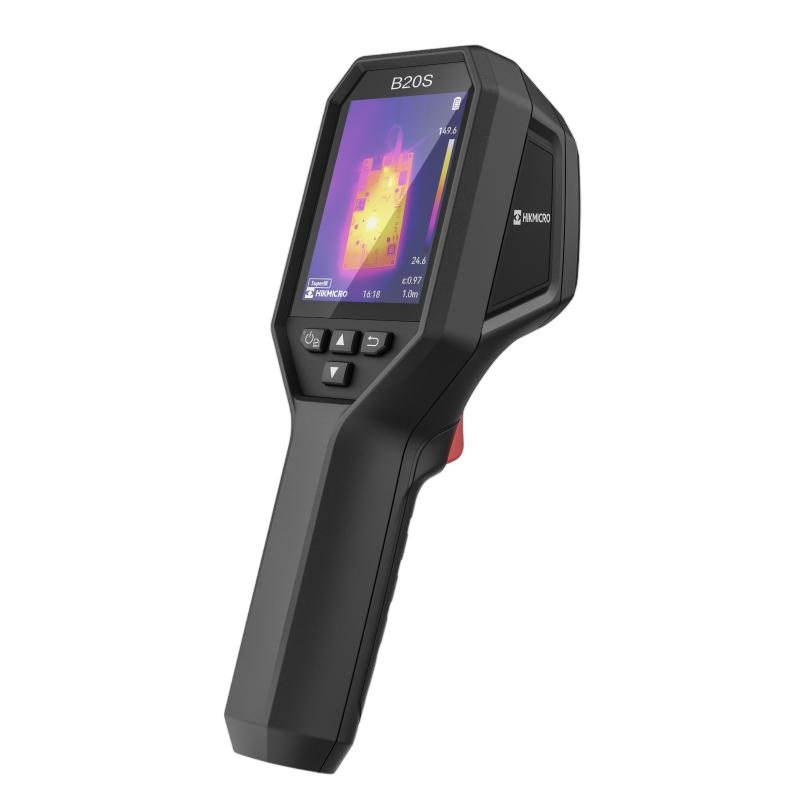

HIKMICRO 545810 B20S Thermal Imaging Camera
Special Features
- Compact thermal imaging camera with 3.2" color LCD screen
- High thermal resolution: 256 × 192 pixels, magnified to 640 × 480 pixels with SuperIR technology
- Measures temperatures from -20°C to 550°C with an accuracy of ±2°C or ±2%
- Automatic spot tracker marks hot spot, cold spot, and center spot
- 4 image modes: Thermal, Visual, PIP (Picture-in-Picture), and Fusion
- 4 adjustable color palettes for optimal display
- Built-in speaker and flash lamp for audio and visual temperature alarms
- Internal storage of 16 GB, suitable for up to 90,000 images
- Expandable with clip-on macro lens for details up to 500 microns
- Wi-Fi connectivity for fast image transfer to smartphone or tablet
- Free HIKMICRO Viewer App for image viewing, sharing, and analysis
- Analysis and reporting capabilities with included software (points, lines, rectangles, circles, polygons)
- Suitable for a wide range of applications such as electrical engineering, HVAC, and building inspection
Technical specifications
- Thermal resolution: 256 × 192 pixels
- SuperIR technology: Yes, with 640 × 480 pixels for captured images
- Automatic spot tracking: Yes
- App connection: Yes, via Wi-Fi with the HIKMICRO app
- Focus: Fixed (focus-free)
- Visual camera: Present
- LED lighting: Yes
- Image modes: Thermal, visual, fusion and PiP (Picture-in-Picture)
Scope of delivery
- B20S Thermal imaging camera
- USB cable
- Quick guide
- Calibration certificate
- In plastic case
