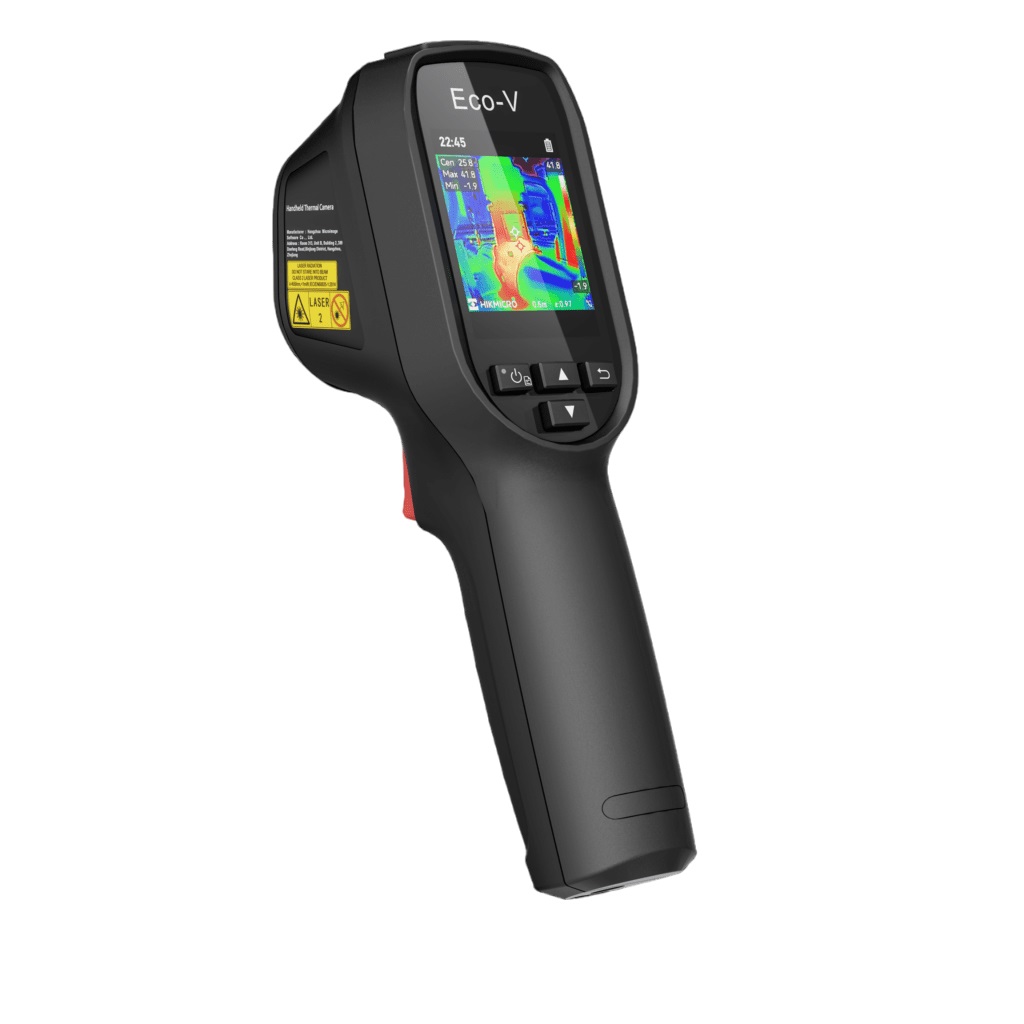

HIKMICRO 545804 Eco-V Thermal Imaging Camera
Special features
- Thermal resolution: 96 × 96 pixels, magnified to 240 × 240 pixels with SuperIR technology
- Lens: 50º wide-angle lens for rapid inspection of large surfaces
- Image mode: Fusion mode combines visual and thermal images for precise measurements
- Spot tracking: Automatic marking of hot spot, cold spot, and center spot
- Color palettes: 7 thermal color schemes for optimal display
- Laser pointer: For exact positioning of the measurement location
- Frequency rate: 25Hz for smooth video and real-time image
- Temperature range: -20°C to 550°C
- Measurement accuracy: Up to ±2°C or ±2%
- Storage: 4 GB internal storage for fast image and video storage
- Battery: Built-in 3350mAh Li-Ion battery. Up to 8 hours of operating time and adjustable automatic shutdown (5/10/20 min)
- User-friendly: One click to save images and instantly create an inspection report
- Affordable and professional: Compact, powerful, and suitable for construction, HVAC, leak detection, and more
Technical specifications
- Thermal resolution: 96 × 96 pixels
- SuperIR technology: Yes (increased resolution up to 240 × 240 pixels)
- Viewing angle (wide-angle lens): 50°
- Automatic spot tracking: Yes
- App connection: Not supported
- Storage capacity: 4 GB internal memory
- Focus: Fixed (focus-free)
- Visual camera: Present
- LED lighting: Yes
- Image modes: Thermal, visual and fusion
Scope of delivery
- Eco-V Thermal Imaging Camera
- USB cable
- Quick guide
- Calibration certificate
- 3 year warranty
