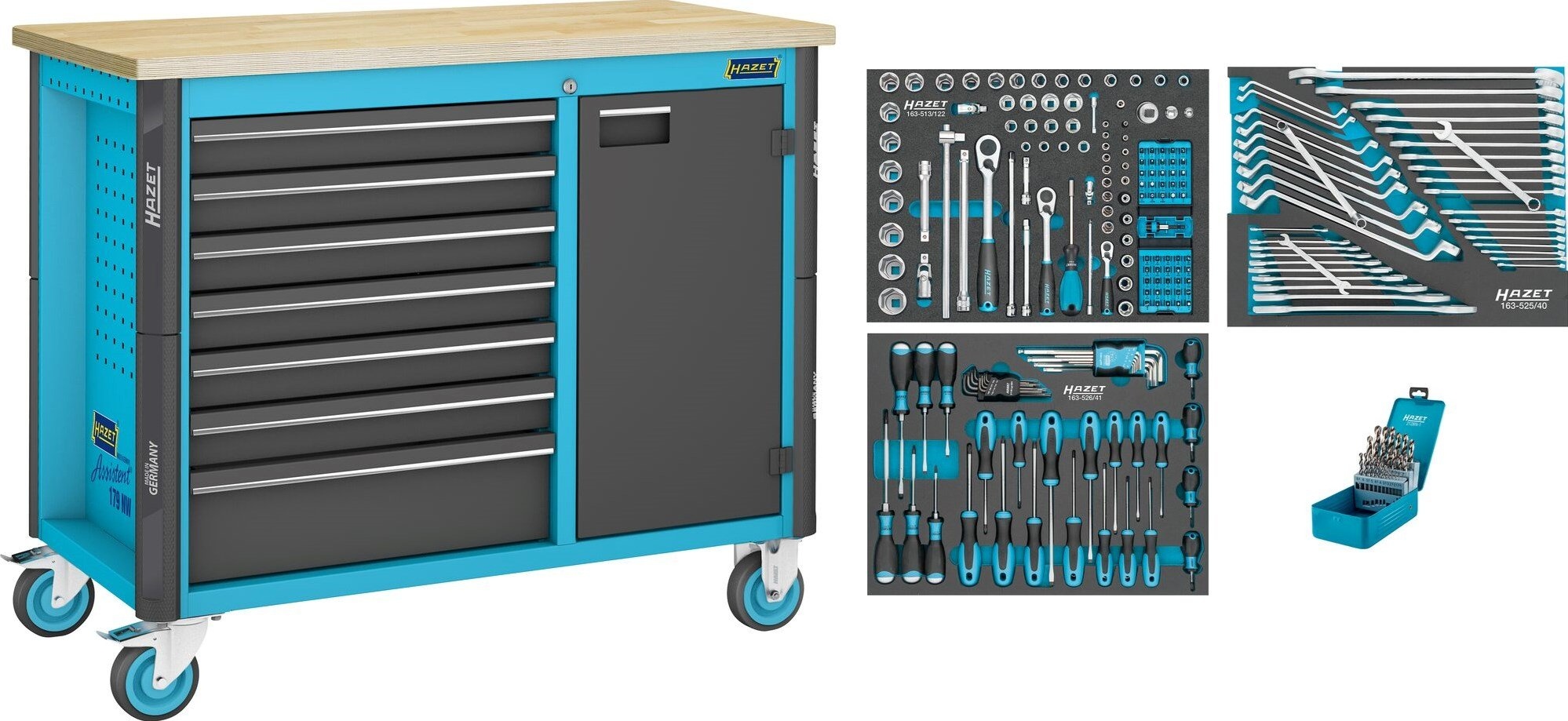

228-piece filled tool trolley
Features
- Larger storage space than previous model
- 6 shallow drawers, load capacity 25 kg, 81 mm high
- 1 deep drawer for heavy loads, load capacity 40 kg, 166 mm high
- Complete with 228-piece tool assortment in Safety Insert system, soft foam inlay
- 30 mm birch plywood worktop, oiled, replaceable
- Includes nine-way adjustable shelf and fixed door
- The cable opening in the rear wall allows, for example, to charge battery-powered devices with the door closed
- Full welded construction of the entire frame for heavy daily use in the workshop
- Additional square perforated grid for tool holder, e.g. HAZET 112-230
- Optimized, yielding edge protection on all corners with genuine impact protection thanks to an internal damping concept
- Flexible vise mounting (front, right, left) e.g. HAZET 2175N depending on the drilling templates
Strong points
- Mutual pull-out locking for minimal tilting risk
- Centrally located lock (central locking and cylinder lock) locks the door and drawers simultaneously
- Only one key required for simultaneous locking of the door and drawers (scope of delivery: 2 keys)
- 180° rotatable, prevents the key from breaking
- 100% extendable with ball-bearing telescopic rails - automatically retracting
- Lockable rack section with 2 shelves
- Large, high-load wheels (Ø 125 mm) with precision ball bearing and double ball race in the swivel bearing, easy movement even under high dynamic load
- 2 castors with double stop: braked wheels prevent rolling away,
- braked swivel bearings prevent the castors from rotating,
- e.g. on inclined surfaces
- Safety ring prevents the ingress of dirt and wires
- Elastic wheels ensure quiet movement
Technical data
- Drawers, deep 1 x 166 x 522 x 398 mm
- Drawers, shallow 6 x 81 x 522 x 398 mm
- Drawers total 7
- (Drawer) size for partitioning system 3/3+
- Drawer dimensions 522 x 398
- Drawer pull-out % 100 %
- Drawer guides With ball-bearing telescopic rails
- Drawer locking Mutual pull-out lock for minimal tipping risk
- Drawer closure Central locking with cylinder lock
- Length x width x height 1150 x 600 x 964 mm Worktop
- Wood-plywood-birch, interchangeable Tool trolley impact protection
- Perpendicular continuous edge guarding on all four corners
- Total load capacity (static) 1000 kg
- Total load capacity (dynamic) 750 kg
- Number of castors 2
- Rotator diameter 125 mm
- Number of fixed castors 2
- Fixed castor diameter 125 mm
- Number of castors with brake 2
- Color HAZET blue
- Number tools: 228
Scope of delivery
- 1 x Mobile workbench 179NW-7
- 1 x Socket wrench set 163-513/122N 122-piece:
- 1 reversible ratchet 1/4"
- 9 hexagon socket wrenches 1/4" 5.5; 6; 7; 8; 9; 10; 11; 12; 13 mm
- 5 socket wrenches 1/4" TORX® E 5; 6; 7; 8; 10
- 2 extensions 1/4" 55; 147 mm
- 1 universal joint 1/4"
- 1 bit holder 1/4"
- 1 bit adapter 1/4"
- 1 reversible ratchet 3/8"
- 12 hex socket wrenches 3/8" 10; 11; 12; 13; 14; 15; 16; 17; 18; 19; 21; 22 mm
- 3 extensions 3/8" 74; 150; 254 mm
- 1 universal joint 3/8"
- 1 reducer 3/8" to 1/4"
- 1 reversible ratchet 1/2"
- 20 hex socket wrenches 1/2" 10; 11; 12; 13; 14; 15; 16; 17; 18; 19; 20; 21; 22; 23; 24; 26; 27; 28; 30; 32 mm
- 6 socket wrenches 1/2" TORX® E 10; 12; 14; 16; 18; 20
- 2 extensions 1/2" 123; 248 mm
- 1 cross handle with sliding piece
- 1 cardan joint 1/2"
- 1 reduction piece 1/2" to 3/8"
- 1 reduction piece 3/4" to 1/2"
- 1 bit set, 51 pieces
- 1 x Key tool set 163/525/40 40-piece
- 1 x Screwdriver set 163-526/41N
- 1 x Twist drill cassette 2128N-1 25-piece
