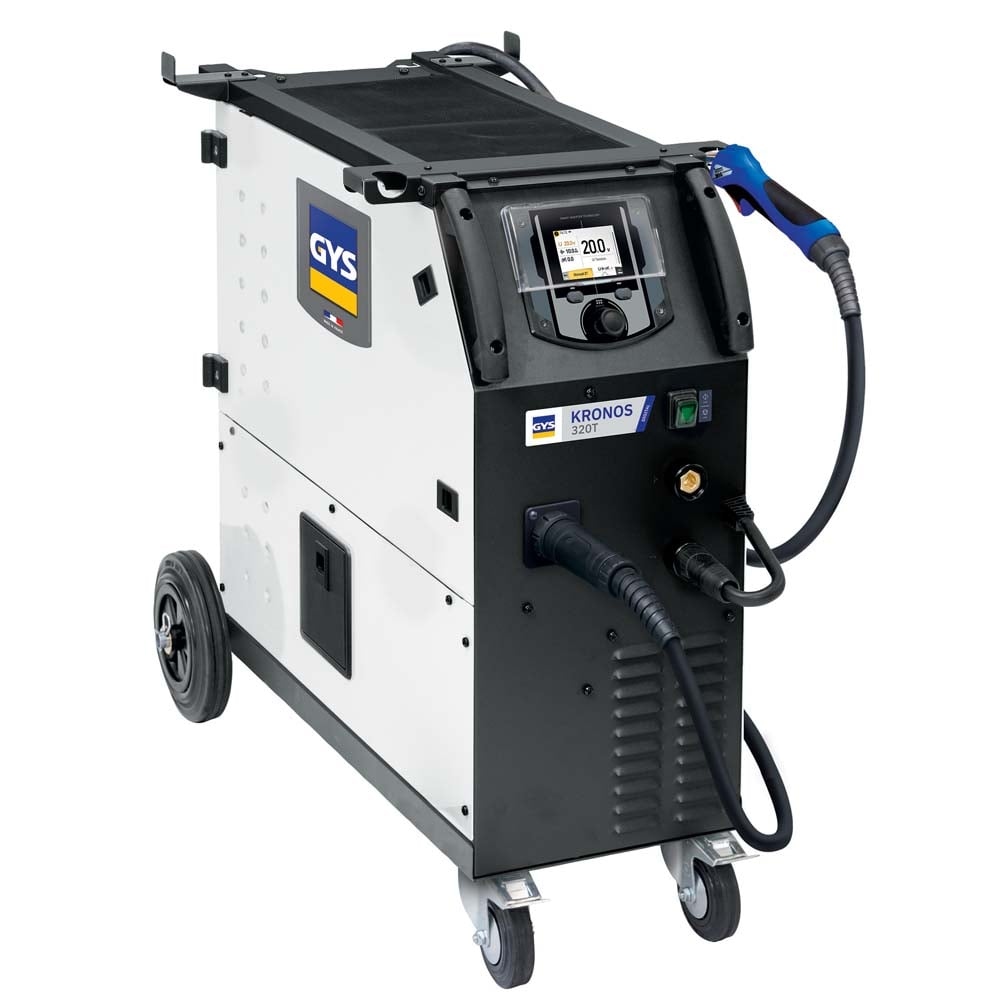

Gys 595078734 KRONOS 320T MIG/MAG Welding Machine incl. MIG accessories
Special features
- The KRONOS 320T is a multi-procedure three-phase inverter welding machine.
- The high-quality construction guarantees excellent arc quality, making the device suitable for the most demanding MIG/MAG applications.
- Multi-procedure
- Intelligent
- Premium welding

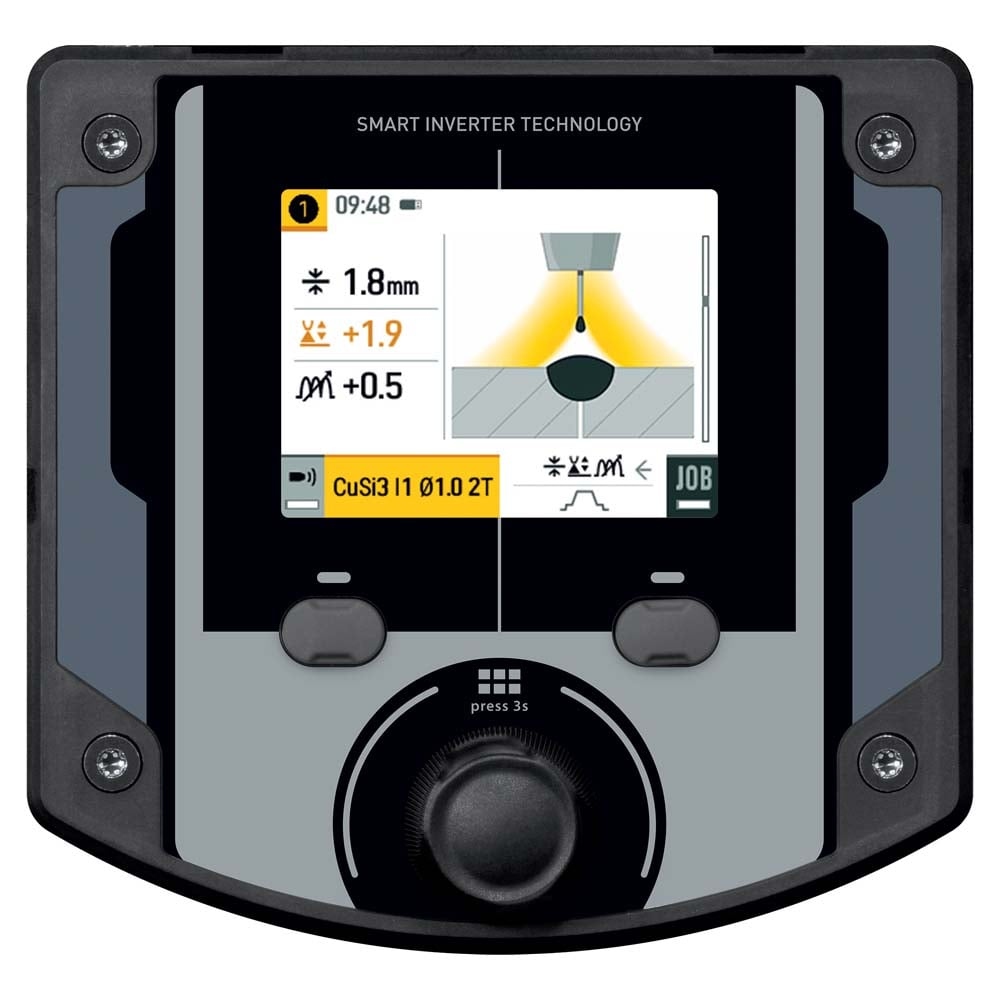

- 2 display modules
- Ergonomic
Technical data
- Power supply: 3-400V
- Adjustment range MIG/MAG: 15-320 A
- Adjustment range TIG: 20-320 A
- Adjustment range MMA: 20-320 A
- Starting voltage V: 69 V
- Welding wire: 5kg (200 mm), 15kg (300mm)
- Wire mm: 0.6 - 1.2 / No gas: 0.6 - 1.2 mm
- Standard feed rollers: Ø 1.0/1.2
- Standard feed rollers (included): Ø 0.8/1.0
- Wire feed (text): Electrique Control 50W
- Duration cycle MIG 100%: 220 A
- Duration cycle MIG 60%: 260 A
- Duration cycle TIG 100%: 250 A
- Duration cycle TIG 60%: 270 A
- Duration cycle MMA 100%: 200 A
- Duration cycle MMA 60%: 240 A
- Fuses: 16 A
- Protection class: 23S
- Dimensions mm: 750x450x800 mm
- Weight: 46 kg
- Power generator (+/- 15%) kVA: 24 kVA
Scope of delivery
- 1x MIG/MAG Welding Machine
- 1x 8XM-36 MIG torch with EURO connection 3m (6036030T8)
- 1x Ground cable mounted T50- 4m-400 A-35mm² (97313)
