GYS 5192083745 GYSMI 160A Welding Inverter + LCD Techno 11 True Color Welding Helmet

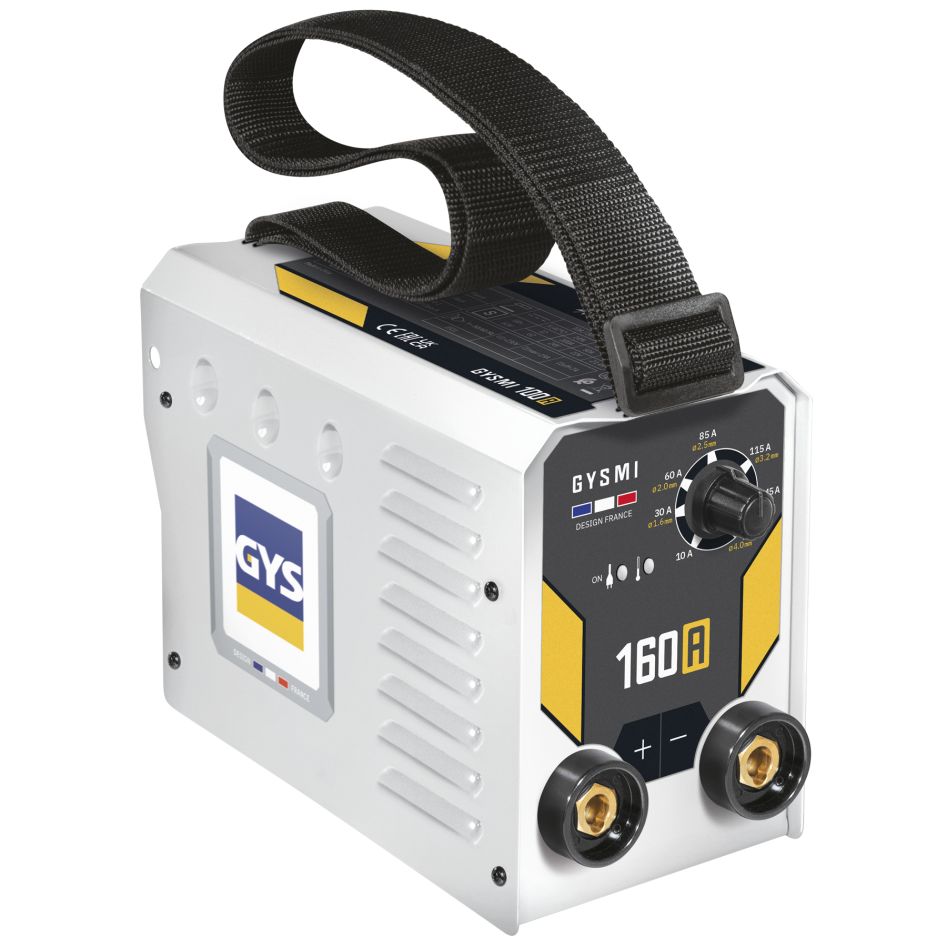

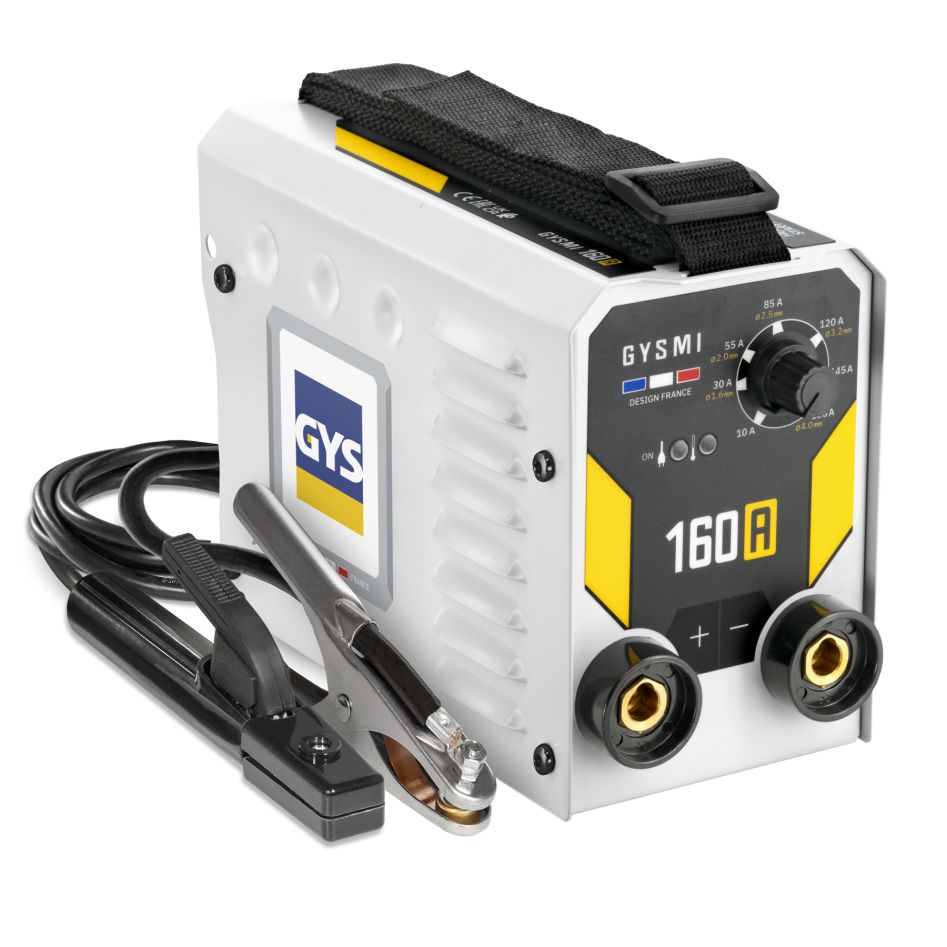

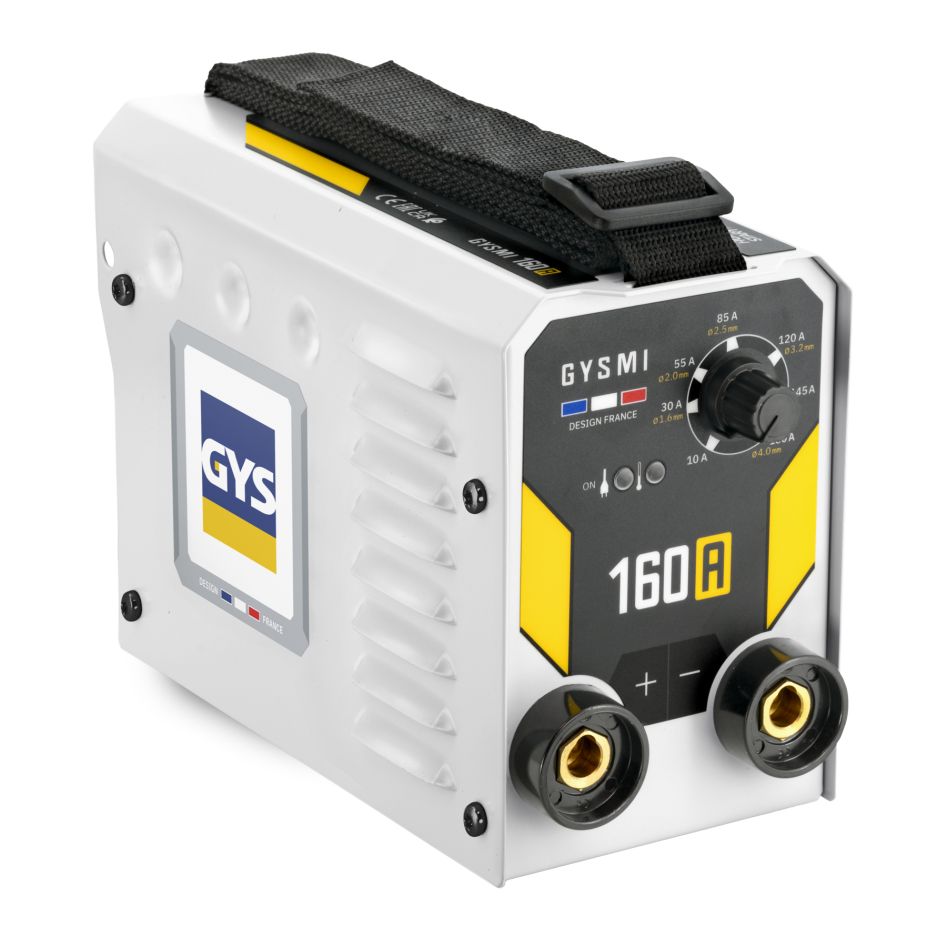

The GYSMI 160A welding machine is a single-phase inverter welding machine for welding with coated electrodes (MMA). The GYSMI 160A features the latest IGBT inverter technology, has very high ignition quality and perfect arc stability. The GYSMI 160A guarantees professional welding results on steel, cast iron, and stainless steel up to 10 mm thick.Special features
- Immediate ignition thanks to the high open-circuit voltage.
- Constant welding power.
- The direct current ensures soft fusion.
- Protected against overload.
- Hot Start: ignition assistance
- Arc Force: temporary current increase during difficult welding situations
- Antisticking: reduces the risk of the electrode sticking when it comes into contact with the workpiece
- Lightweight (2.9 kg)
- Very compact volume, can be easily stored (shelf, trolley, etc.)
- The device can be easily carried with the handle/shoulder strap
- Can be connected to a generator
Technical data
- Type: Inverter
- Model: MMA Welding Machine
- Connection voltage: 230 V
- Length: 230 mm
- Width: 100 mm
- Height: 150 mm
- Frequency: 50/60 Hz
- Number of phases: 1
- Weight: 2.9 kg
- Max. amperage: 160 A
- Max. electrode diameter: 4 mm
- Protection class (IP): IP21
- Fuse (slow): 16 A
- Infinitely variable: Yes
- Max. load capacity at 60% (electrode): 85 A
- Max. Load capacity at 100% (electrode): 70 A
- No-load voltage: 66 V
- Welding current (electrode): 10 / 160 A
