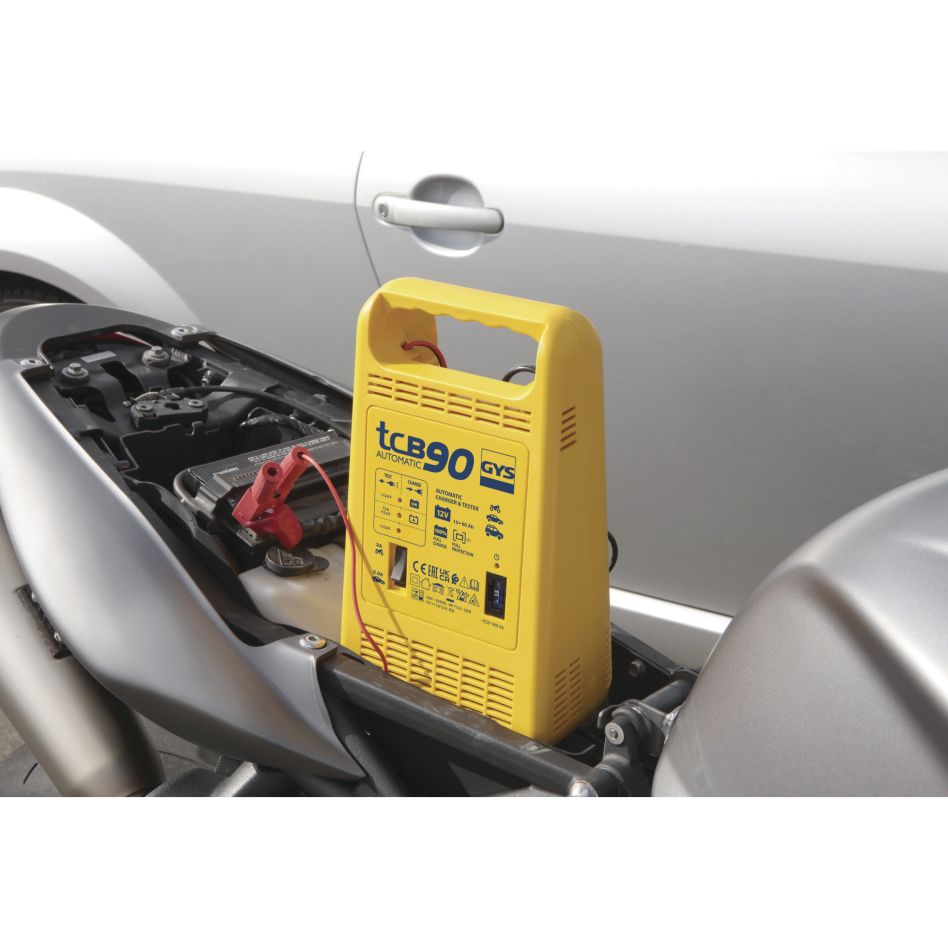

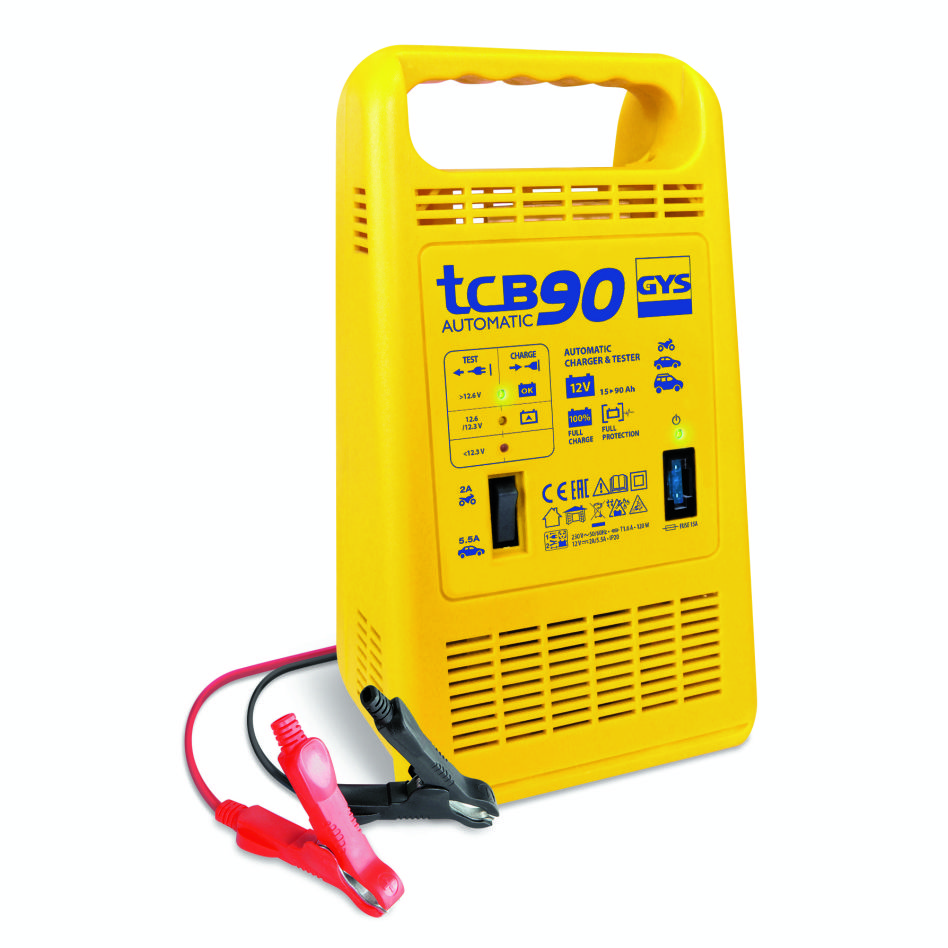

GYS 5192023260 TCB 90 Automatic 12V 15-90Ah Battery Charger
Automatic battery charger with charge status display (3 lights). Guaranteed a 100% full battery thanks to the floating process and a choice of 2 charging speeds. The device is equipped with protection for the on-board electronics and there is no risk of overload. An audible signal is also given if the terminals are connected incorrectly.Special features
- Unattended charging
- Suitable for batteries from 15 to 90 Ah
- 2 Charging speeds (2A / 5.5A)
- Charging status display (3 lights)
- Protection against overload, short circuit
- Auditory signal for incorrect terminal connection
- Insulated terminals
- IP20
Technical data
- Nom. Input voltage 1: 230 V
- Housing material: Plastic
- Recommended battery capacity: 15 / 90 Ah
- Height: 290 mm
- Width: 170 mm
- Max. charging current: 8 A
- Depth: 120 mm
- Frequency: 50/60 Hz
- Trickle charger: No
- Number of output connections: 2
- Power factor: 120
- Protection class (IP): IP20
- Short-circuit protection: Yes
- Suitable for starter batteries: Yes
- Suitable for industrial batteries: Yes
- Nom. output voltage 1: 12 V
