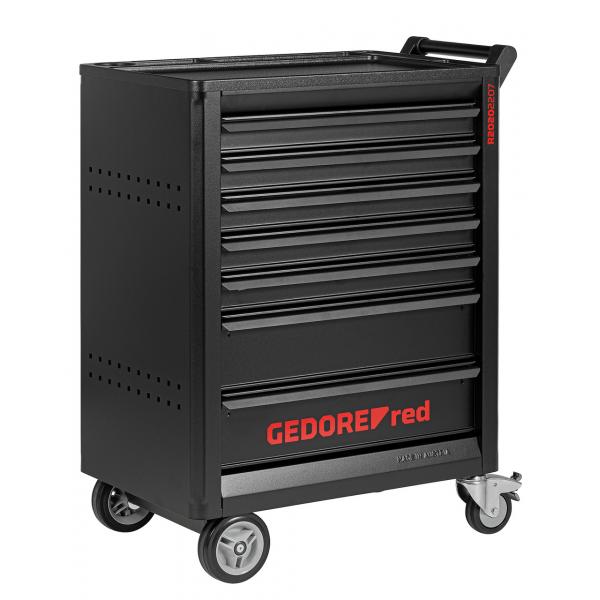

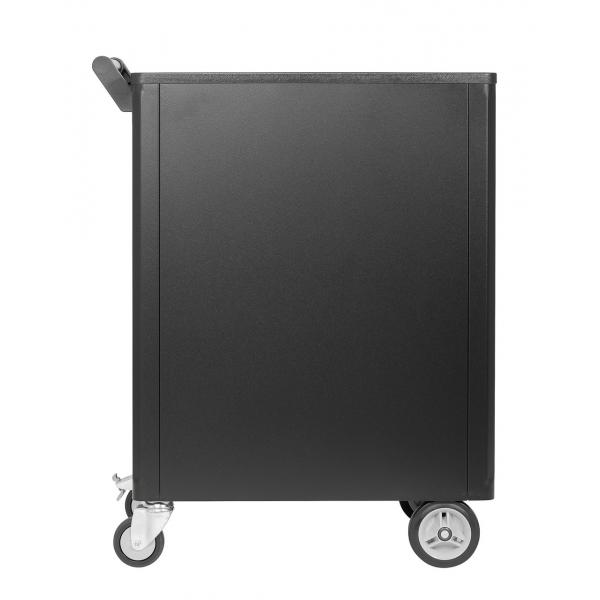

Gedore RED R22071005 Tool Trolley Filled GEDWORKER 7 drawers 273-piece
Features
- Sheet steel, corrosion-resistant and scratch-resistant powder-coated
- ABS worktop with 4 compartments for small parts
- Maneuverable and easy to steer thanks to the steering handle
- Side panels with Euro perforation 10 x 38 mm for attaching accessories
- Centrally lockable via cylinder lock
- Safety lock per drawer, one-hand operation
- All drawers fully extendable and with ball-bearing guide rails
- Load capacity per drawer 40 kg
- GEDORE trapezoidal shaft construction ensures: smooth-running, maneuverable, and stable track even under maximum load properties
Technical data
- Color RAL 9005 black
- Height 999 mm
- Width 790 mm
- Depth 470 mm
- 5 x Drawer type 1 H=70 mm
- 2 x Drawer type 2 H=145 mm
- Max load capacity 400 kg
- Weight 65 kg
Scope of delivery
R22350007
- 1/4” 2K reversible ratchet L.150mm, 1/4” extension sockets L.50mm, 1/4” extension sockets L.100mm 1/4” Allen key extension L.150mm, 1/4" cross handle with slide L.115mm, 1/4" universal joint L.33mm, 1/4" square Allen key L.62mm 2K handle, 1/4" Bit Adapter 4 edge x 1/4 6 edge L.24.7mm, 1/4" Bit Box SL+PH+PZ+TX+6 edge 32 pieces, 1/4" Ratchet Screwdriver with telescopic blade, 3/8" 2K reversible ratchet L.180mm, 3/8" Allen key hex insert 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22, 3/8" Allen key extension L.125mm, 3/8” Allen extension L.150mm, 3/8” Phillips handle with slide, enlarger 3/8” x 1/2” square L.44mm, reducer 3/8” to 1/4”, 1/2” 2K reversible ratchet L.250mm, 1/2” universal joint L.66mm, 1/2” Allen extension L.75mm, 1/2” Allen extension L.125m, 1/2” socket wrench extension L.250m, 1/2” Phillips handle with slide, angled screw thread. Set of 1.5-10mm hexagon, 9 pieces.
R22350008
- 1/4” Hexagon insert 4 4.5 5.5 6 7 8 9 10 11 12 13 14 L.25mm, 1/4” Hexagon insert 4 4.5 5 5.5 6 7 8 9 10 11 12 13 L.50mm, 1/4” Allen key TX E5 E6 E7 E8 E10 L.25mm, 1/4” Screw thread. Insert 3 4 5 6 L.37mm, 1/4” Screw thread. Place PH1 PH2 l. 37mm, 1/4” screwdriver Place PZ1 PZ2 l. 37mm, 1/4” screwdriver Insert SC 5.5 6.5 l. 37mm, 1/4” screwdriver Place TX BO T10 T15 T20 T25 T27 T30, 1/4” thread. Insert TX T10 T15 T20 T25 T27 T30 T40, 1/2" Hexagonal insert 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 24 27 32, 1/2" Box insert hexagon 10 11 12 13 14 15 16 17 18 19 20 21 22 24 27 30 32, 1/2" Cap TX E8 E10 E11 E12 E14 E16 E18 E20 E22 E24, 1/2" spark plug connector 16 21
R22350009
- 1/2” screwdriver Insert 4 5 6 7 8 9 10 11 12 14 17 19 L.55mm, 1/2” thread. Insert 5 6 7 8 10 12 14 17 L.100mm, 1/2” thread. Insert TX T20 T25 T27 T30 T40 T45 T50 T55 T60 L.55mm, 1/2” thread. Insert TX T20 T25 T27 T30 T40 T45 T50 T55 T60 L.100mm, 1/2” thread. Insert XZN M5 M6 M8 M10 M12 M14 M16
R22350010
- Combination pliers L.180mm 2K handle, Side cutting pliers L.160mm 2K handle, Straight flat nose pliers L.200mm 2K handle, 2K screwdriver slotted 3 4 5.5 6.5, 2C screwdriver PH1 PH2, 2C screwdriver TX T10 T15 T20 T25 T30 T40, Water pump pliers 10”, Locksmith's hammer 300g L.300mm, punch 8 square 120x4mm shank d.12, center punch 8 square 120x4mm shank d.10mm, punch 8 square 150x4mm shank d.10, Flat chisel flat oval 125 x 15 15 16 17 18 19 20 21 22 24 27 30 32 , Combination ratchet wrench 10 13 17 19
