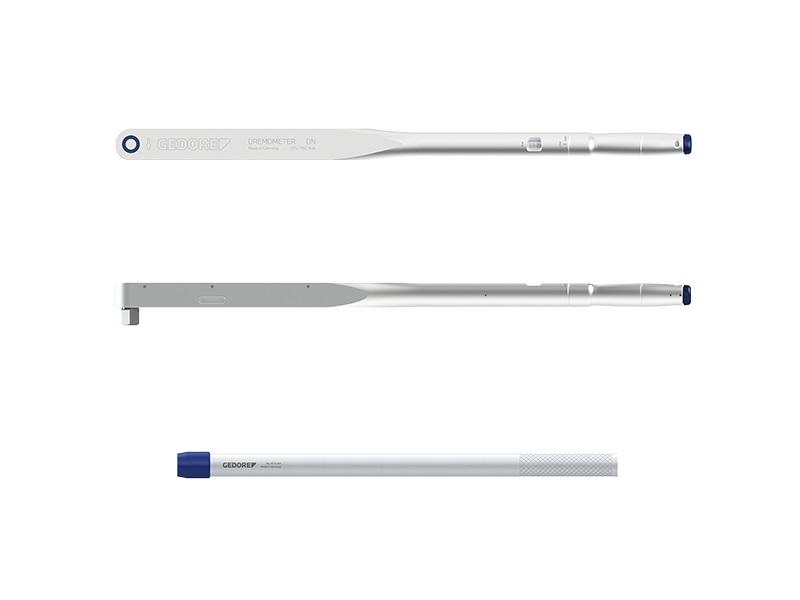

Gedore 8563-N-05 Torque Wrench Dremometer DRN-SET 3/4 155-760 Nm 3107043
Special features
- Torque wrench in the tightening range of 155 - 760 N·m
with test certificate; with extension pipe - Controlled clockwise tightening; 3/4" drive;
incl. 3/4" clockwise ratchet - Classified according to DIN EN ISO 6789-2:2017; adjusted
to a maximum permissible deviation of +/-3% and thus
more accurate than the +/-4% specified in the standard - Classified according to DIN EN ISO 6789-2:2017; adjusted
to a maximum permissible deviation of +/-3% and thus
more accurate than the +/-4% specified in the standard - Vernier scale - resolution 1.0 N·m
Technical data
- Type Drive square
- Drive square inch size 3/4"
- Drive square metric 40 mm
- Height 35 mm
- Distance housing-square center 22.5 mm
- Length 812 mm
- Weight 3.0 kg
Standard included
- DREMOMETER DN 3/4” with vernier 155-760 Nm no. 8563-N-00
- Slide-on pipe DR/DX ALU no. 8571-80
- Slide-on ratchet no. 754-04
