Fluke 5580829 1672 SCH multifunctional plant tester
Special Features
- The Fluke 1672 multifunctional plant tester will revolutionize the way you work.
- With its ergonomic design, seamless user interface, integrated data management capabilities, and optional reporting software Fluke TruTest, the 1672 sets the new standard as an integrated solution for plant testing.
- With the 1670 series installation testers, you can check the safety of electrical installations in residential, commercial, and industrial applications and meet IEC 60364 requirements and all relevant local standards of IEC 61557.
- The multifunctional installation testers from the Fluke 1670 series streamline your installation and test preparations using the intuitive user interface and a high-resolution color touchscreen.
- You can enter location information and set up test routes directly from the tester or from a PC using the optional Fluke TruTest software, and while testing, you can edit this information directly on the instrument to ensure accurate data.
Benefits
- AC, DC, and frequency voltage
- Wiring polarity check, detects broken PE and N wires
- Insulation resistance
- Continuity and resistance
- Measure motor windings with continuity tests (@ 10 mA)
- Loop and line impedance
- Expected earth fault current (PEFC/IK)
- Expected short-circuit current (PSC/IK)
- RCD tripping current/RCD tripping current test (rise function)
- Measure tripping time and current for RCD types A, AC, and F in single test
- Variable test current for RCDs
- Automatic test cycle for RCDs
- Phase sequence test
- Isolation on LN, L-PE, N-PE inputs
- Automatic pass/fail results
- Automatic start function for RCD and loop test
- Voltage drop measurement
- Memory
- Color touchscreen
- USB-C port supports charging and data transfer
- Digital rotary switch – supports new function additions
- Form capture

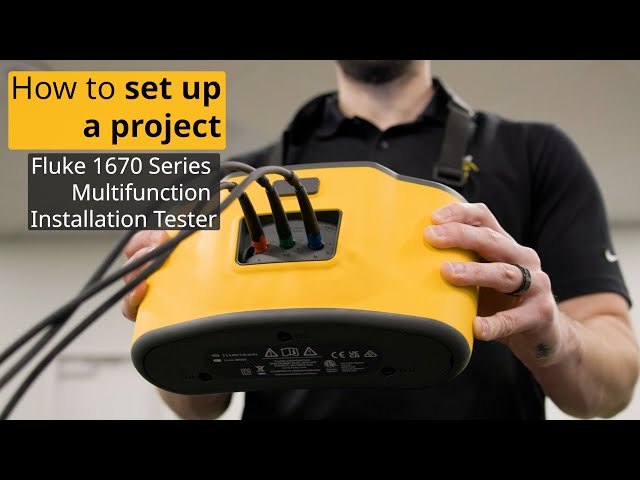

- Project setup
- Field can be refreshed
- Bidirectional data
- Maximum voltage 660V, 600V in operation
- Limits for approved/rejected
- On-screen help
Technical data
- Type1672 SCH
- Indication/designationGraphic
- Limit value indicationYes
- Insulation resistance measurementYes
- Insulation resistance measurement with slope functionNo
- Resistances of insulating floors and wallsNo
- Overvoltage protection testNo
- Low resistance measurementYes
- Low resistance measurement with slope functionNo
- Earth measurementNo
- Selective earth measurementNo
- Earth loop measurementNo
- Specific earth measurementNo
- Loop resistance/impedance measurementYes
- Loop measurement without RCD/FI activationYes
- Measurement of internal mains resistanceYes
- Detection of short-circuit current/overcurrent protection deviceYes
- RCD/FI testYes
- Curve shape during RCD/FI testFor RCD type A, F
- RCD/FI test with increasing leakage currentYes
- RCD/FI analysis functionYes
- PRCD test type S, type KYes
- Testing of IMDs and RCMsNo
- Measurement of leakage currents with adapterNo
- Measurement of e-mobility charging stations, vehicle status simulationNo
- Rotating field testYes
- Structured measurement memoryYes
- Measurement memoryYes
- InterfaceYes
- Printer outputNo
- Integrated printerNo
- Remote control test deviceYes
Scope of delivery
- Fluke 1672 multifunctional installation tester
- Heavy-duty power cord with single input connector
- Carrying case
- USB-C power adapter
- Probe for remote control
- Hanging strap
- Zeroing adapter
- Test leads and probes
- Alligator clips
- Li-ion battery
