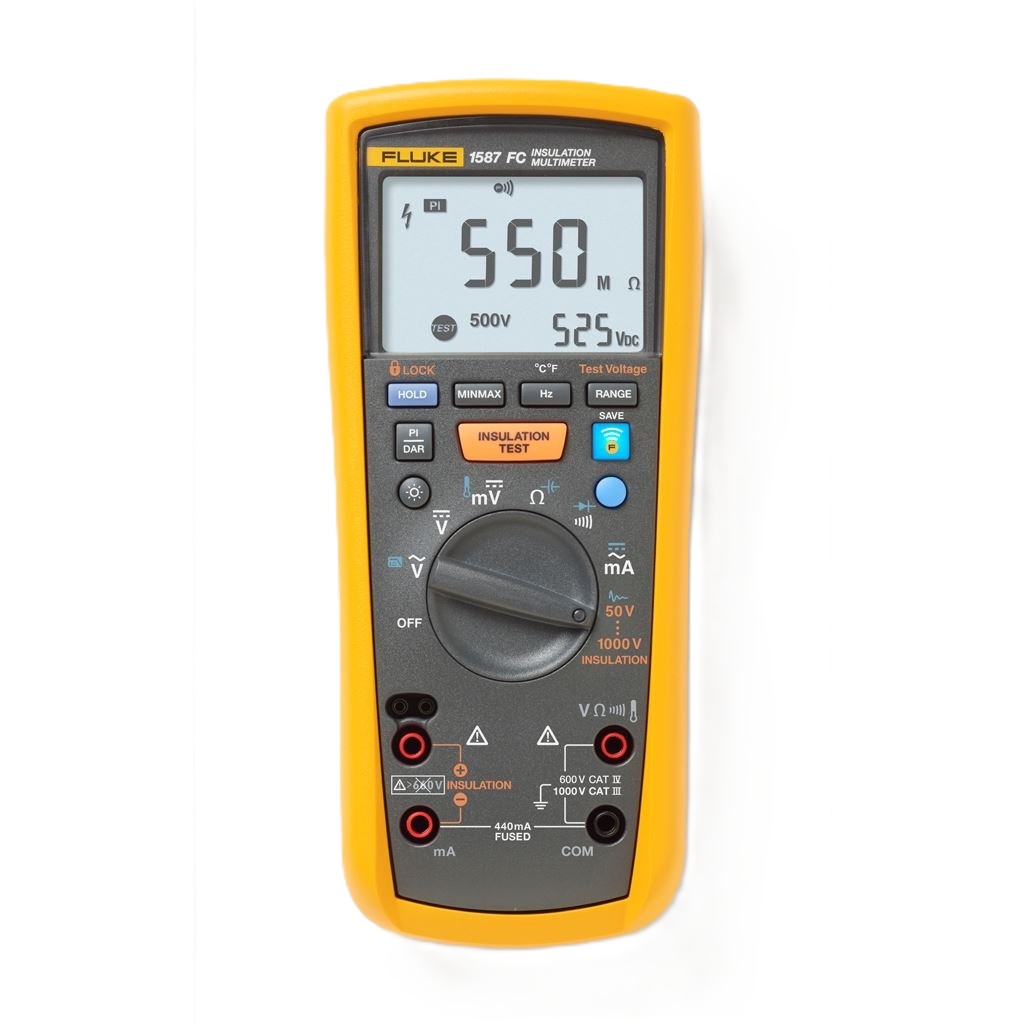

FLUKE-1587 FC Digital Insulation/Multimeter
Features
- The Fluke 1587 FC is a compact digital insulation tester with a full-featured digital TRMS multimeter in one.
- This allows users to perform advanced insulation testing for preventive and predictive maintenance.
- The Fluke 1587 FC insulation multimeter features four powerful new diagnostic functions thanks to the Fluke Connect® Measurements app
- Timed PI/DAR ratio tests with TrendIt™ graphs identify moisture and contaminated insulation issues faster

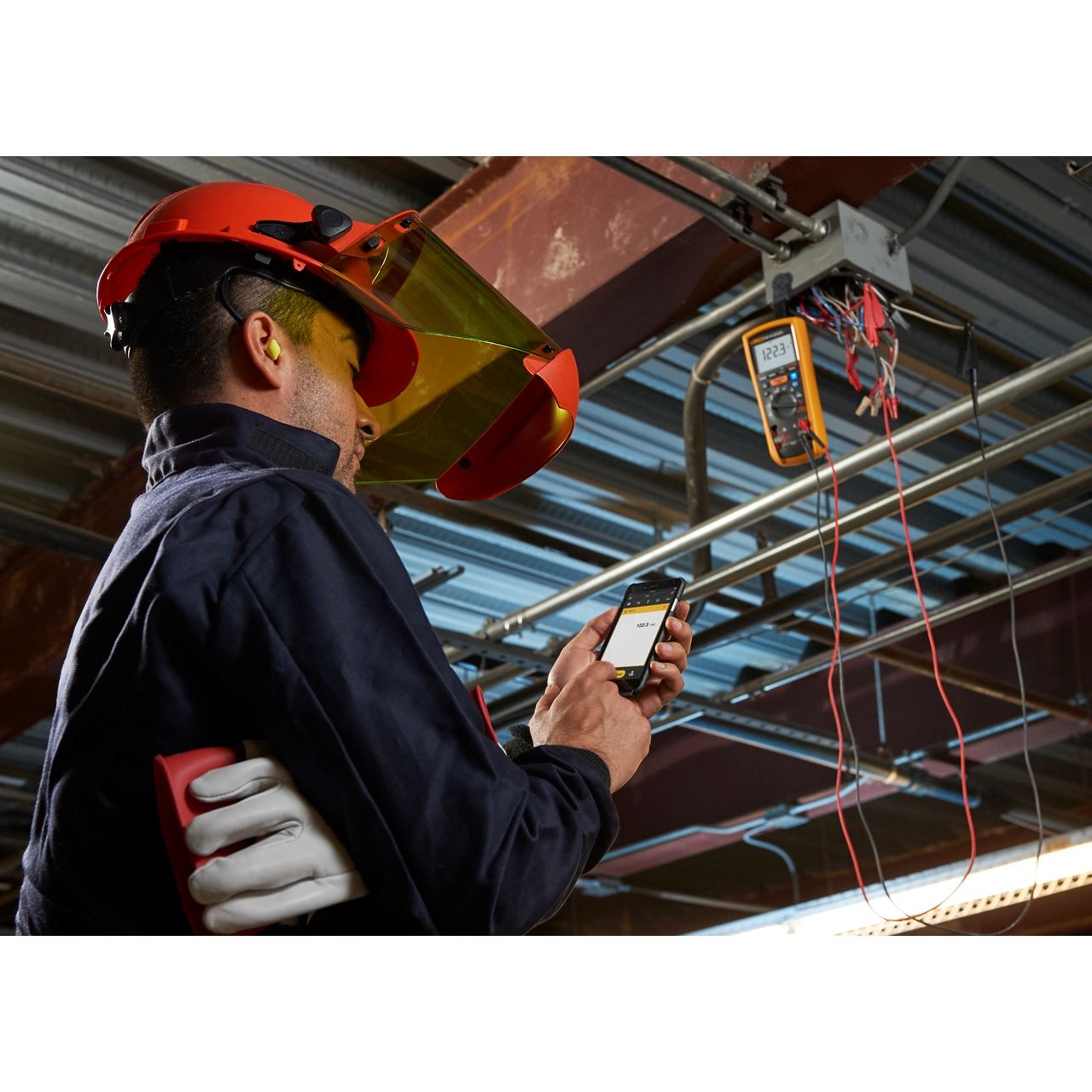

- Memory storage via Fluke Connect eliminates the need to write down results, reduces errors, and stores data
- Temperature compensation via the app for establishing accurate output values and relevant historical comparisons

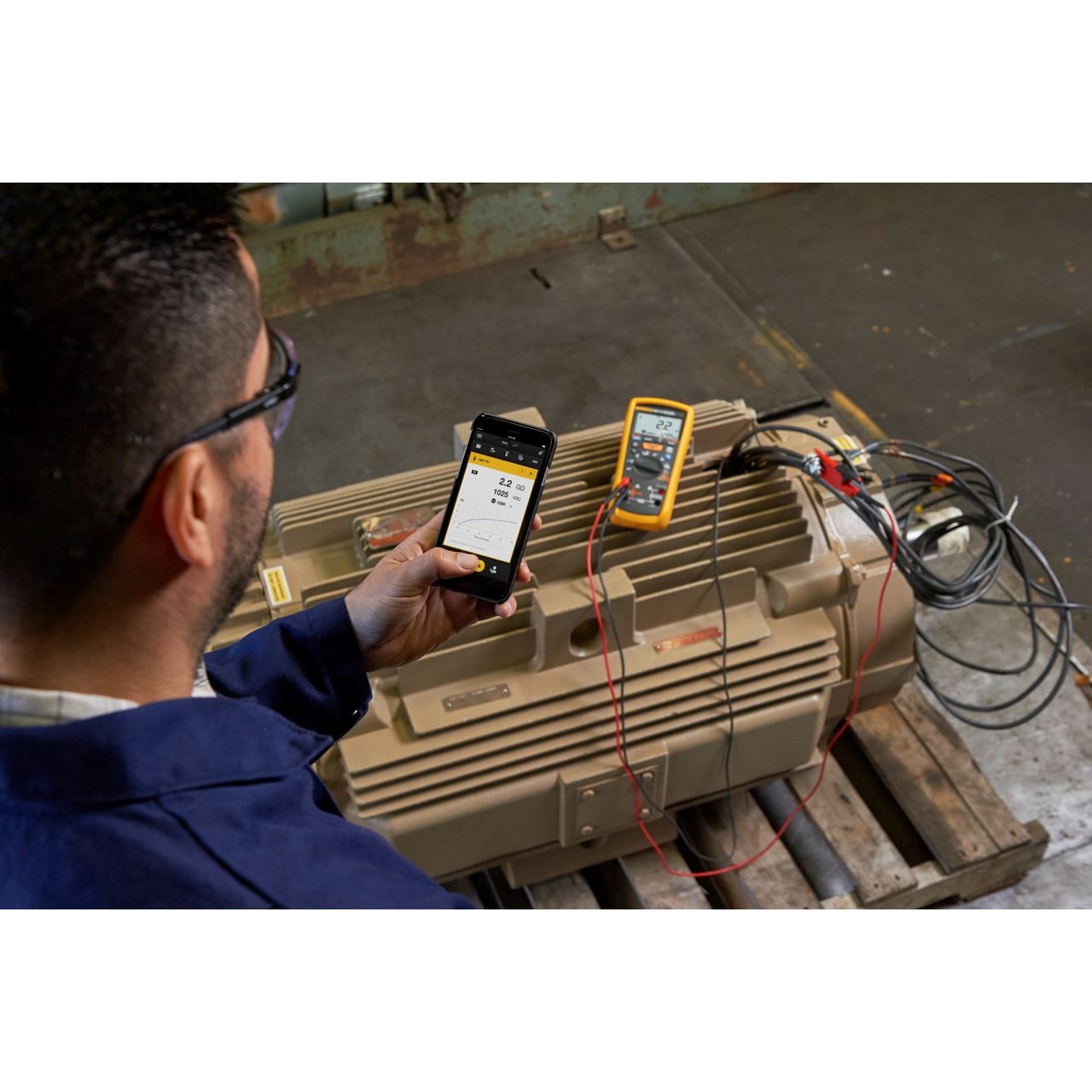

- Historical equipment tracking and trend recording brings detects equipment degradation over time and enables real-time on-site decision-making with Fluke Connect® Assets
Features Fluke 1587 FC
- Live circuit detection prevents insulation tests at voltages > 30 V for added user safety

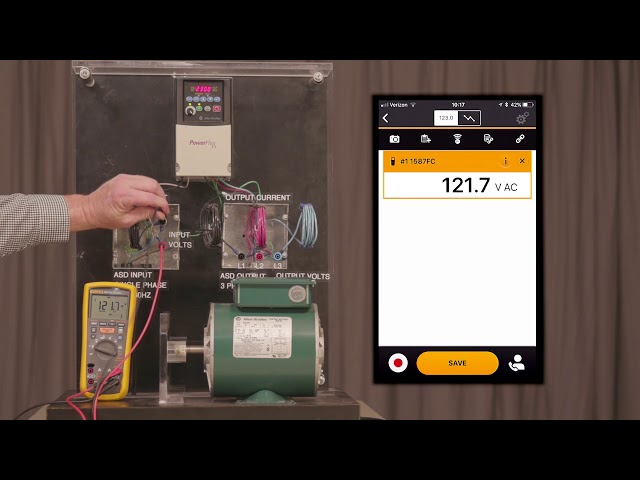

- Low-pass filter for variable frequency drives, for accurate measurements on motor drives
- Automatic discharge of capacitive voltages

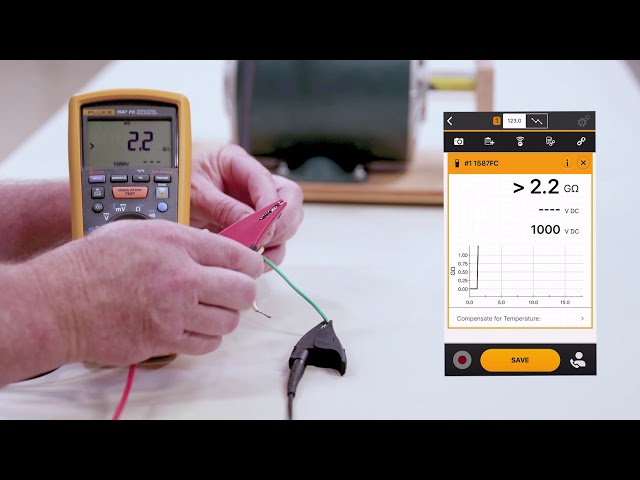

- Insulation test: 0.01 MΩ to 2 GΩ
- Insulation test voltages: 50 V, 100 V, 250 V, 500 V, 1000 V
- AC/DC voltage, DC in millivolts, AC/DC in milliamperes, resistance (0.1 Ω to 50 MΩ), continuity
- Capacity, diode test, temperature, MIN/MAX, frequency (Hz)
- Automatic shutdown
- Large backlit display
- Safety category: CAT III 1000 V, CAT IV 600 V
- 3-year standard warranty, extendable to 5 years by registering the product within 45 days of purchase
Technical data
- Calibrated according to Factory Standard
- Measurement category CAT IV 600 V
- Standards EN 61010â€'1
- Width 100 mm
- Frequency measurement range 0 – 99.99 kHz
- Capacity measurement range 0 – 9999 µF
- Temperature ≤40 to +537 °C
- Acoustic continuity measurement 25 Ω
- Voltage measurement tolerance ± (0.09% vM + 2D)
- Height 203 mm
- Test voltage 50, 100, 250, 500, 1000 V
- Safety type IP40
- Supply voltage 4 AA batteries
- Digital display 5999 digits
- Resistance measurement range 0 – 50 MΩ
- Weight 650 g
- Insulation resistance measurement range 0 to 2 GΩ
- Voltage measurement range 0 ☐
Standard included
- Fluke 1587 FC Isolation Multimeter
- Remote probe
- Test leads
- Alligator clips
- Thermocouple type K
- Carrying case
- User documentation
