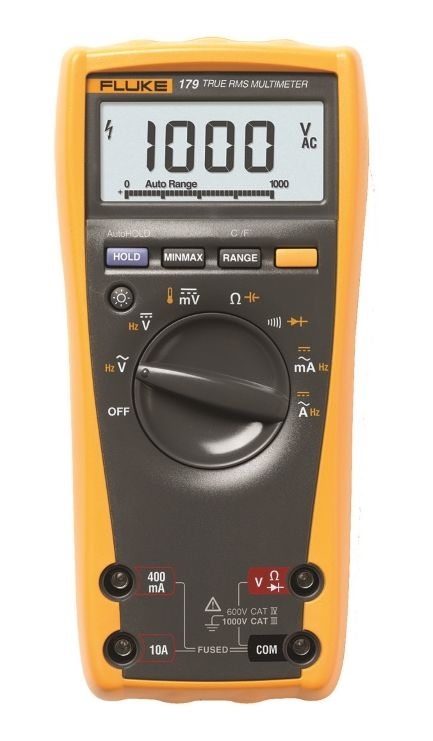

Fluke 179 Multimeter
Special features Fluke 179
- True RMS AC voltage and current measurements
- Basic accuracy of 0.09%
- Resolution 6000 counts
- Digital display with analog bargraph and backlight
- Manual and automatic range setting
- Display Hold and Auto Hold
- Frequency and capacitance measurement
- Resistance measurement, continuity and diode test Temperature measurements
- Min/Max/Average recording
- Smoothing for more stable reading of rapidly fluctuating input signals
- The battery can be easily replaced without opening the housing
- Calibration with closed housing via the front panel
- Ergonomic housing with integrated protective holster
Technical Data
- Fuse 1: FLUKE 943121
- Fuse 2: MMSA030
- Trms Measurements: AC
- Current Measurement: yes
- Backlight: yes
- Analog Bargraph: yes
- Contactless Voltage Detection: no
- Hold Function: yes
- Min Max Function: yes
- Temperature: yes
- Fever Continuity Test: yes
- Diode Test: yes
- Resistance: yes
- Low Impedance Voltage Measurement: no
- Micro Ampere: no
- Low-pass filter: no
- Digits : 6,000
- Display: single
- Bargraph: no
- Trms: TRMS AC
- Trms Voltage Bandwidth: 1 kHz
- Trms Current Bandwidth: 1 kHz
- Best Accuracy Voltage AC: 1.0%+3
- Best Accuracy Voltage DC: 0.09%+2
- Best Accuracy Current AC: 1.5%+3
- Best Accuracy Current DC: 1.0%+3
- Dc Voltage: 1000 V
- Resolution DC Voltage: 0.1 mV
- AC Voltage: 1000 V
- Resolution AC Voltage: 0.1 mV
- Dc Current: 20A (30sec)
- Resolution DC Current: 0.01mA
- AC Current: 20A (30sec)
- Resolution AC Current: 0.01mA
- Temperature Measurement Principle: Type K
- Temperature Measurement Range: 400 C
- Measurement Functions Resistance: 0.1W…50MW
- Measurement Functions Continuity Test: yes
- Measurement Functions Frequency: 10 kHz
- Measurement Functions Decibel Measurement Db: no
- Measurement Functions Capacitance: 1 nF to 9999 µF
- Measurement Functions Contactless Voltage Detection: no
- Memory: min max avg
- Safety: CAT IV 600V; CAT III 1000V
- Ip Value: NS
- Power supply: 1 x 9V
- Weight: 420 g
Supplied as standard
- battery
- In box
