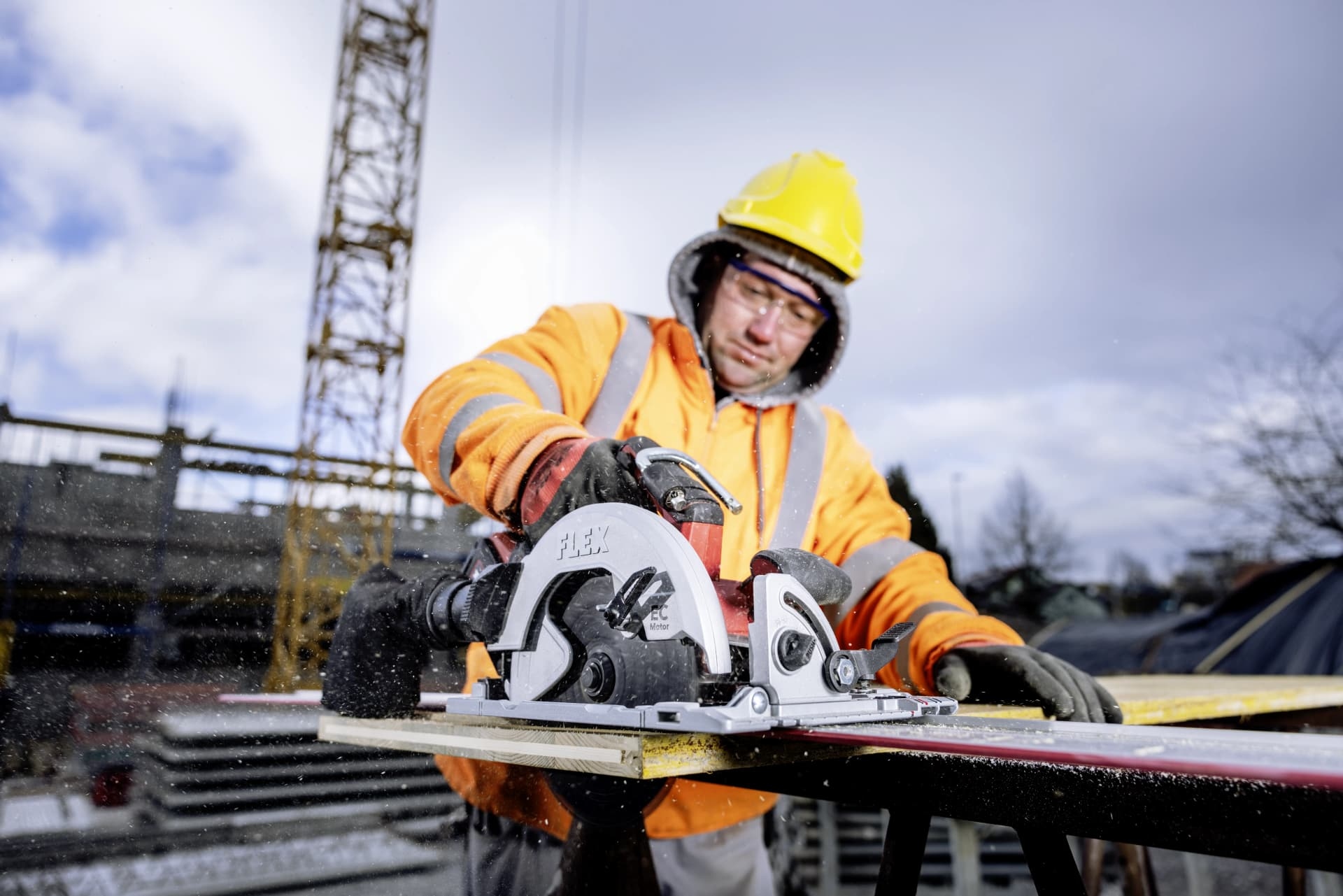

Flex-tools 532637CS 68 18-EC Cordless Handheld Circular Saw with Pendulum Guard 18 V excl. Battery and charger in case
Special features
- Ideal for classic applications in drywall construction, e.g. sawing gypsum boards, concrete fiber boards, and wood types such as chipboard and OSB boards
- Angle scale from 0° to 56°. With angle settings of 22.5°/45° and 56°. Easy to read and precisely adjustable thanks to the long clamping lever
- High-quality protective guard and skid plate made of injection-molded magnesium
- Straight, splinter-free, and powerful cuts thanks to the use of guide rails. The grooves of the guide rails are located directly in the base plate. Compatible with FLEX and other systems
- Brushless motor with higher efficiency and longer service life
- 18 V EC motor with overload protection and temperature monitoring
- Electronic Management System (EMS) protects the machine, extends service life, and increases efficiency
- Motor brake stops the saw blade in 2 seconds
- Integrated LED light for optimal illumination of the work area.
- Spindle lock: for quick saw blade changes
- With metal hook for flexible attachment
- Connection option for external dust extraction with Ø 27, 36 mm
- Chip collection bag for working with less dust, easy to empty
- Battery capacity indicator
- FLEX battery system: compatible with all FLEX 18 V battery packs. Delivery excludes battery, charger
Technical data
- Battery voltage: 18 V
- Battery capacity: 2.5 / 5.0 / 8.0 Ah
- Sawing depth: 0-68 mm
- Mitre cut cutting depth (45°): 0-50 mm
- Saw blade diameter: 190 mm
- Saw blade mounting hole: 20 mm
- Swivel range: 0.56 °
- Angle preset: 0 / 22.5 / 45 °
- Dimensions LxWxH: 352 x 200 x 273 mm
- Weight without battery pack: 4.3 kg
Scope of delivery
- 1× Standard circular saw blade with Alternating gearing (532703)
- 1× Parallel stop
- 1× Dust bag
- 1× Transport case L-BOXX® (414107)
- 1× Case insert (533167)
