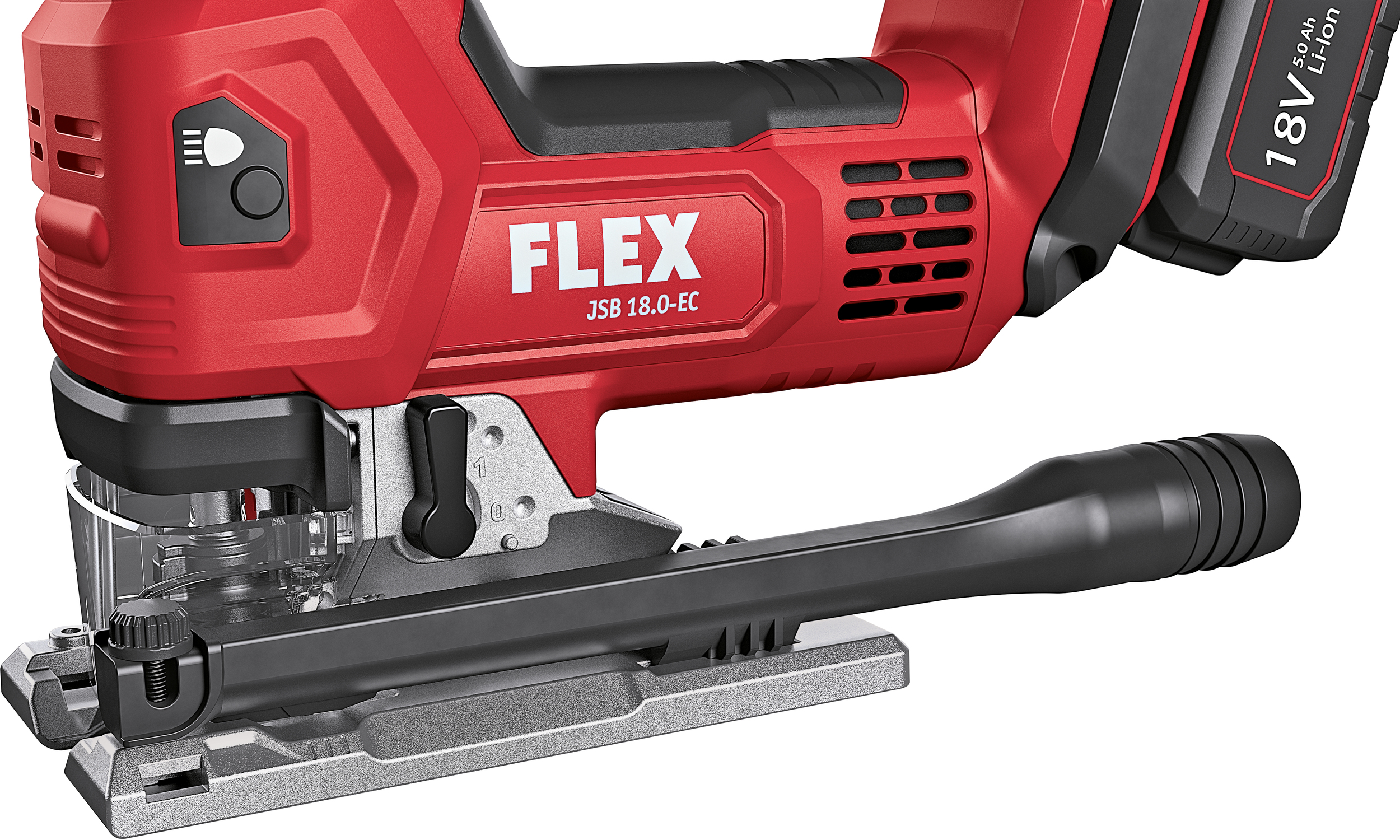

Flex-tools 493783 JSB 18.0-EC 18V Cordless Jigsaw excl. Battery and charger in case
Special features
- New generation brushless motors with high power and high efficiency

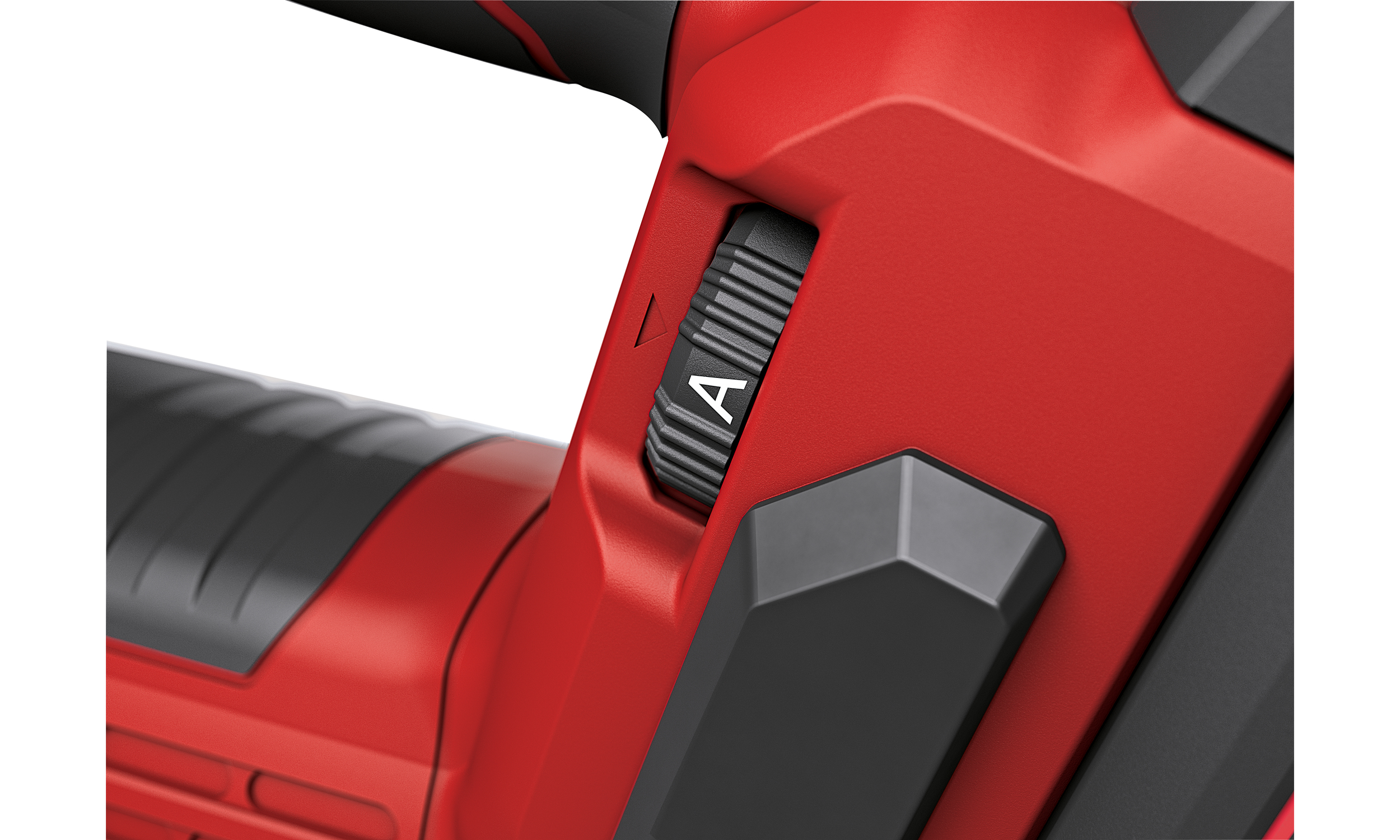

- Stepless adjustment of the sawing speed via adjustment wheel with automatic start in the “A” position
- Electronic switch operable from both sides
- Tool-free saw blade change thanks to the quick-release system and ejection function
- Pendulum movement: 4-stage for high sawing performance
- Saw blade guide with double rollers for precise, exactly perpendicular cuts
- Clear view of the cutting line thanks to integrated blower function
- Perfect ergonomics thanks to optimally positioned SoftGrip surfaces
- Vibration-free and comfortable sawing
- Saw table adjustment for miter cuts up to 45°, 0-lock. Slides backwards for sawing flush along the edge
- Stable saw base with removable plastic skid pad for protecting sensitive surfaces
- Electronic Management System (EMS) protects the machine, extends service life and increases efficiency
- With automatic start, overload protection
- Extraction nozzle Ø 27 mm, for a clean workshop and clear view of the cutting line
- Removable anti-splinter guard, for splinter-free cuts and for guiding the saw blade
- Integrated LED light for optimal illumination of the work area.
- Battery capacity indicator
- FLEX battery system: compatible with all FLEX 18 V battery packs. Delivery excludes battery, charger
Technical data
- Battery voltage: 18 V
- Battery capacity:2.5 / 5.0 / 8.0 Ah
- No-load stroke rate: 0 - 3500 1/min
- Stroke: 26 mm
- Pendulum stroke settings: 4 settings
- Speed settings: 1-5 +A settings
- Swivel range: 0-45 °
- Max. material thickness wood: 120 mm
- Max. Material thickness metal: 8 mm
- Dimensions LxWxH: 240 x 77 x 220 mm
- Weight without battery pack: 2.1 kg
Scope of delivery
- Foot pad JS/JSB-SC (490237)
- Allen key, SW 4 (102229)
- Splinter protection JS/JSB-P VE3 (490229)
- Dust extraction SAD JS/JSB D27 (490245)

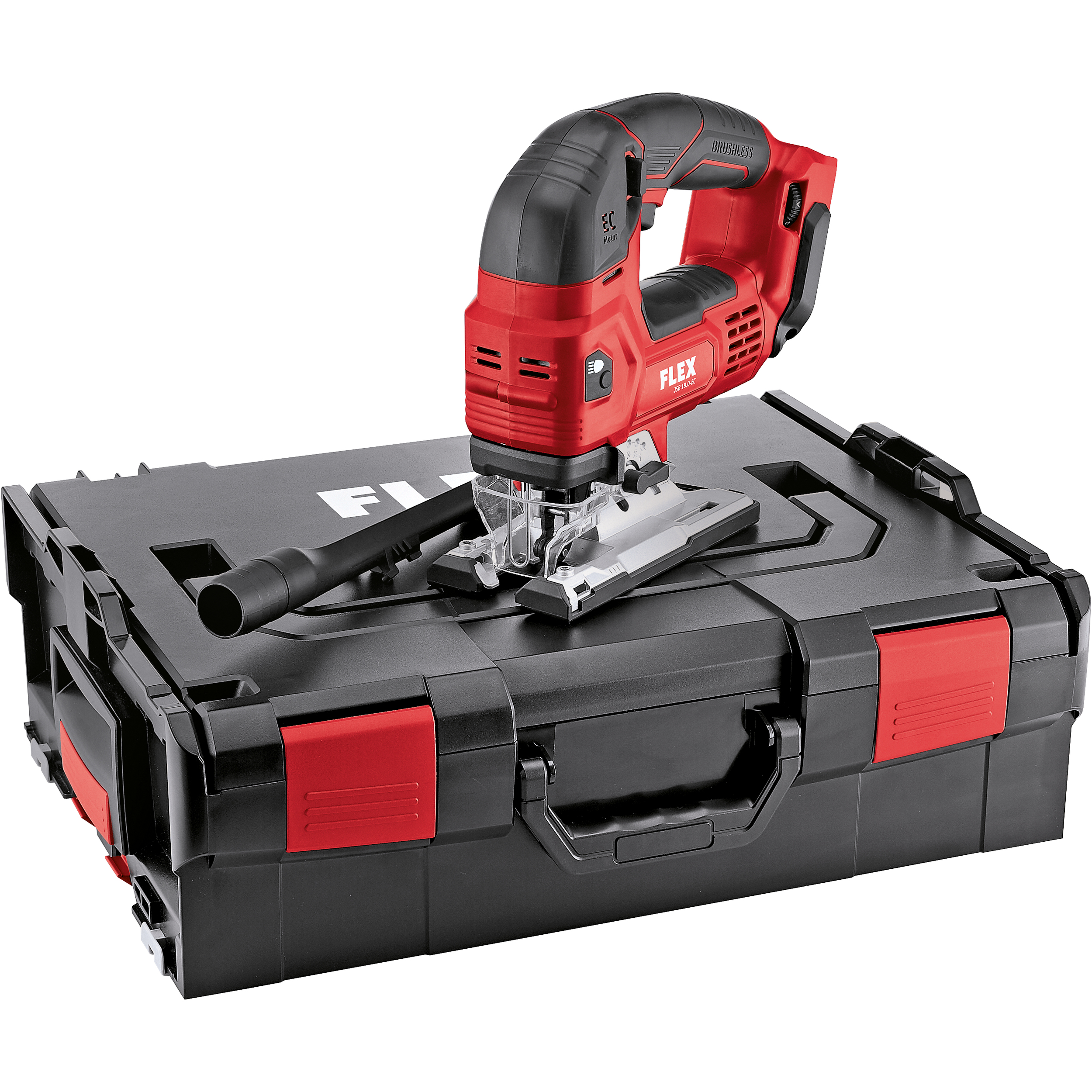

- Case TK-L 136 (414085)
- Insert TKE JSB 18.0-EC (502316)
- Splinter protection closed
