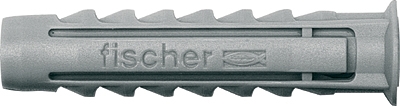

Fischer 70014 Plug SX 14 x 70 with collar 20 pieces
Thanks to the quadruple expansion, the Fischer Plug SX optimally conducts forces into the building material. In addition to the typical expansion, the high-quality nylon used in production also guarantees a reliable and long-lasting fastening. The rim at the head prevents the plug from slipping into the drill hole.
Advantages
- The 4-way expansion offers optimal force distribution in the material and provides high load-bearing capacity in solid and hollow building materials
- The expansion-free plug collar prevents the creation of expansion pressure forces on the material surface during screw insertion. This prevents damage to plaster and tiling. The protruding collar prevents the plug from slipping in the drill hole, thereby enabling easy installation. Applications: Concrete: Perli>
- Perforated brick: Hollow lightweight concrete block: Hollow building block; Brick and concrete floors: Perforated sand-lime brick: Solid sand-lime brick: High-density natural stone: Cellular concrete: Gypsum blocks: Solid lightweight concrete brick: Solid brick: Building materials: The SX with rim is suitable for through-hole mounting. When screwing in the screw, the SX expands in four directions, thereby becoming securely anchored in the material. The required screw length is as follows. specified: length of the plug + thickness of the mounting piece + 1 x the diameter of the screw
- Suitable for Fischer ASL wood, chipboard, and spacer screws.
Technical data
- Drill hole diameter: 14 mm
- Min. drill hole depth: 90 mm
- Plug length: 70 mm
- Chipboard screw: 10 - 12 mm
- Content: 20
